Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

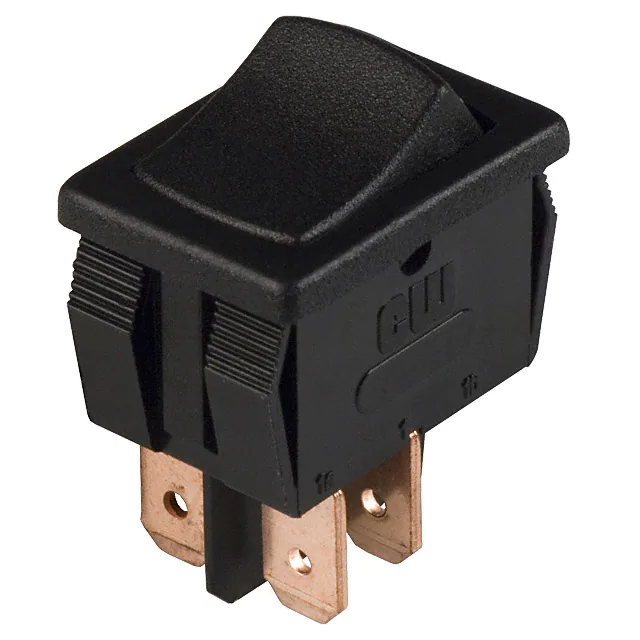

GRS-4021B-0000SWITCH ROCKER DPST-NO 13A 125V |
15,587 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
RA11531100SWITCH ROCKER SPDT 10A 125V |
7,232 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RD151C112FSWITCH ROCKER SPST 16A 125V |
2,146 |
|
Datasheet |
RD1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 6.80mm | -20°C ~ 105°C | cULus, UL |
|

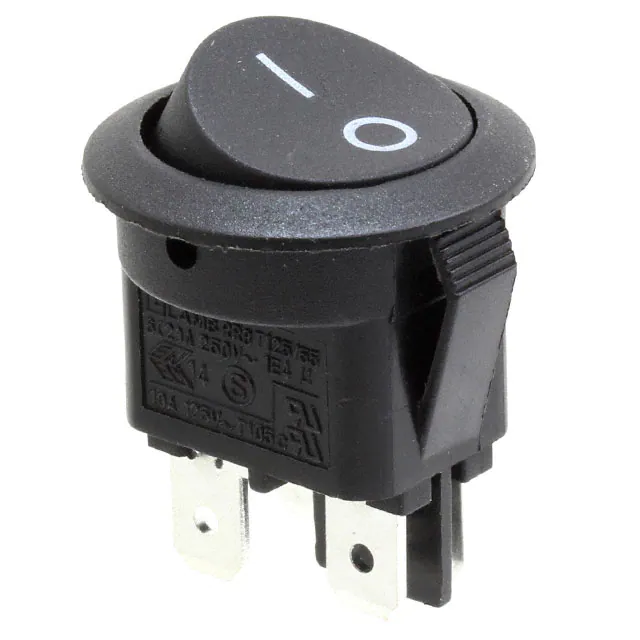

RR81231121SWITCH ROCKER DPST 10A 125V |
7,396 |
|
Datasheet |
RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RA1122CWCSWITCH ROCKER SPST 15A 125V |
3,364 |
|
Datasheet |
RA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | - | -40°C ~ 105°C | cULus |
|
RRG38431100SWITCH ROCKER SPST-NO 10A 125V |
2,511 |
|
Datasheet |
RRG3, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RRG31C31100SWITCH ROCKER SPDT 10A 125V |
8,016 |
|
Datasheet |
RRG3, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|

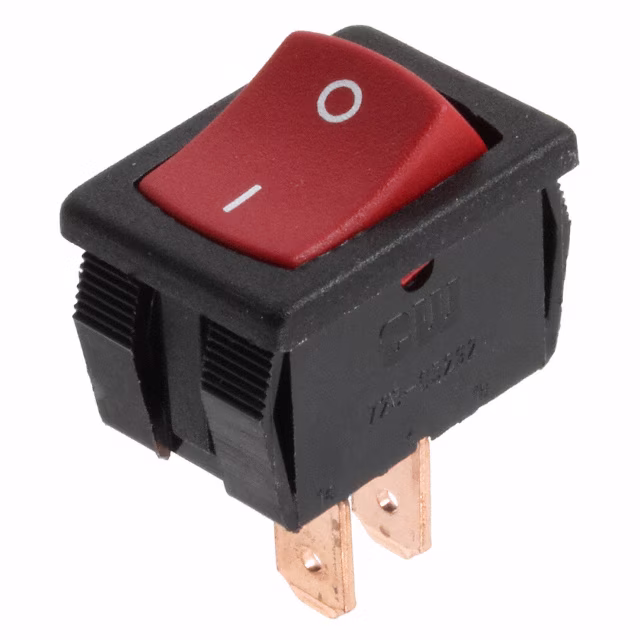

GRS-4011-0146SWITCH ROCKER SPST 13A 125V |
2,168 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 13A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
SW-R1-1A-E-LG13-0SWITCH ROCKER SPST 20A 125V |
424 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.00mm x 10.00mm | -25°C ~ 85°C | - |
|

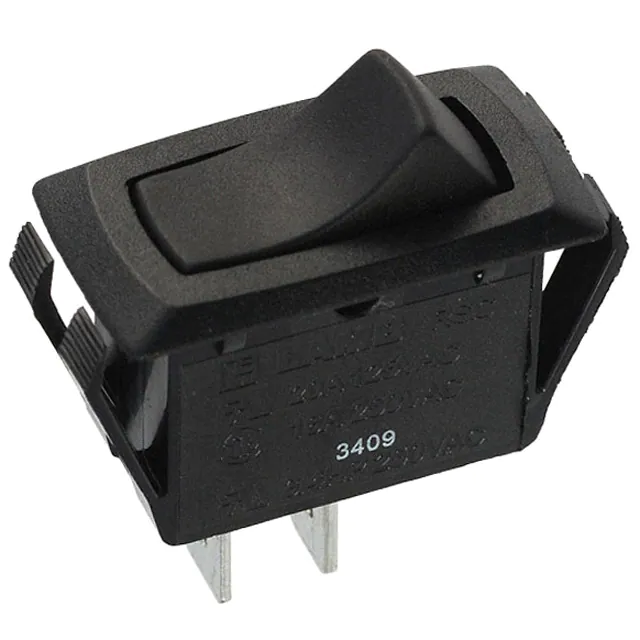

RSC141D1100SWITCH ROCKER SPST 20A 125V |
17,945 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|

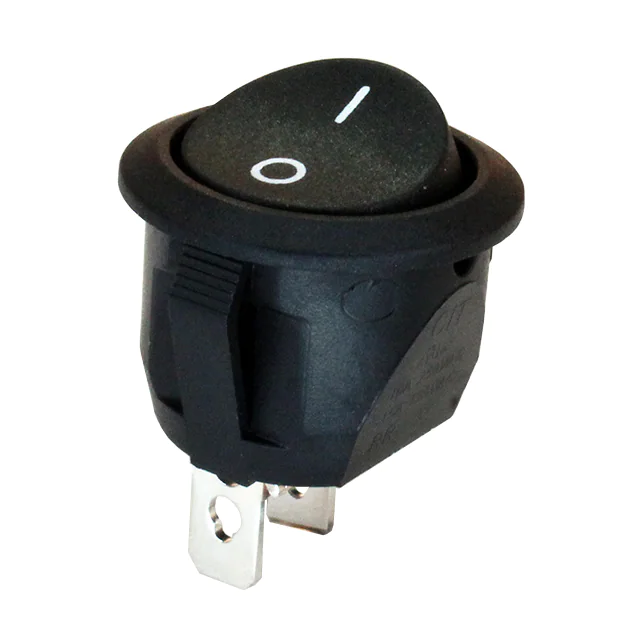

RR11122CWCSWITCH ROCKER SPST 15A 125V |
2,818 |
|
Datasheet |
RR1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -40°C ~ 105°C | - |
|
|
SW-R2-2E-F-6-8SWITCH ROCKER SPDT 10A 125V |
305 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
GRS-4011B-1300SWITCH ROCKER SPST-NO 13A 125V |
3,279 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

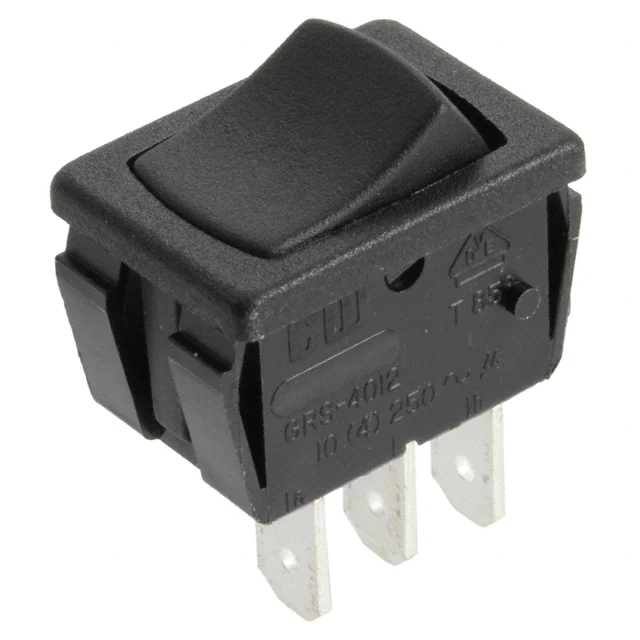

GRS-4012-0048SWITCH ROCKER SPDT 16A 125V |
606 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Polarized | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

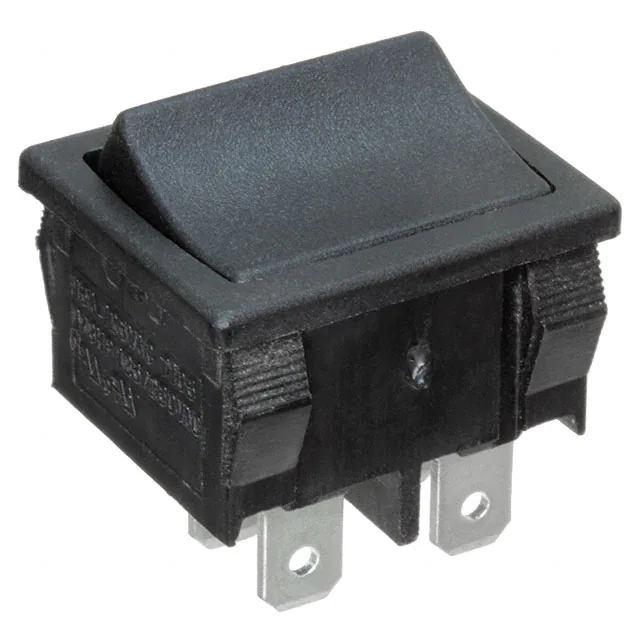

RA412C1100SWITCH ROCKER DPST 16A 125V |
1,248 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|

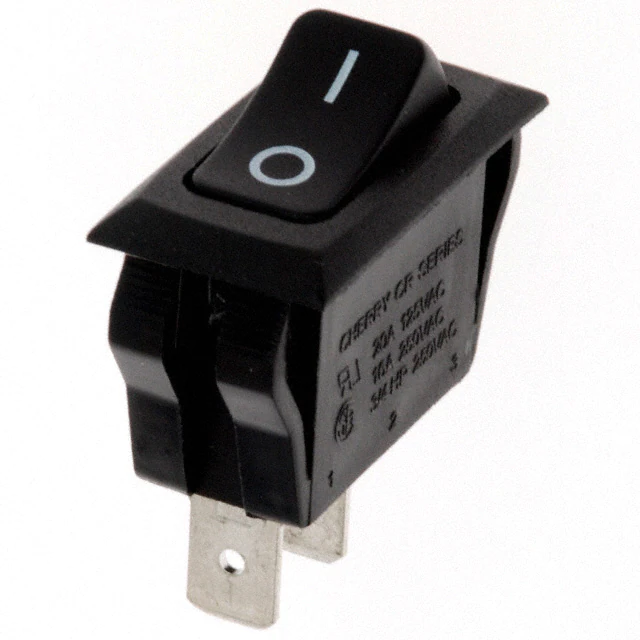

CRE22F4FBBNESWITCH ROCKER SPST 20A 125V |
79,850 |
|
- |
CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
RR111C1121SWITCH ROCKER SPST 16A 125V |
4,891 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
|
RR111C1921SWITCH ROCKER SPST 16A 125V |
1,329 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|

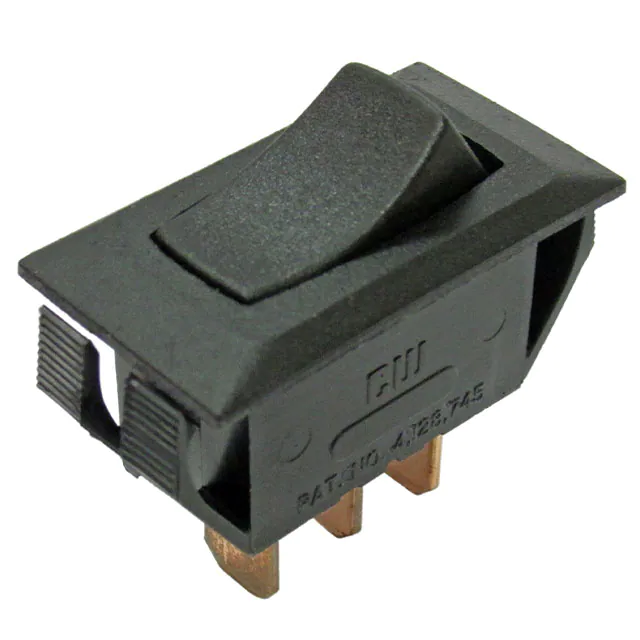

GRS-2012-3000SWITCH ROCKER SPDT 16A 125V |
552 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.23mm x 12.19mm | -20°C ~ 105°C | - |
|

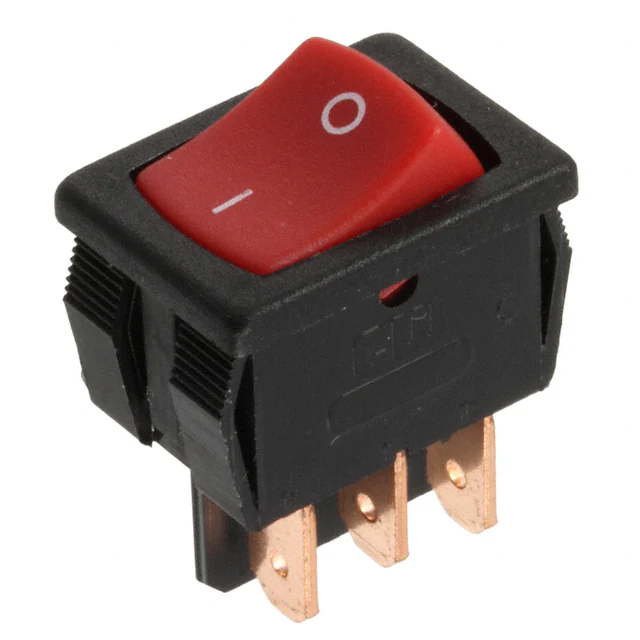

GRS-4012-0066SWITCH ROCKER SPDT 13A 125V |
240 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 13A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
