Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRD2-2G-DC-1-BNNSWITCH ROCKER DPDT 21A 125V |
1,924 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2G-DC-1-BNNSWITCH ROCKER DPDT 21A 125V |
981 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2B-DC-1-RNNSWITCH ROCKER DPST-NO 21A 125V |
500 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2D-DC-1-RNNSWITCH ROCKER DPDT 21A 125V |
496 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2D-DC-1-BNNSWITCH ROCKER DPDT 21A 125V |
488 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-1F-DC-1-BRRSWITCH ROCKER SPDT 21A 14V |
486 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2D-DC-1-BNNSWITCH ROCKER DPDT 21A 125V |
472 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2G-DC-1-RNNSWITCH ROCKER DPDT 21A 125V |
458 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -25°C ~ 85°C | - |
|
SRD2-2G-DC-1-RNNSWITCH ROCKER DPDT 21A 125V |
448 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|

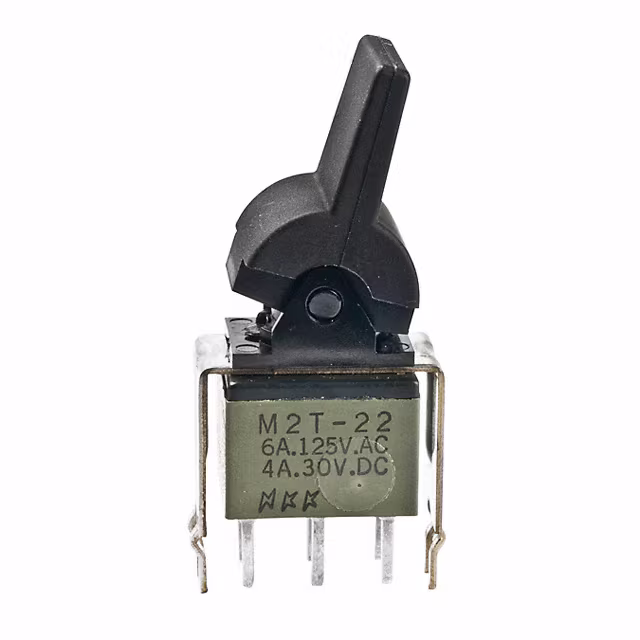

M2T22TXW13SWITCH ROCKER DPDT 6A 125V |
209 |
|
Datasheet |
M2 | Box | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
SRD1-2D-DC-1-RNNSWITCH ROCKER DPDT 21A 125V |
492 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2A-DC-1-BGNSWITCH ROCKER DPST 21A 14V |
489 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2A-DC-1-BANSWITCH ROCKER DPST 21A 14V |
487 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2A-DC-1-BRNSWITCH ROCKER DPST 21A 14V |
483 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2A-DC-1-BANSWITCH ROCKER DPST 21A 14V |
479 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2A-DC-1-BGNSWITCH ROCKER DPST 21A 14V |
423 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2A-DC-1-BRNSWITCH ROCKER DPST 21A 14V |
297 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
M2012TXW13/CUL-DABRACKET PC MOUNT MINIATURE ROCKE |
700 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | CSA, UL |
|
SRD2-2F-DC-1-BNNSWITCH ROCKER DPDT 21A 125V |
574 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2F-DC-1-RNNSWITCH ROCKER DPDT 21A 125V |
500 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
