Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

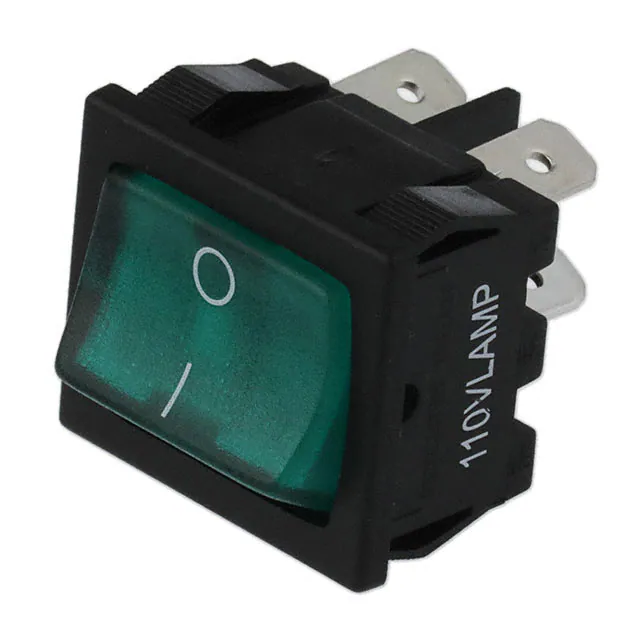

H8653VBBG2577WSWITCH ROCKER DPST 6A 277V |
233 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 277 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
2647LH/2A212000L0SWITCH ROCKER DPDT 10A 125V |
119 |
|
Datasheet |
2600 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (AC), 8A (DC) | 125 V | 24 V | Flat | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UL, VDE |
|
JWL21RC2ASWITCH ROCKER DPST 16A 125V |
122 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

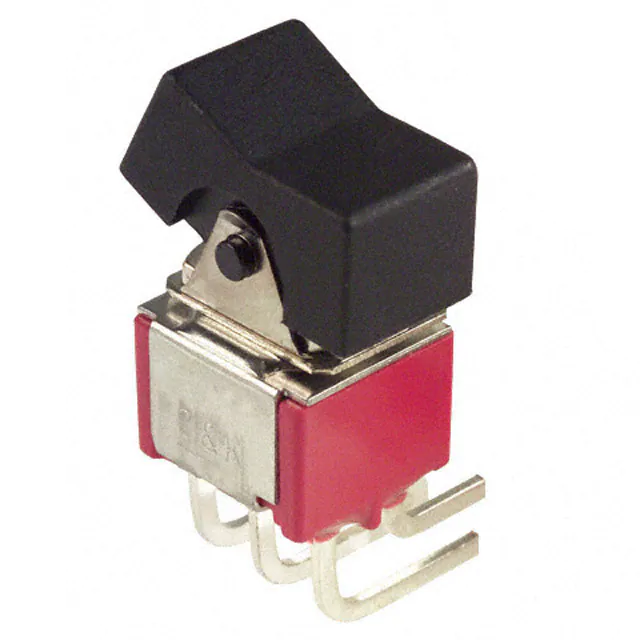

7201J1AQE2SWITCH ROCKER DPDT 5A 120V |
127 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
JWLW21RC2ASWITCH ROCKER DPST 16A 125V |
110 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 30.70mm x 20.50mm | -25°C ~ 85°C | CSA, UL, VDE |
|
WR11AF/CULSWITCH ROCKER SPST 15A 125V |
2 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
7105J19ZQE22SWITCH ROCKER SPDT 5A 120V |
500 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 38.74mm x 16.46mm | -30°C ~ 85°C | cULus |
|
9221J1Z4QD2SWITCH ROCKER DPDT 10A 125V |
308 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

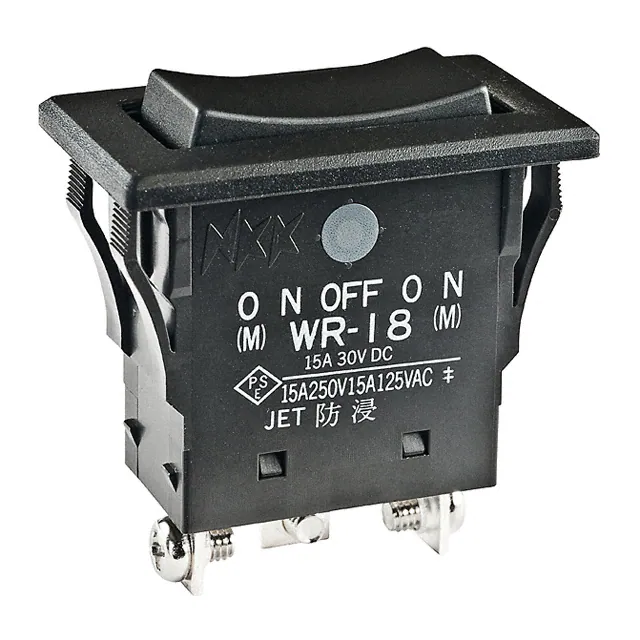

WR18ATNSWITCH ROCKER SPDT 15A 125V |
155 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

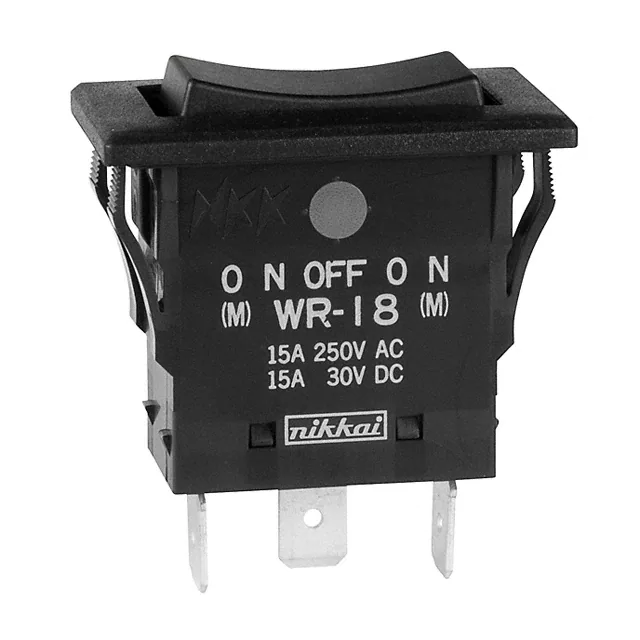

WR18AFSWITCH ROCKER SPDT 15A 125V |
160 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
TRD23N10QC04SWITCH ROCKER DPDT 3A 125V |
466 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
KR49CAKXXGSWITCH ROCKER DPDT 10A 24V |
144 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
SW3821/USWITCH ROCKER DPST 30A 125V |
16 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
SW3821/CULSWITCH ROCKER DPST 30A 125V |
130 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

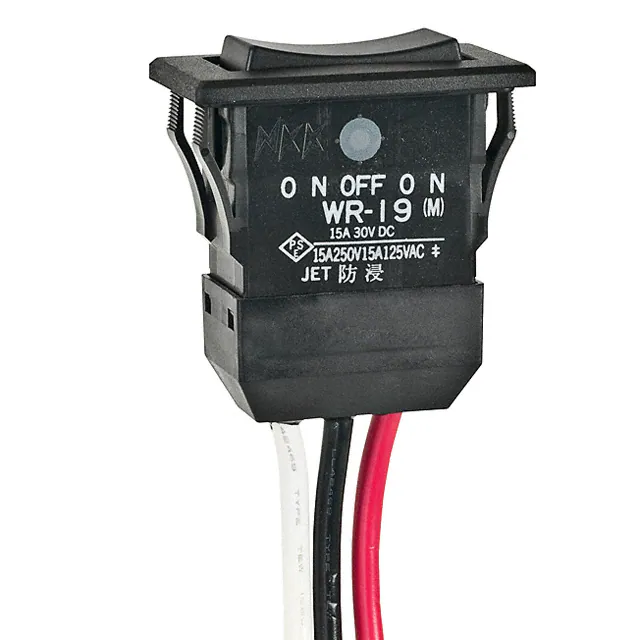

WR19ALSWITCH ROCKER SPDT 15A 125V |
5 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

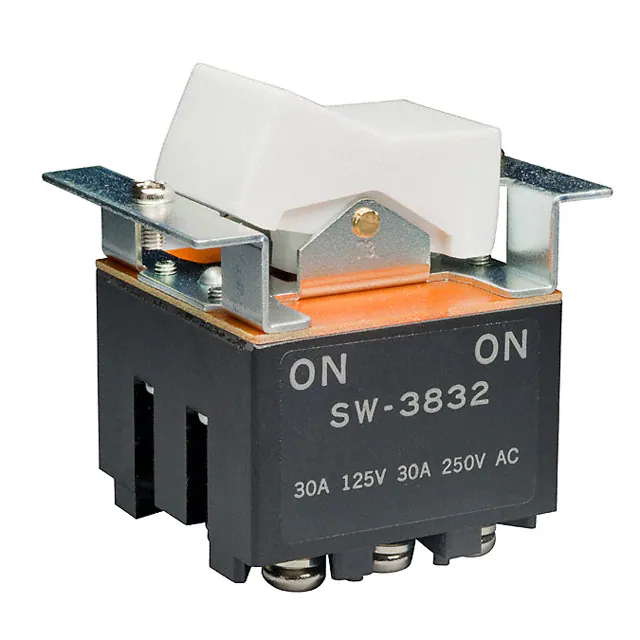

SW3832SWITCH ROCKER 3PDT 30A 125V |
184 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
AML24GBA2CA04SWITCH ROCKER DPDT 3A 125V |
91 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
2TP201-1SWITCH ROCKER DPDT 15A 125V |
46 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
RRG38131100SWITCH ROCKER SPST 10A 125V |
2,365 |
|
Datasheet |
RRG3, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RRG35534400SWITCH ROCKER SPDT 10A 125V |
3,937 |
|
Datasheet |
RRG3, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Round | Gray | No Marking | - | - | Solder Lug | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
