Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

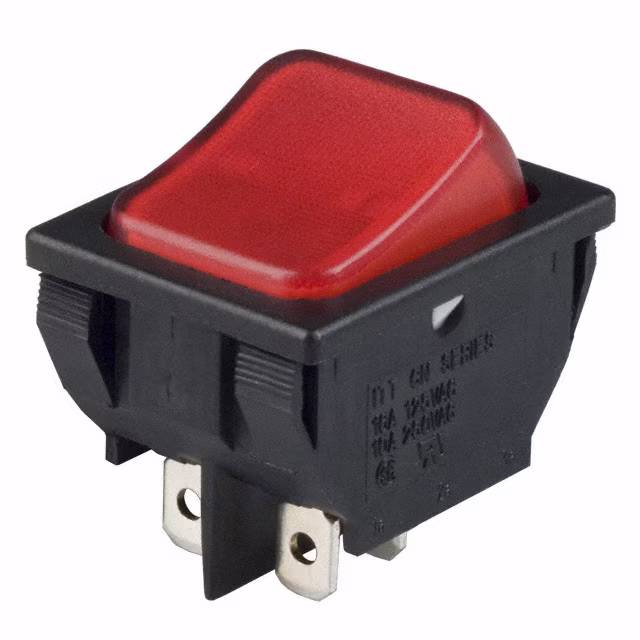

CN202J3RS215Q8SWITCH ROCKER DPST 16A 125V |
1,486 |
|
Datasheet |
CN | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|

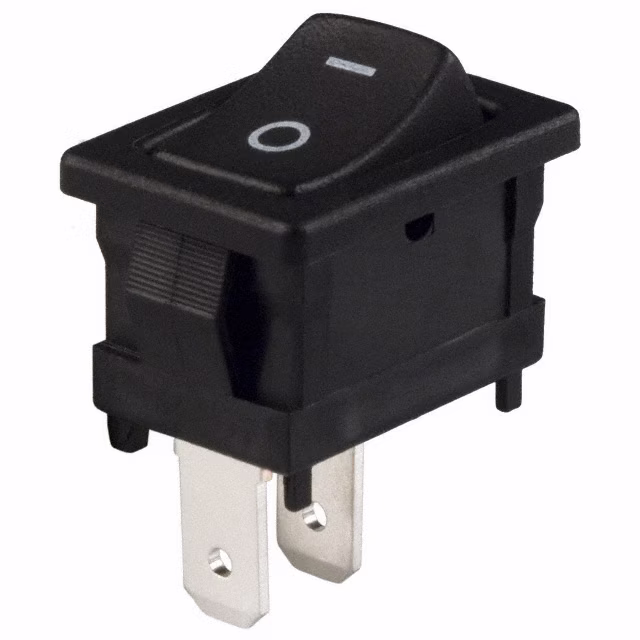

D502J12S215HQASWITCH ROCKER SPST 10A 125V |
403 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

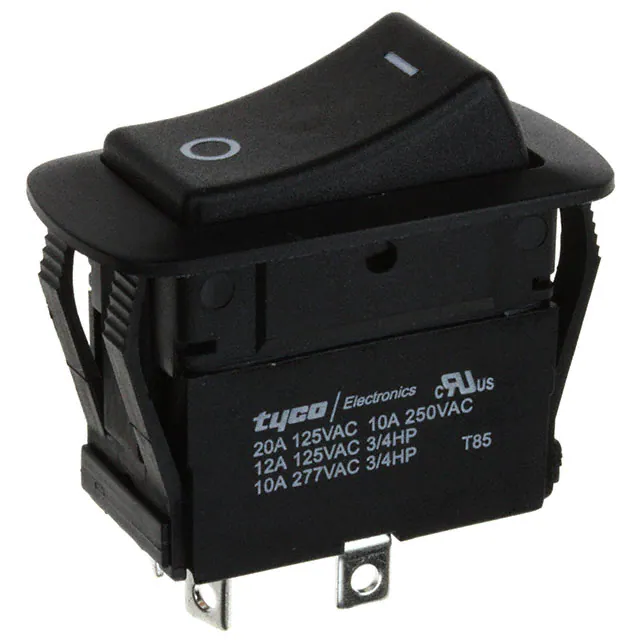

1571102-6SWITCH ROCKER DPST 20A 125V |
252 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|

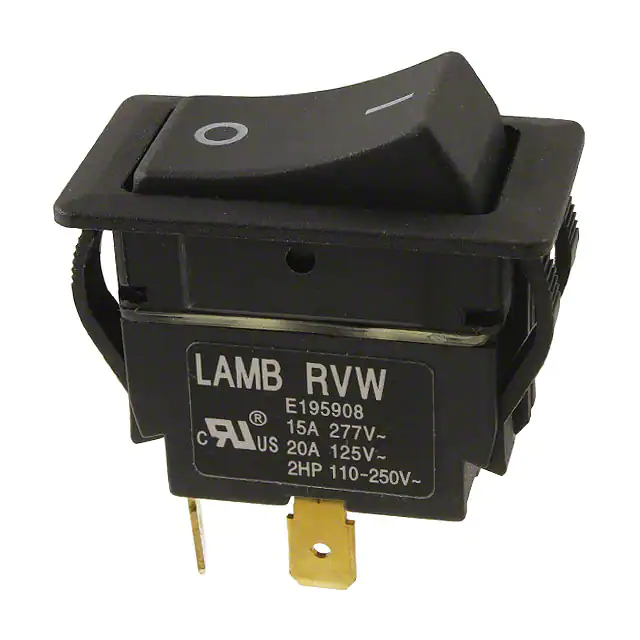

RVW41D1121SWITCH ROCKER SPST 20A 125V |
917 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|

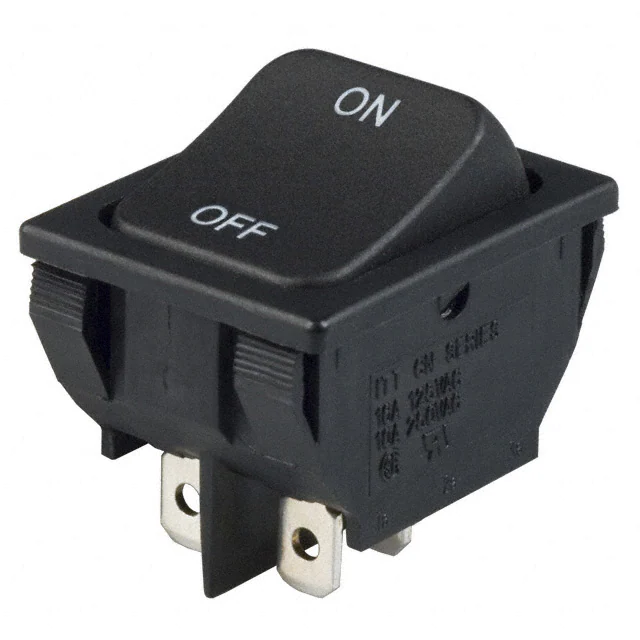

CN202J12S215DQSWITCH ROCKER DPST 16A 125V |
275 |
|
Datasheet |
CN | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|
C6053ALNAMSWITCH ROCKER DPST 20A 277V |
1,048 |
|
Datasheet |
6050 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

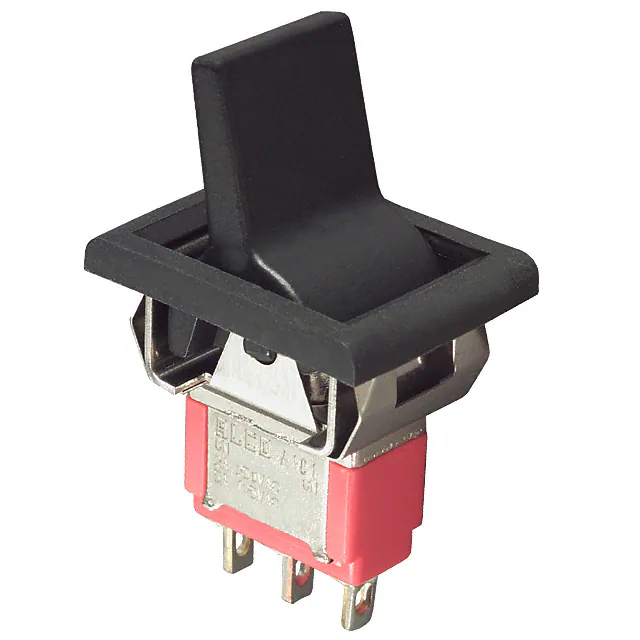

3-1571986-6SWITCH ROCKER SPDT 5A 120V |
519 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|

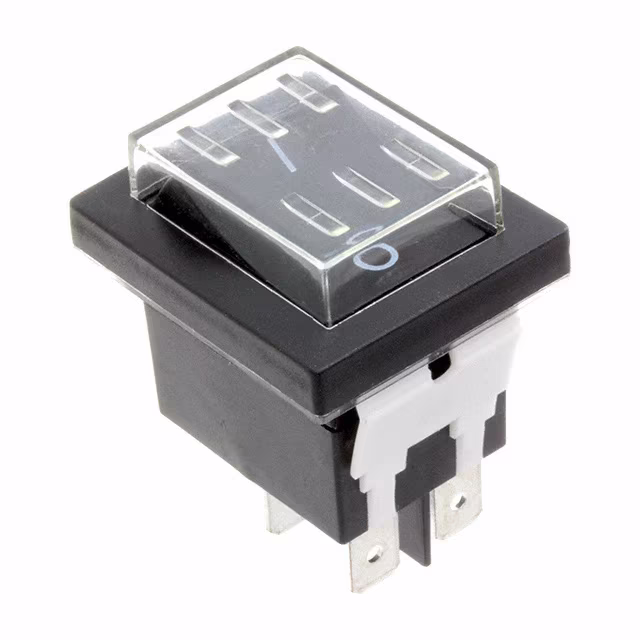

WB24ED1121-ACC-KF05SWITCH ROCKER DPST-NO 20A 125V |
759 |
|
Datasheet |
WB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | CE, cULus, TUV |
|

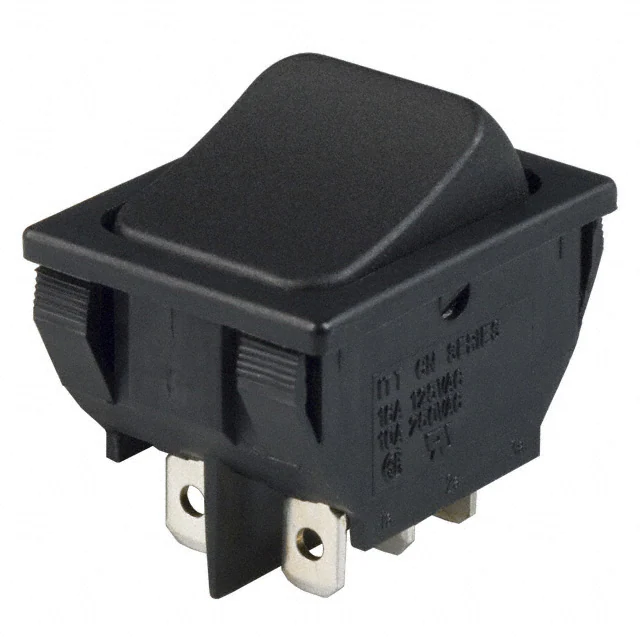

CN201J12S215QSWITCH ROCKER DPDT 16A 125V |
802 |
|
Datasheet |
CN | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|
C1350ARBBSWITCH ROCKER DPST-NO 20A 250V |
392 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 25.40mm | - | CSA, UL |
|
D602J12S206DQASWITCH ROCKER DPST 10A 125V |
826 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | PC Pin | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
C1350ALBBXEL1SWITCH ROCKER DPST-NO 20A 250V |
375 |
|
Datasheet |
1350 | - | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (DC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | - | CSA, UL |
|
RVW4ED1100SWITCH ROCKER DPST-NO 20A 125V |
152 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
JWS11RAASWITCH ROCKER SPST 6A 125V |
116 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
|
RBW2ABLKGILFF2SWITCH ROCKER DPST 16A 125V |
1,017 |
|
Datasheet |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|

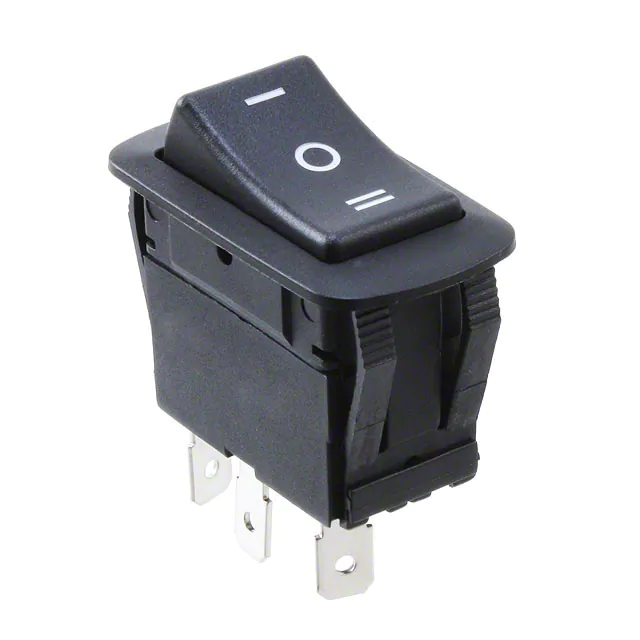

KGC2CNB1BBNSWITCH ROCKER SPDT 20A 125V |
317 |
|
- |
KG | Box | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|

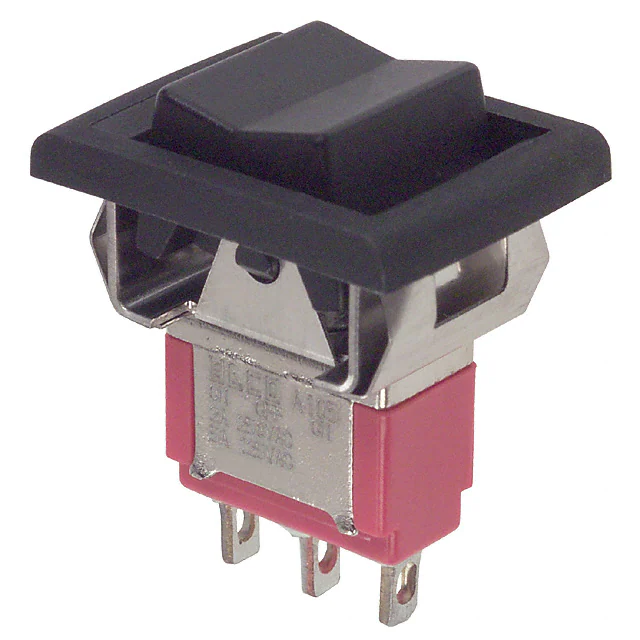

6-1571986-1SWITCH ROCKER SPDT 5A 120V |
405 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|

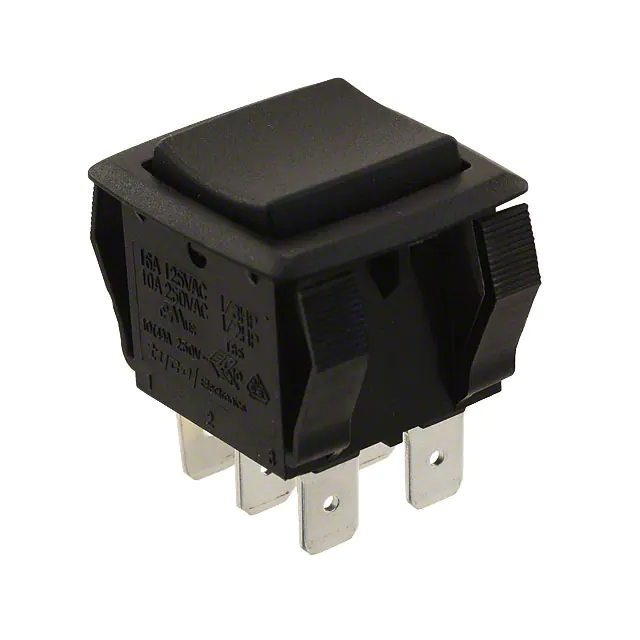

PRDDD3-16F-BB000SWITCH ROCKER DPDT 16A 125V |
1,476 |
|
Datasheet |
PRD | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 25.40mm | -20°C ~ 85°C | UL |
|
D601J12S215QASWITCH ROCKER DPDT 10A 125V |
336 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|

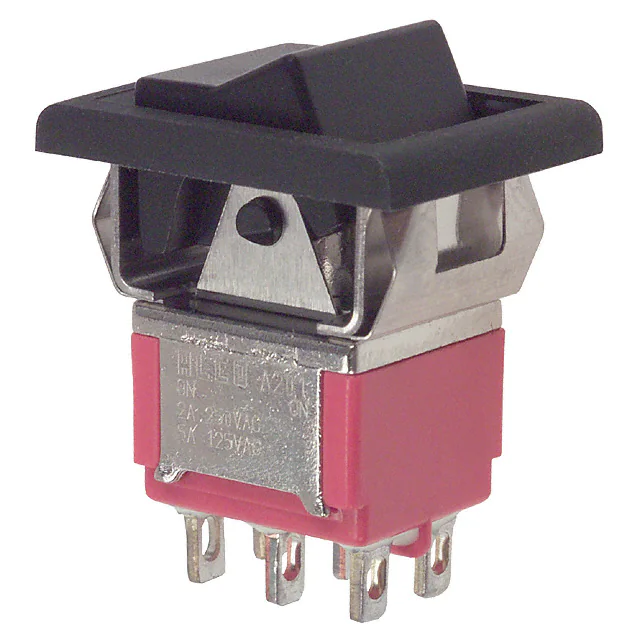

1-1571987-5SWITCH ROCKER DPDT 5A 120V |
133 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 12.70mm | -30°C ~ 85°C | - |
