Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRGSEK511-R-S-B-0/012VSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
LRG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -40°C ~ 85°C | CSA, UL |
|
|
1M1-DP1-R1/1-VS4QESWITCH ROCKER DPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
1M1-DP1-R1/2-VS4QESWITCH ROCKER DPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
TRD13D12WLSWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
TRD | Bulk | Obsolete | Panel Mount, Threaded Body with Nut | SPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
47BWDP1J1V3RTSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
47B | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3003P1R3BLKM7QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Datasheet |
300 | Tray | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | - |
|

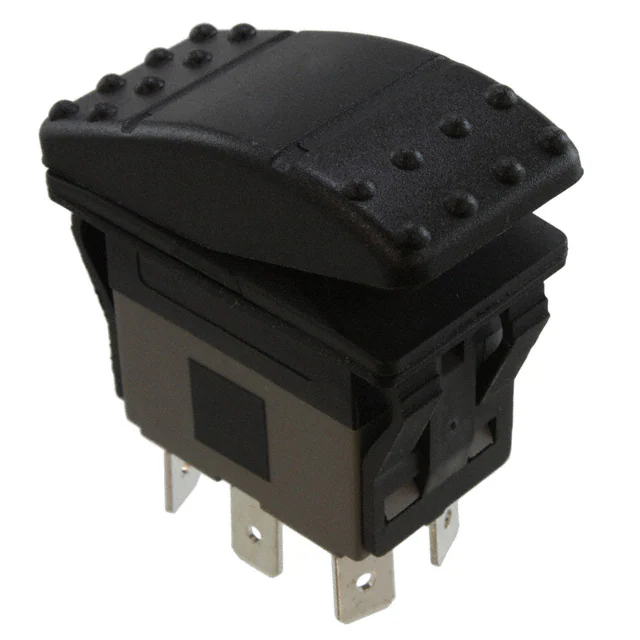

GRB224A2NABA1SWITCH ROCKER DPDT 25A 12V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 25A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | -25°C ~ 85°C | - |
|
|
632152-1B-3NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Amber | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632151-1B-3NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Amber | No Marking | LED, Amber | 12 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-2B-3NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632151-2B-4NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | No Marking | LED, Red | 24 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-2B-4NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | No Marking | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-4B-4NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Green | No Marking | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632151-4B-3NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Green | No Marking | LED, Green | 12 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-4B-3NSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Green | No Marking | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
3004P3R6M3QEBLKSWITCH ROCKER 4PDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Panel Mount, Snap-In | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.88mm x 12.70mm | -30°C ~ 85°C | - |
|
|
651682-BB-GWSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651782-BW-9WSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651681-BB-GWSWITCH ROCKER SPDT 8A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
651882-BB-9WSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
