Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H8553VBWG2-551WSWITCH ROCKER DPST 15A 250V |
0 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
632422-2B-JESWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632422-1B-KBSWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Clear | ON OFF, Horizontal | Neon, Clear | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632421-2B-JASWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Clear (Red Filter/Diffuser) | OFF ON, Vertical | Neon, Clear/Red | 125 VAC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632422-2B-KESWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Red | O - | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632421-2B-KESWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Red | O - | Neon, Red | 250 VAC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632422-1B-KESWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632422-2B-JASWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Clear (Red Filter/Diffuser) | OFF ON, Vertical | Neon, Clear/Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632421-2W-JASWITCH ROCKER DPST 12A 125V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat - Illuminated | Clear (Red Filter/Diffuser) | OFF ON, Vertical | Neon, Clear/Red | 125 VAC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
M2T28TZW23SWITCH ROCKER DPDT 6A 125V |
0 |
|
- |
M2 | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
AS39S0200ROCKER SWITCH AS PANEL SNAP IN |
0 |
|
Datasheet |
AS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 4A (AC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 18.65mm x 8.90mm | -40°C ~ 85°C | UL |
|
|
47BWDP4R1M1RTSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
47B | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
8M3011-ZSWITCH ROCKER 3PDT 6A 125V |
0 |
|
Datasheet |
8M | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | - | -30°C ~ 85°C | - |
|
|
RGSCD901-R-R-B-0SWITCH ROCKER DPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | DPST | On-On | 20A (AC) | 125 V | - | Concave (Curved) | - | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
C1560WABWSWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
R721FXX-SXXXNXBNNXSWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Actuator Arm, Cap Required | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
AS32S010010SWITCH ROCKER SPDT 4A 125V |
0 |
|
Datasheet |
AS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 4A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.65mm x 8.90mm | -40°C ~ 85°C | UL |
|
|
C60036003PLBG7SWITCH ROCKER SPSTX2 20A 277V |
0 |
|
Datasheet |
6000 | Bulk | Active | Panel Mount, Snap-In | SPST x 2 | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Green | No Marking | Incandescent, Green | 12 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | - | - | CSA, UL |
|
|
47ADP1J1M7QTSWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
47A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

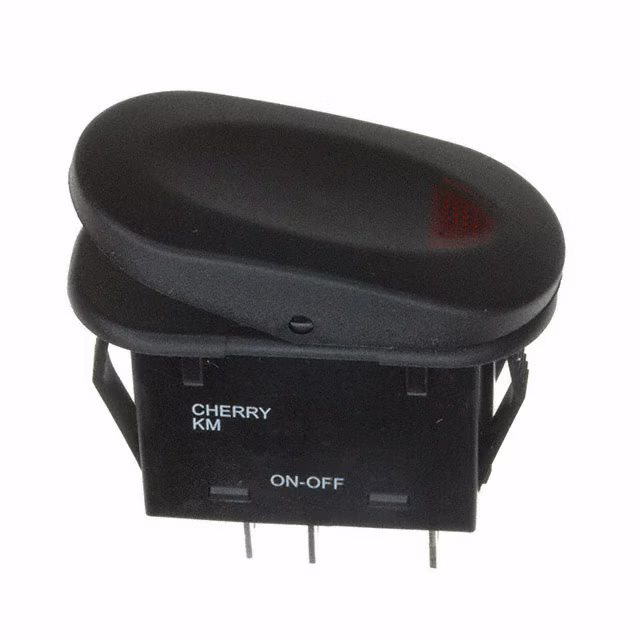

KMD2AMB7BBBNR1SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
KM | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
