Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRSP6A9M9SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSP6A7M9SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSP6A12M9SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSL1A28V2M9SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
CRSL | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) - Illuminated | Clear | O - | Incandescent, Clear | 28 VAC/DC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
CF-LA-2KZ2-3CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|

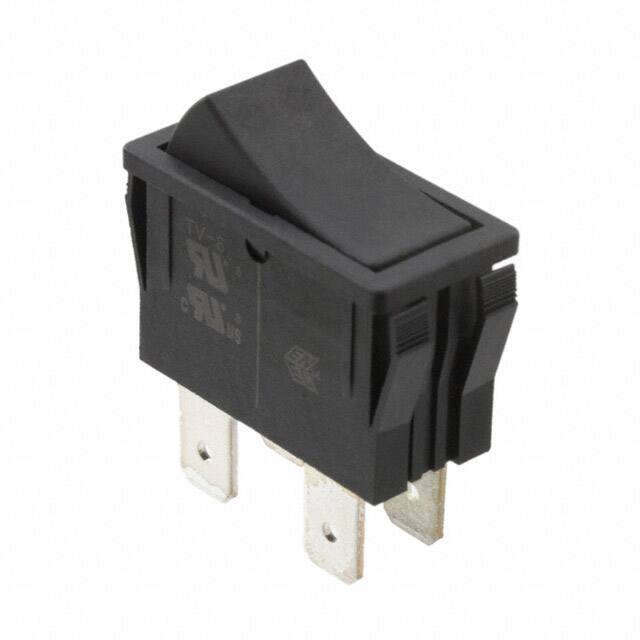

CF-LA-2KZ2-1CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
CF-LA-2KL-1CSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
CF-LA | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
A23K1P-EASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
CRSP4H9M9SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Datasheet |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
7105J50ZQE2SWITCH ROCKER SPDT 5A 120V |
9 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
47DWMDP3R1M7QTSWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
47D | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
1M1-SP3-R5/2-M1QESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
1M1-SP3-R3/0-2M1QESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
R713FA3-SXXX1B4RAWSWITCH ROCKER SPDT 16A 30V |
0 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Red | 6 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
7101J2ZBE1SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
C1353AABG8-602AWSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | O - | Incandescent, Green | 24 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
C1353ABBG3602AWSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
CRSP7A7M9SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
JWS11BAB-ASWITCH ROCKER SPST 6A 125V |
0 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | With Barrier | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
|
M2015TXW13SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
