Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R6ABLKBLKAFSWITCH ROCKER SPST 10A 125V |
518 |
|
Datasheet |
R6 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.65mm | -20°C ~ 65°C | - |
|
RB242D1100SWITCH ROCKER DPST 20A 125V |
6,157 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
R1966FBLKBLKAFSWITCH ROCKER SPST-NO 15A 125V |
989 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

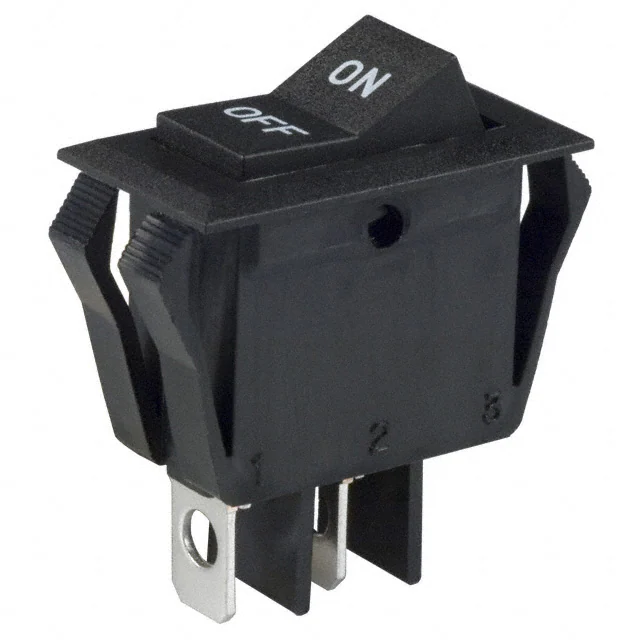

CL102J72S205DQASWITCH ROCKER SPST 16A 125V |
802 |
|
Datasheet |
CL | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.80mm x 14.00mm | -20°C ~ 80°C | cULus |
|

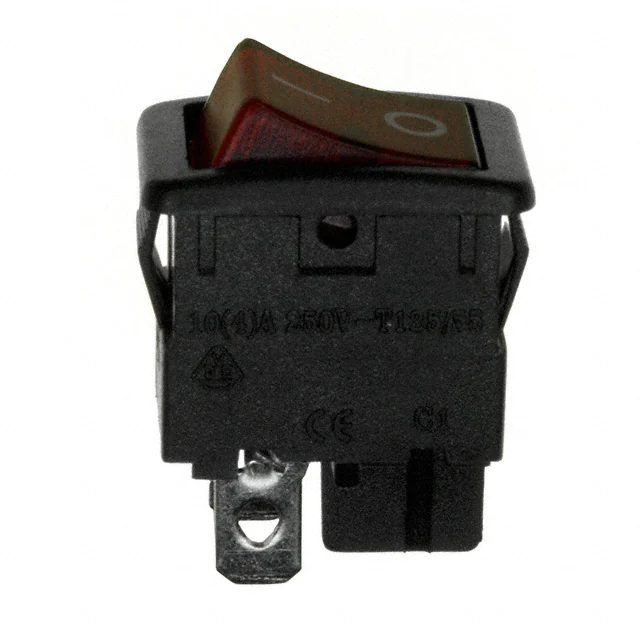

LRA22H2FBRLNSWITCH ROCKER SPST 10A 125V |
4,805 |
|
Datasheet |
LR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|
R1966EBLKBLKEFSWITCH ROCKER SPST-NC 15A 125V |
213 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966FBLKBLKESSWITCH ROCKER SPST-NO 15A 125V |
117 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

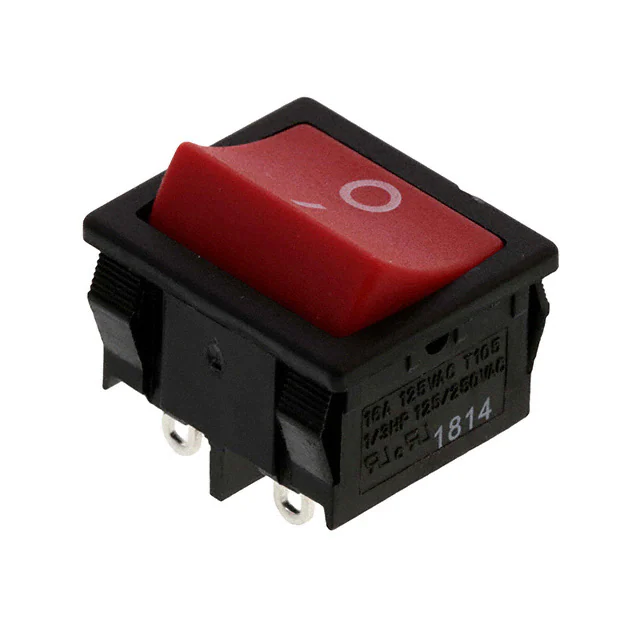

RA45HC1921SWITCH ROCKER DPDT 16A 125V |
2,970 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder Lug | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|

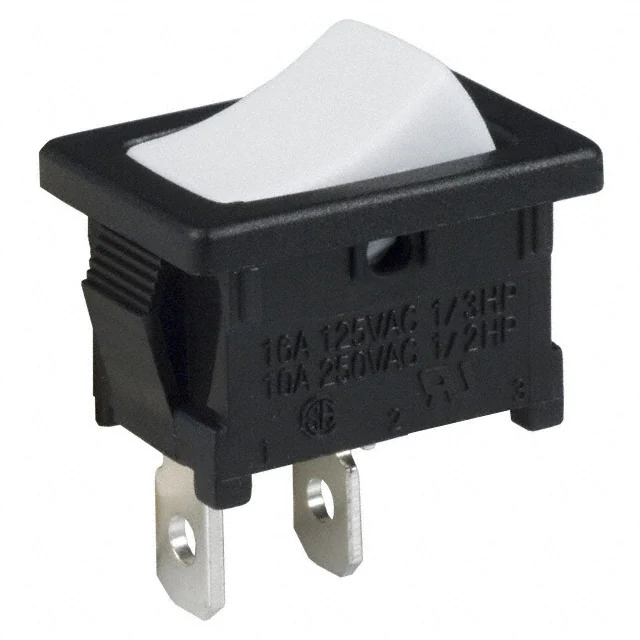

DA102J11S215QFSWITCH ROCKER SPST 16A 125V |
380 |
|
Datasheet |
DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
RB141D1100-219SWITCH ROCKER SPST 20A 125V |
1,975 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Red | 18 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
C1500BLAAASWITCH ROCKER SPST 20A 250V |
974 |
|
Datasheet |
1500 | - | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|

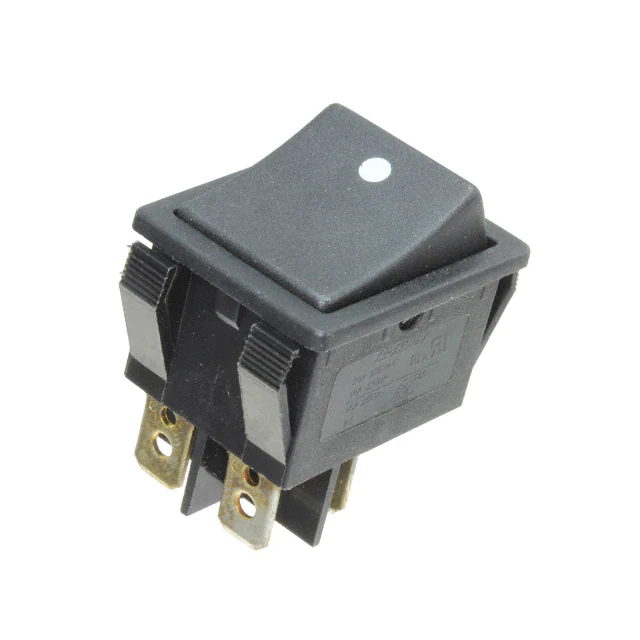

R5ABLKBLKAF0SWITCH ROCKER DPST 20A 125V |
143 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

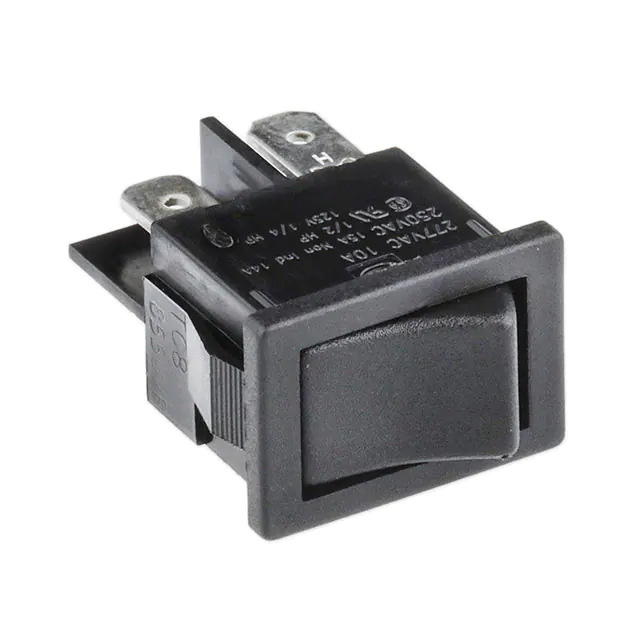

H8550VBAAASWITCH ROCKER DPST 15A 250V |
986 |
|
Datasheet |
8550 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | - | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - | CSA, UL |
|
C1350XBAAASWITCH ROCKER DPST-NO 20A 250V |
542 |
|
Datasheet |
1350 | - | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (DC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | - | CSA, UL |
|

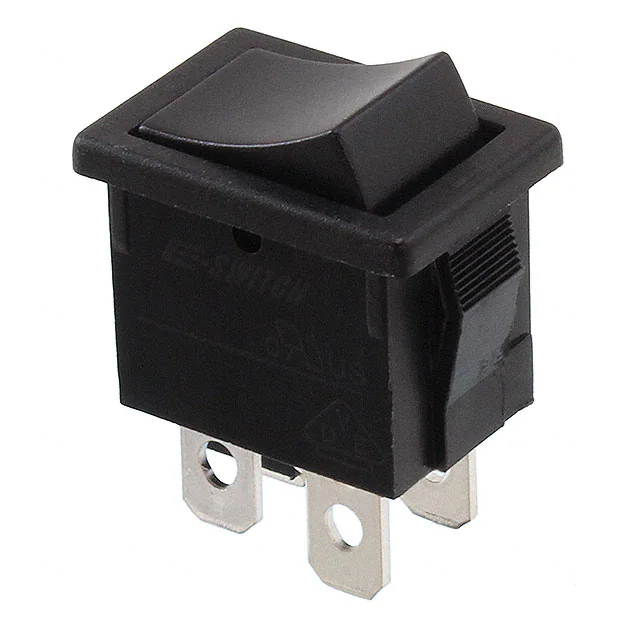

R1973BBLKBLKEF0SWITCH ROCKER DPST 9A 125V |
290 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

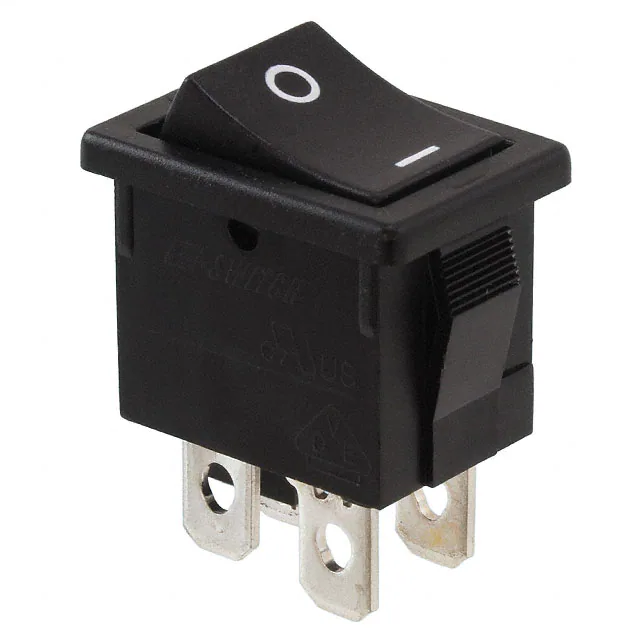

R1973BBLKBLKGF0SWITCH ROCKER DPST 9A 125V |
159 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
R4CBLKBLKFF0SWITCH ROCKER SPDT 20A 125V |
120 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
A8L1111N3SWITCH ROCKER SPST 10A 125V |
2,071 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|

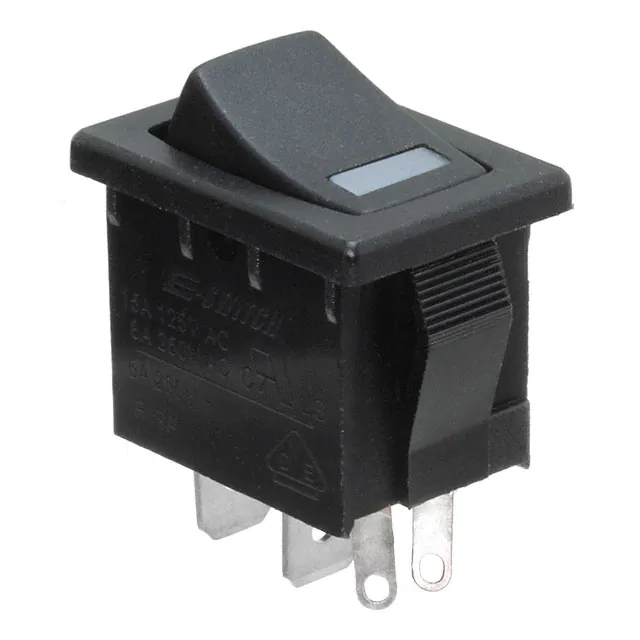

R1966ABLKBLKEGREDSWITCH ROCKER SPST 15A 125V |
178 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966ABLKBLKEFYELSWITCH ROCKER SPST 15A 125V |
186 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Yellow | 2.1 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
