Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

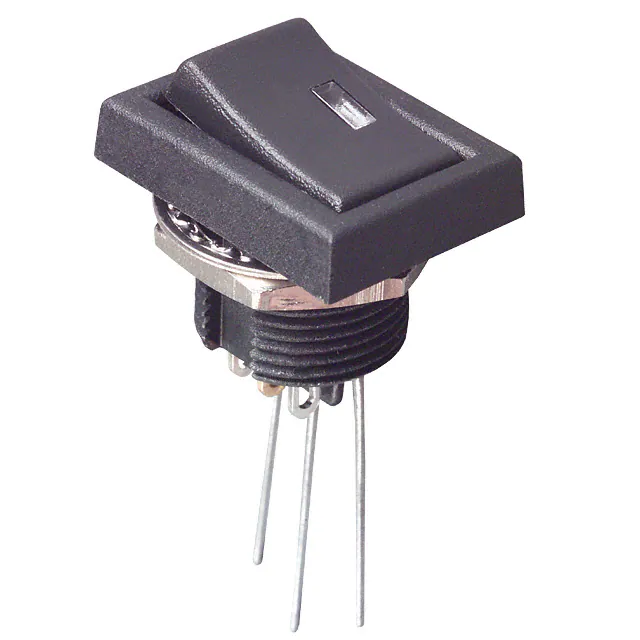

TRD13D10WLLR2504SWITCH ROCKER SPDT 3A 125V |
388 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green/Red | 2.8 VDC | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

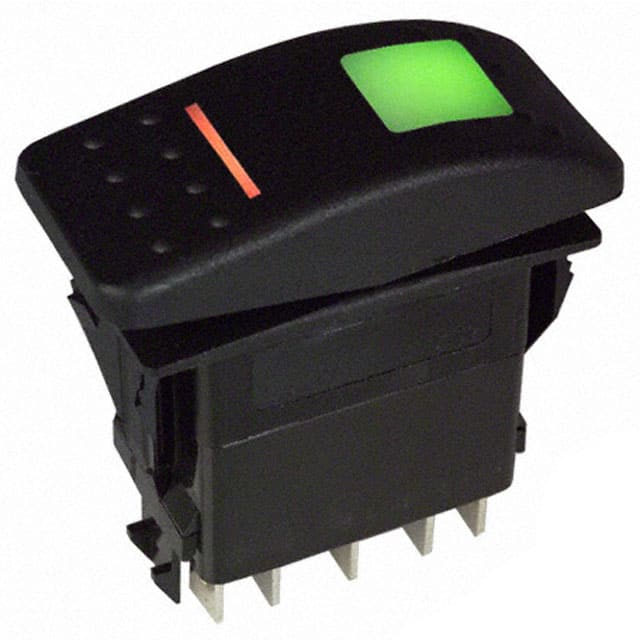

V8D2UHNB-AAC00-000SWITCH ROCKER SPDT 20A 12V |
1,694 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

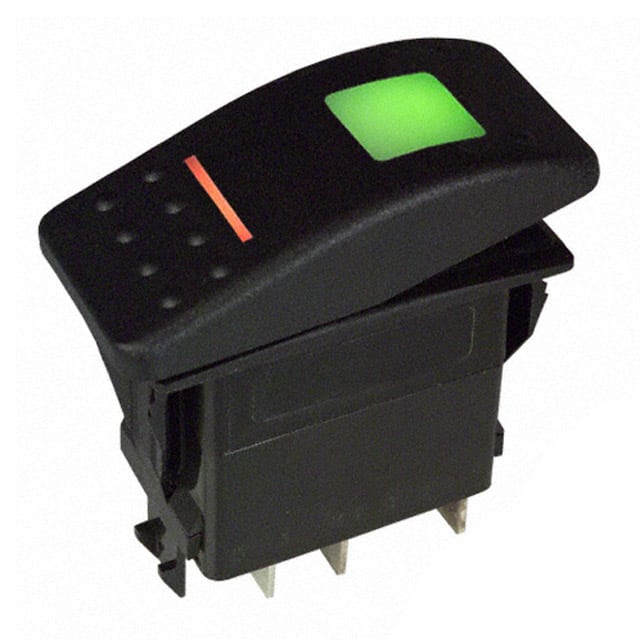

VGD2GHNB-AAC00-000SWITCH ROCKER SPDT 20A 12V |
210 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber/Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

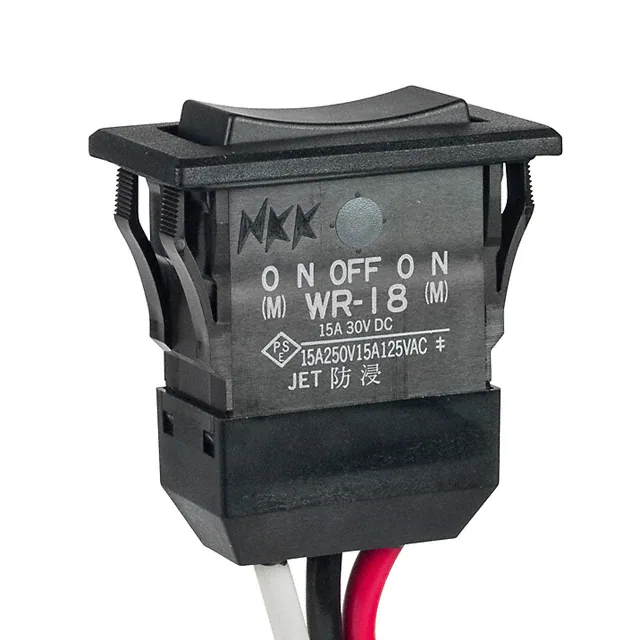

WR18ALSWITCH ROCKER SPDT 15A 125V |
340 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

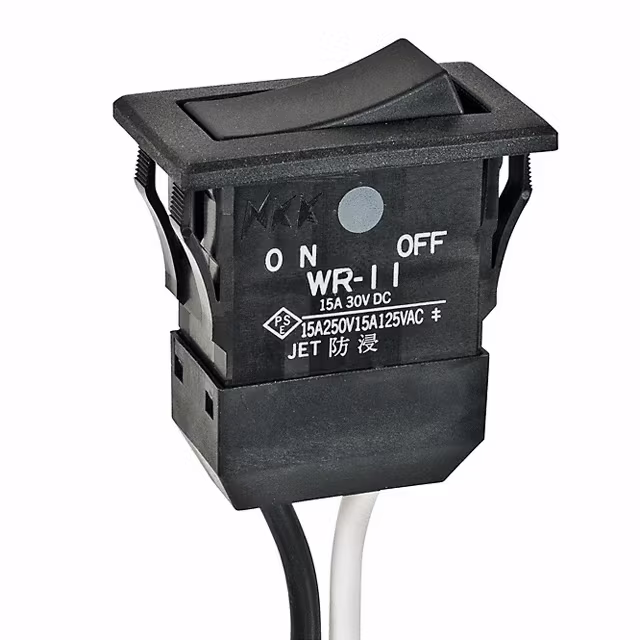

WR11ALSWITCH ROCKER SPST 15A 125V |
119 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|

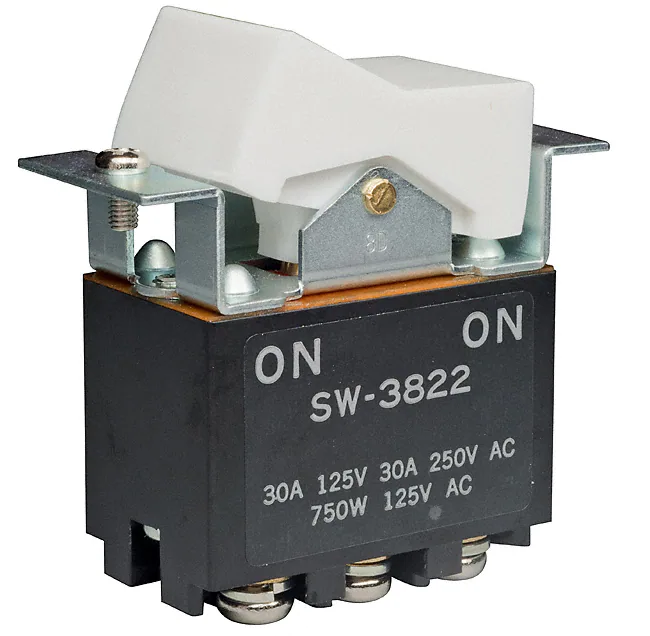

SW3822SWITCH ROCKER DPDT 30A 125V |
173 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
TRD11G10WLSWITCH ROCKER SPDT 0.4VA 20V |
245 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

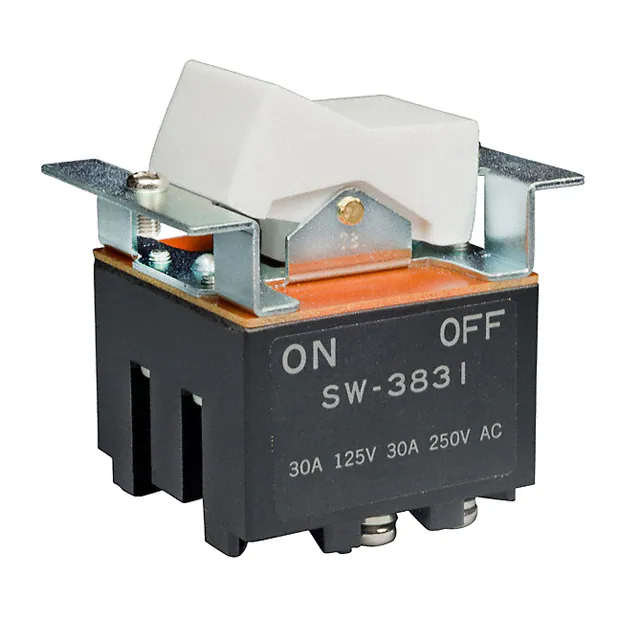

SW3831/USWITCH ROCKER 3PST 30A 125V |
827 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
AML34FBA4AC01SWITCH ROCKER DPST 15A 125V |
300 |
|
Datasheet |
AML34 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
AML34FBA4AA01SWITCH ROCKER SPST 15A 125V |
54 |
|
Datasheet |
AML34 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|
FNRC64SXX2XSWITCH ROCKER DPDT 1A 24V |
934 |
|
Datasheet |
FNR | Tray | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 1A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 20.20mm Dia | -40°C ~ 85°C | - |
|
|
FNRCF4SXX2XSWITCH ROCKER DP3T 1A 24V |
90 |
|
Datasheet |
FNR | Tray | Active | Panel Mount, Threaded Body with Nut | DP3T | On-On-On | 1A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 20.20mm Dia | -40°C ~ 85°C | - |
|
AML24EBA2AC04SWITCH ROCKER DPDT 3A 125V |
107 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
AML26GBF2CA02RGSWITCH ROCKER DPDT 3A 125V |
70 |
|
Datasheet |
AML26 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|

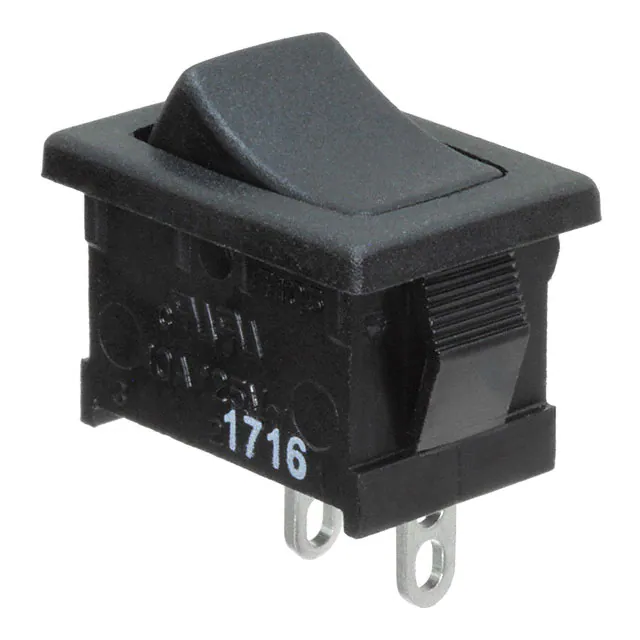

RA12131185SWITCH ROCKER SPST 10A 125V |
2,589 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | Rectangle on End | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA111C1181SWITCH ROCKER SPST 16A 125V |
3,156 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RRG38132200SWITCH ROCKER SPST 10A 125V |
2,022 |
|
Datasheet |
RRG3, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | White | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RA12431200SWITCH ROCKER SPST-NO 10A 125V |
1,394 |
|
Datasheet |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|

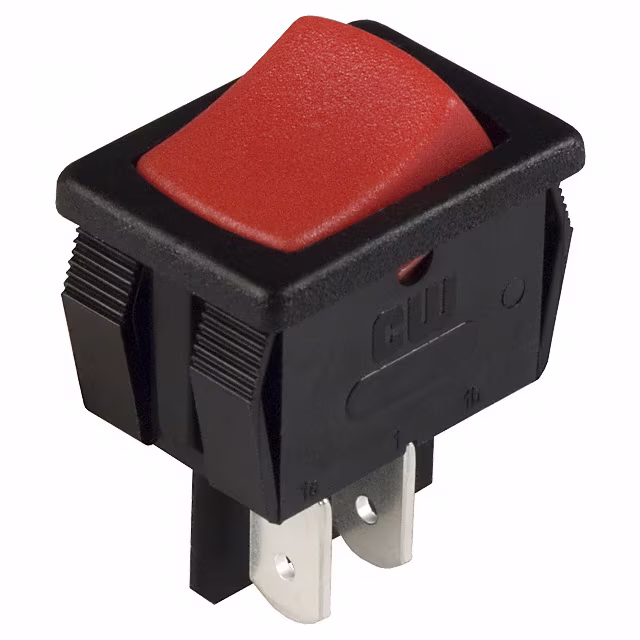

GRS-4011-0040SWITCH ROCKER SPST 16A 125V |
1,281 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
RD111C1121SWITCH ROCKER SPST 16A 125V |
2,095 |
|
Datasheet |
RD1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.80mm | -20°C ~ 105°C | cULus, UL |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
