Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1966ABLKBLKERGRNSWITCH ROCKER SPST 15A 125V |
932 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
ANR11R11P2VQESWITCH ROCKER SPDT 5A 120V |
219 |
|
Datasheet |
ANR | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | cULus |
|
ANR11R11P2HQESWITCH ROCKER SPDT 5A 120V |
182 |
|
Datasheet |
ANR | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | cULus |
|
PRFDB1-16F-BG000SWITCH ROCKER DPST 16A 125V |
1,352 |
|
Datasheet |
PRF | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|

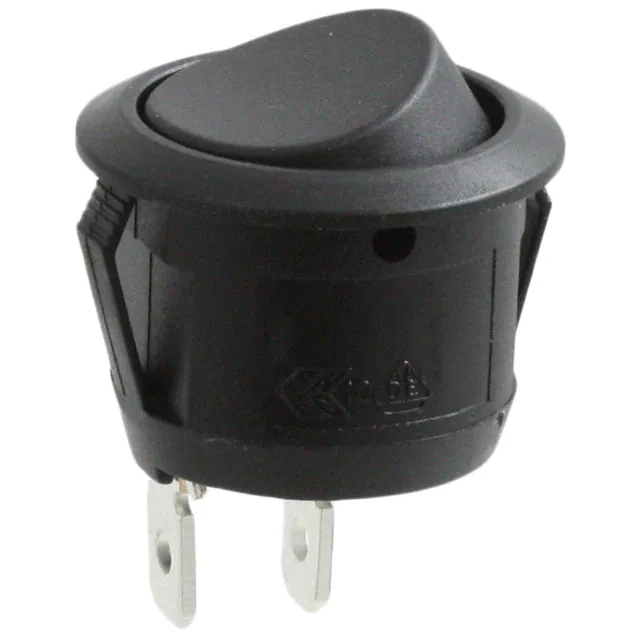

R13112ABBSWITCH ROCKER SPST 10A 125V |
19 |
|
Datasheet |
R13 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
DA102J3GS215QF7SWITCH ROCKER SPST 16A 125V |
3,722 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
C1553PTNABSWITCH ROCKER DPST 20A 250V |
988 |
|
Datasheet |
1553 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 22.40mm | - | CSA, UL |
|
SW-R3-2B-B-5-13SWITCH ROCKER SPDT 3A 125V |
190 |
|
Datasheet |
SW | Box | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | - |
|

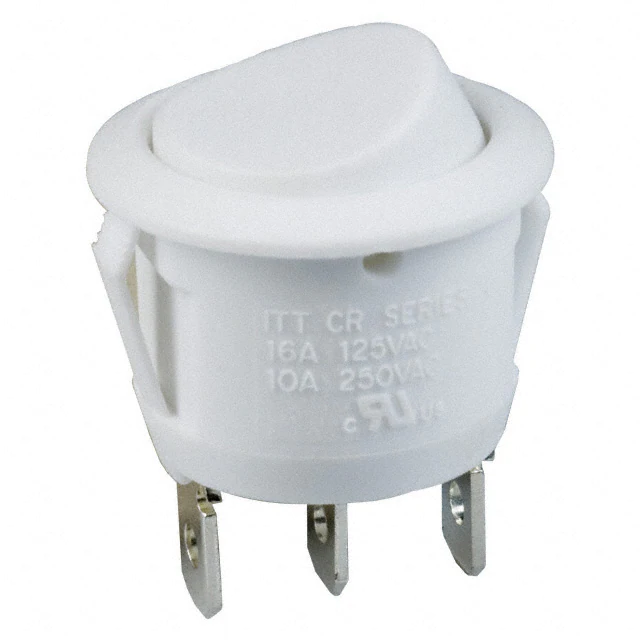

CR101J11S115QFSWITCH ROCKER SPDT 16A 125V |
552 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Round | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
R1973BBLKBLKFR0SWITCH ROCKER DPST 9A 125V |
409 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
R1973BBLKBLKGR0SWITCH ROCKER DPST 9A 125V |
209 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

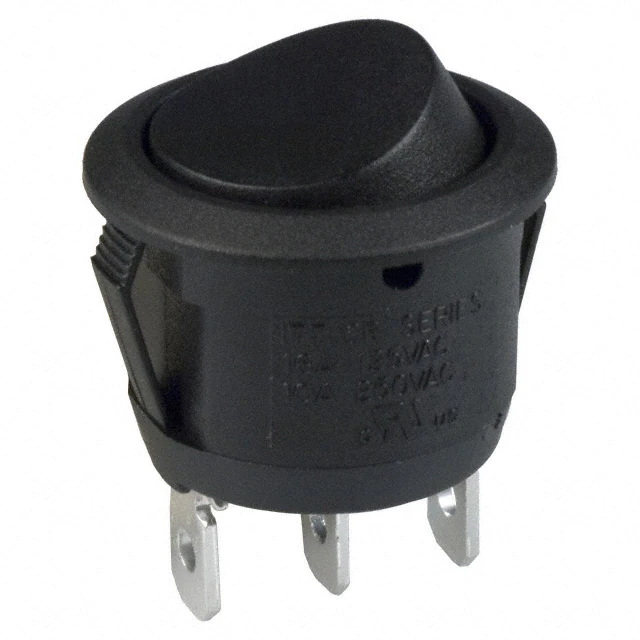

CR101J12S215QFSWITCH ROCKER SPDT 16A 125V |
780 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|

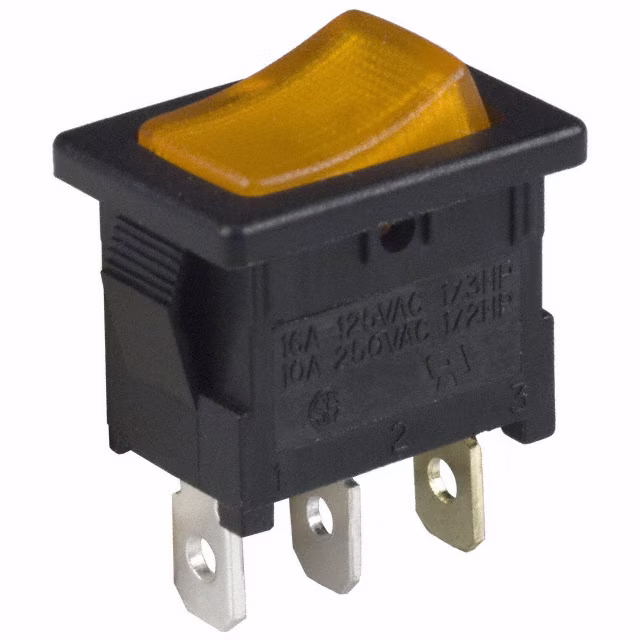

DA102J3AS215QF7SWITCH ROCKER SPST 16A 125V |
238 |
|
Datasheet |
DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|

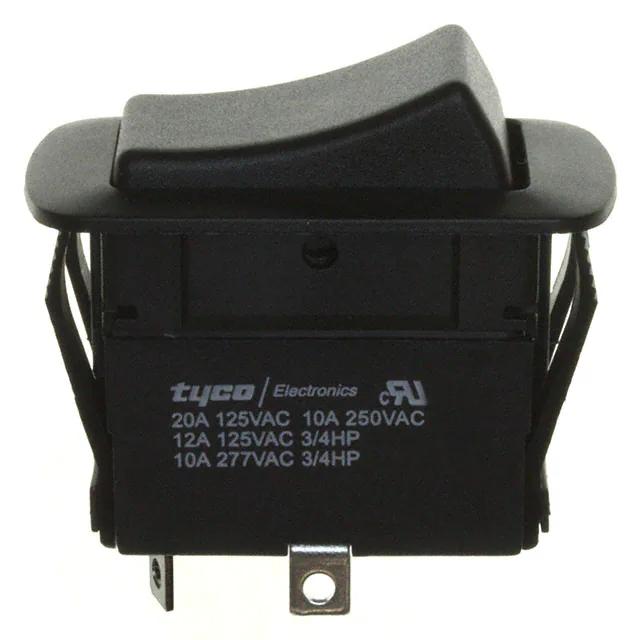

1571095-4SWITCH ROCKER SPST 20A 125V |
425 |
|
Datasheet |
PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
A8L-11-14N2SWITCH ROCKER SPST 10A 125V |
358 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cULus, EN, UL |
|
DA102J3RS215QF8SWITCH ROCKER SPST 16A 125V |
998 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
1634201-1SWITCH ROCKER DPST 16A 125V |
968 |
|
Datasheet |
PRF | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.20mm x 22.20mm | -20°C ~ 85°C | cULus |
|
SW-R2-2B-B-5-10SWITCH ROCKER SPDT 5A 125V |
275 |
|
Datasheet |
SW | Box | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | - |
|
A8L-11-13N2SWITCH ROCKER SPST 10A 125V |
130 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 17.50mm | -20°C ~ 55°C | cULus, EN, UL |
|
SW-R3-2B-B-SB5-G-13SWITCH ROCKER SPDT 0.4VA 20V |
129 |
|
Datasheet |
SW | Box | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | - |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
