Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RGSEA900-P-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RSCA201-VB-B-9-WSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, White | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RSCB211-RB-B-0-NSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RGSEA901-R-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RGSEA201-R-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RSCB201-RB-B-0-NSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RSCA211-VB-B-1-WSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, White | OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RSCA201-VB-B-E-VSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RSC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCA901-P-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCA211-R-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCA201-R-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
RGSCA901-R-B-B-0SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|

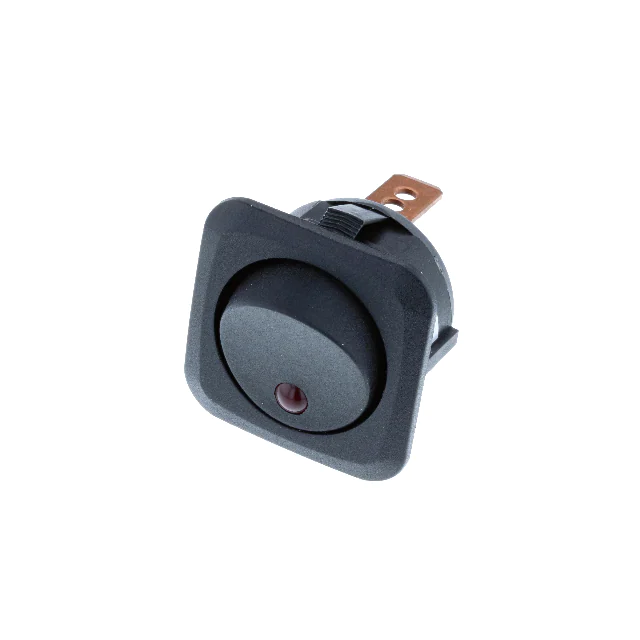

RC-1A-DC-1-RLSWITCH ROCKER SPST 25A 12V |
5 |
|
Datasheet |
RC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Round - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 24.00mm Dia | -20°C ~ 65°C | - |
|
|
300DP5J1REDVS2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
651125-BB-1VSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | Wire Leads | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
300SP5R6BLKM1REBLKSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
300 | Tray | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP1R1BLKM7QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
300DP6J1REDM6QESWITCH ROCKER SP3T 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | - |
|
|
300DP5J1BLKM51QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Tray | Active | Through Hole | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP4J3M7QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
