Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1973ABLKREDIF0SWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
PRASA1-16L-BB000SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
LRA22H2BBRLNSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
LR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|
RB141D1000-114SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
R1973BBLKBLKF0SWITCH ROCKER DPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
RB242D1921Switches |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
|
R4BBLKBLKREDFF1SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RB242C1100-244SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
|
R1966EBLKBLUEFSWITCH ROCKER SPST-NC 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Blue | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
R1966FBLKWHTEFSWITCH ROCKER SPST-NO 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
R4DBLKREDBFOSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Red | I O II | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|

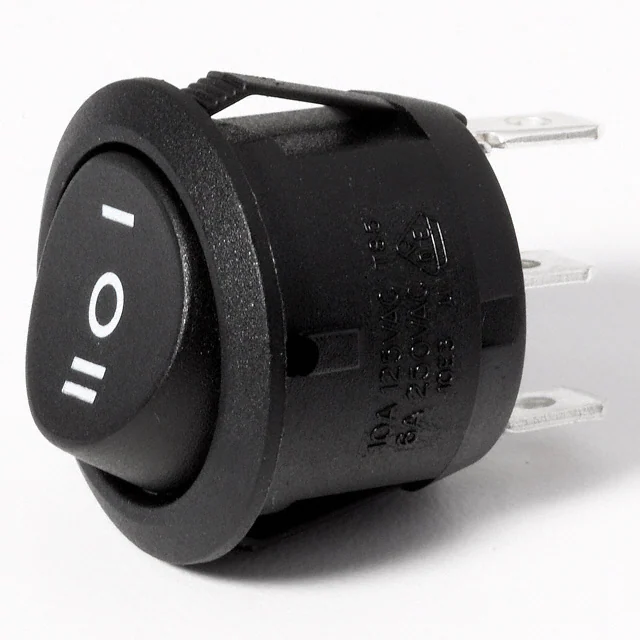

RR3112DBLKBLKNEFOSWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112FBLKBLKNAF0SWITCH ROCKER SPST-NO 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
RR3112DBLKBLKNAF0SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Round | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112CBLKBLKNEF0SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
GRS-4022-0003SWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
R4FBLKBLKEF0SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
R4HBLKBLKEF0SWITCH ROCKER SPST-NC 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RR3112XBLKBLKEF0SWITCH ROCKER 16A 125V |
0 |
|
- |
RR3112 | Bulk | Active | Panel Mount, Snap-In | - | - | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RB242C1100-246SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Blue | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
