Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRA16C192SSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
RRA, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Round | Red | - O = | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
DA102J12S217PQFSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
|
R1973BBLKREDIF0SWITCH ROCKER DPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
RB145E1900SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
R1966IBLKBLKHRSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | Triangular Arrows with O | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
GRS-4022-0021SWITCH ROCKER DPDT 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.110" (2.8mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
DA102J24S215PQFSWITCH ROCKER SPST 125V |
0 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, White | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
|
RA1122XCYSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Yellow | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
GRS-4023C-0000SWITCH ROCKER DPDT 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
R1973ABLKORGIF1SWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Orange | ON OFF, Vertical | Neon, Orange | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
R4BWHTREDREDEF2SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
SRJ24A3BBBNNSWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
SR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | - |
|
|
SRJ24A3HBBNNSWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
SR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Round | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | - |
|

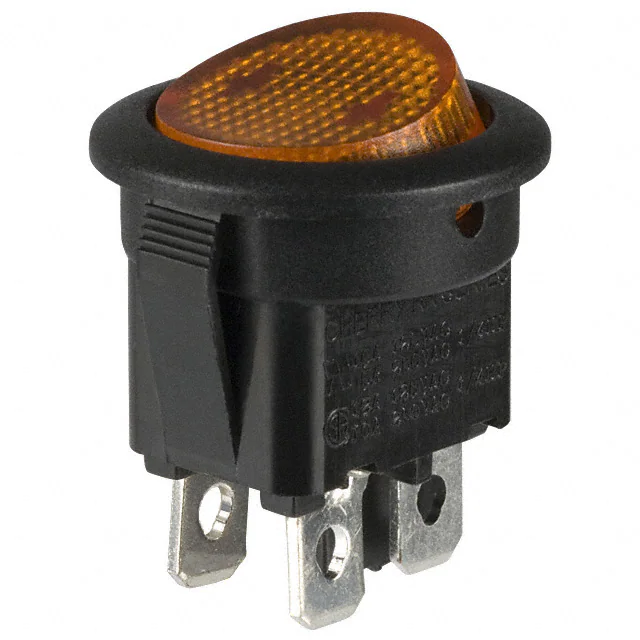

RRA22H3BBALNSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
RR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | - |
|
RRA22H3BBGLNSWITCH ROCKER SPST 10A 125V |
0 |
|
- |
RR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | - |
|
|
RR3402ESWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 6A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Circular - 15.00mm Dia | 0°C ~ 65°C | - |
|
|
R1973ABLKCLREF1GRNSWITCH ROCKER SPST 9A 125V |
0 |
|
- |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
GR5-1323-0800SWITCH ROCKER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RB242D1211SWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
|
R1966DBLKBLKBSSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
