Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN12TXW13-DASWITCH ROCKER MINI PC MOUNT |
46 |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN13TXW13SWITCH ROCKER MINI PC MOUNT |
30 |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|

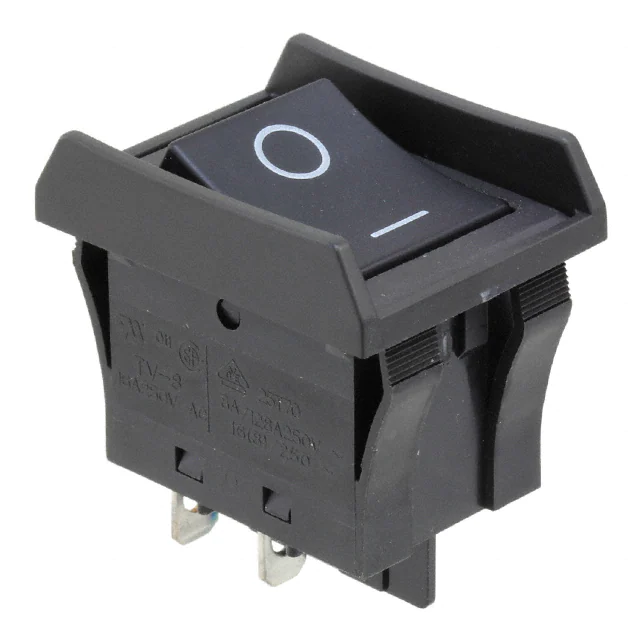

JWL11BA1A-ASWITCH ROCKER SPST 16A 125V |
15 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

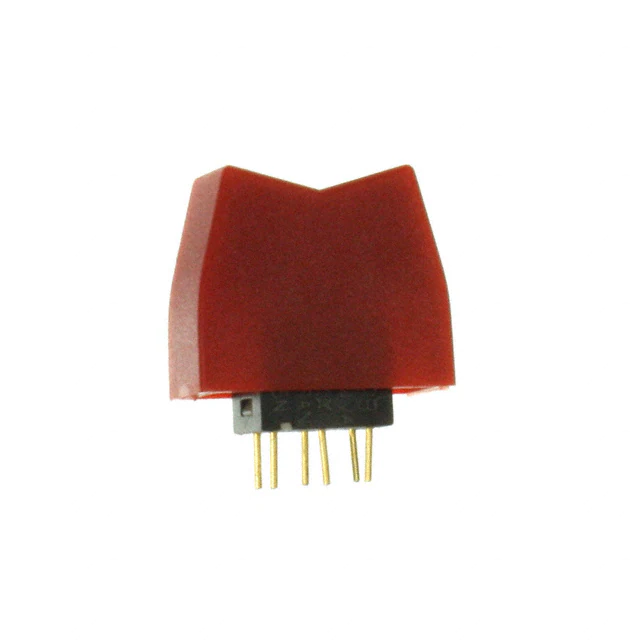

G28KP-YCSWITCH ROCKER DPDT 0.4VA 28V |
31 |
|
Datasheet |
G | Tray | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
CRTL111A125VG4MSWITCH ROCKER DPST 20A 250VAC |
36 |
|
Datasheet |
CRTL | Bulk | Active | Panel Mount, Snap-In | DPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|
|
CRTL111A125V3M9SWITCH ROCKER DPST 20A 125V |
17 |
|
Datasheet |
CRTL | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) - Illuminated | Amber | O - | Neon, Amber | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 22.35mm | - | CSA, UL, VDE |
|
|
MN18TXW13-GASWITCH ROCKER MINI PC MOUNT |
15 |
|
- |
M | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
V2D2S001-00000-000SWITCH ROCKER SPST-NO 20A 12V |
12 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
JWMW11RC1ASWITCH ROCKER SPST 10A 125V |
67 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Red | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|
|
V2D2A60B-00000-000SWITCH ROCKER SPST-NO 20A 12V |
20 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
JWL11RHA/UCVSWITCH ROCKER SPST 16A 125V |
23 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Gray | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
VDD2S00B-00000-000SWITCH ROCKER DPDT 20A 12V |
18 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

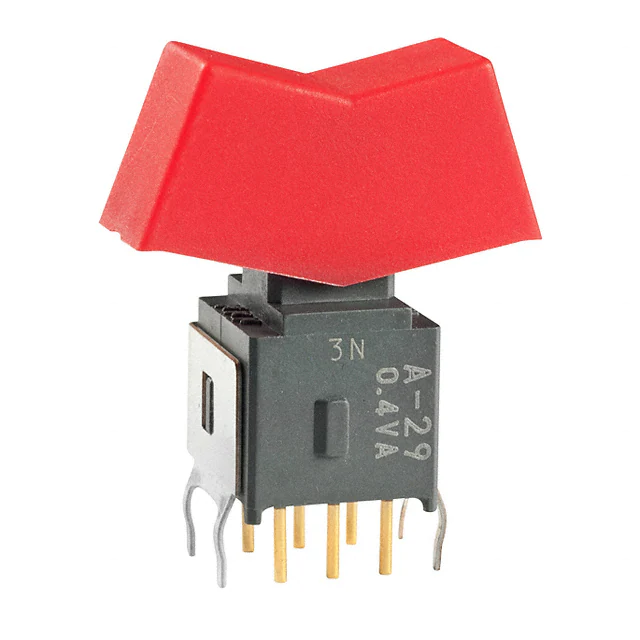

A29KB-CCSWITCH ROCKER DPDT 0.4VA 28V |
74 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
MN13TNW03-DAFLAT FRAME MOUNT MINIATURE ROCKE |
9 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V8D2S00B-00000-000SWITCH ROCKER SPDT 20A 12V |
11 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
C1571AABBSWITCH ROCKER DPDT 16A 250V |
100 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|

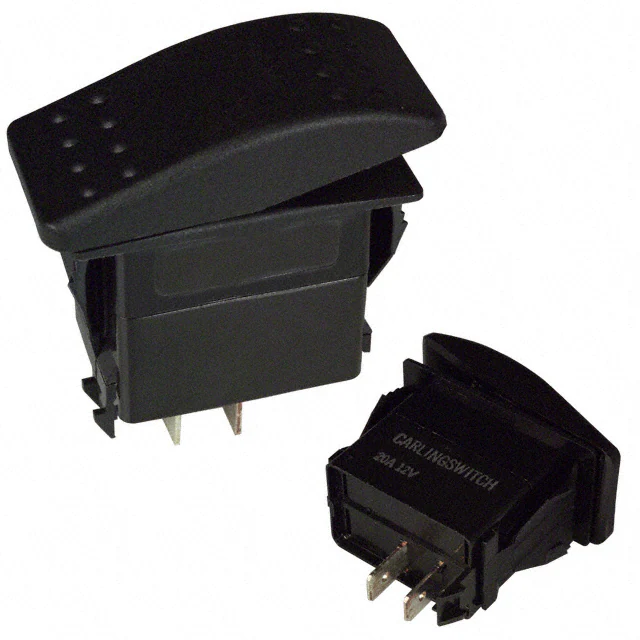

V2D2S00B-AZC00-000SWITCH ROCKER SPST-NO 20A 12V |
60 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
MN13TXG13-DABRACKET PC MOUNT MINIATURE ROCKE |
13 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V2D2A601-00000-000SWITCH ROCKER SPST-NO 20A 12V |
20 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

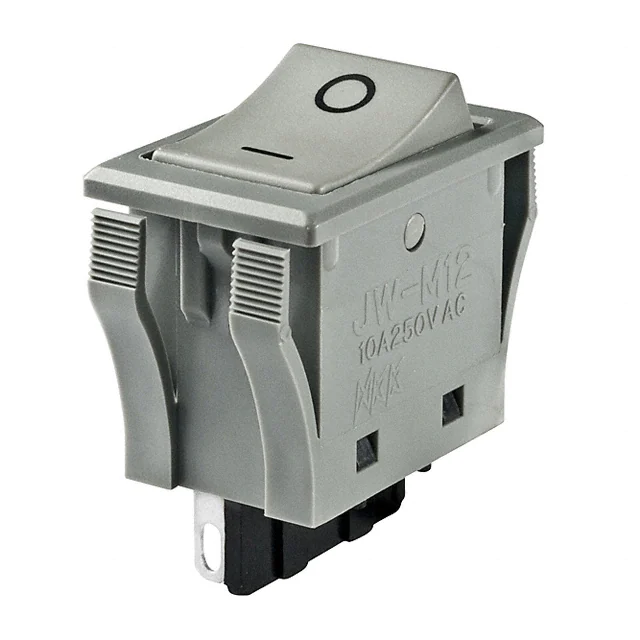

JWM12RH1H/UCVSWITCH ROCKER SPDT 10A 125V |
19 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Gray | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
