Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22TXW41-FASWITCH ROCKER MINIATURE PC MNT |
20 |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
7107J91CGE22SWITCH ROCKER SPDT 5A 120V |
35 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
ELW115D12SWITCH ROCKER SPDT 15A 127VAC |
40 |
|
Datasheet |
ELW | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 127 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -10°C ~ 70°C | cULus |
|

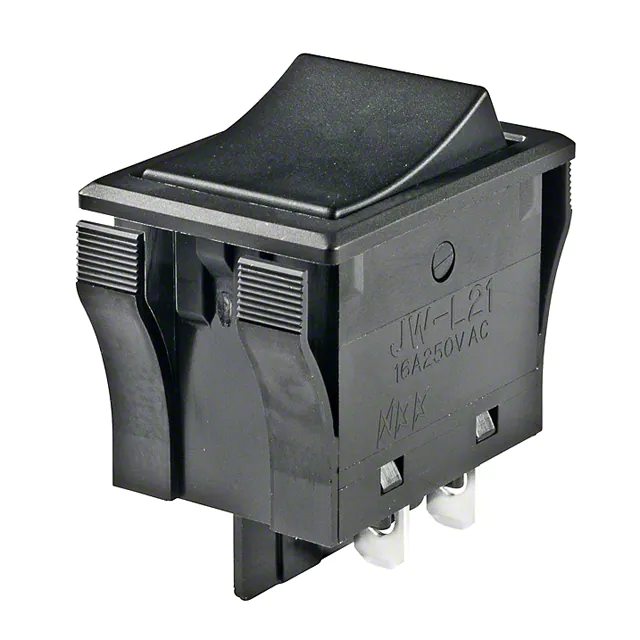

JWL21RAA/UCSWITCH ROCKER DPST 16A 125V |
22 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
V1D2AH0B-00000-000SWITCH ROCKER SPST 20A 12V |
6 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V4D2A601-00000-0001-pole, ON - None - ON, 20A 12 |
20 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D2AN0B-00000-000SWITCH ROCKER SPST 20A 12V |
19 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VJD2S00B-00000-000SWITCH ROCKER DPDT 20A 12V |
34 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
ELW115E12SWITCH ROCKER SPDT 15A 127VAC |
40 |
|
Datasheet |
ELW | Box | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 127 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | -10°C ~ 70°C | cULus |
|
|
MN22TXG13-DASWITCH ROCKER MINI PC MOUNT |
42 |
|
- |
M | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
57000-04SWITCH ROCKER SPST 25A 12V |
38 |
|
Datasheet |
57000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
|
MN18TJW01-GA-1ASWITCH ROCKER MINIATURE SNAP |
11 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
|
|
MN18TJW01-FA-1ASWITCH ROCKER MINIATURE SNAP |
9 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
|
|
V1D2AT0B-00000-000SWITCH ROCKER SPST 20A 12V |
10 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
VJD2S001-00000-0002-pole, ON - OFF - ON, 20A 12 |
18 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
MN24TJW01-GA-1ASWITCH ROCKER MINIATURE SNAP |
18 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | UL |
|
|
MN18TJG01-GA-1ASWITCH ROCKER MINIATURE SNAP |
34 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
|
|
MN24TNW03-DAFLAT FRAME MOUNT MINIATURE ROCKE |
10 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
57000-01SWITCH ROCKER SPST 25A 12V |
69 |
|
- |
57000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
|
V6D2AN0B-00000-000SWITCH ROCKER SPDT 20A 12V |
20 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (DC) | - | 12 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
