Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

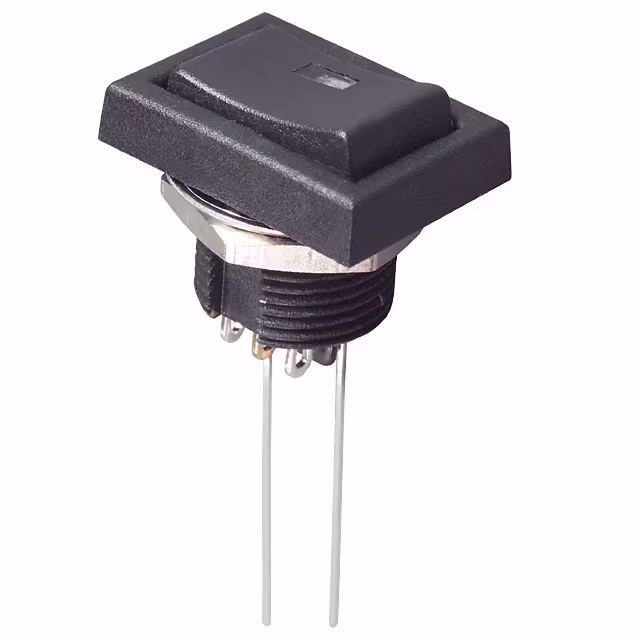

TRD13D10WLLR5SWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
TRD | Bulk | Obsolete | Panel Mount, Threaded Body with Nut | SPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.8 VDC | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
TRD11F10WLSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
TRD | Bulk | Obsolete | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

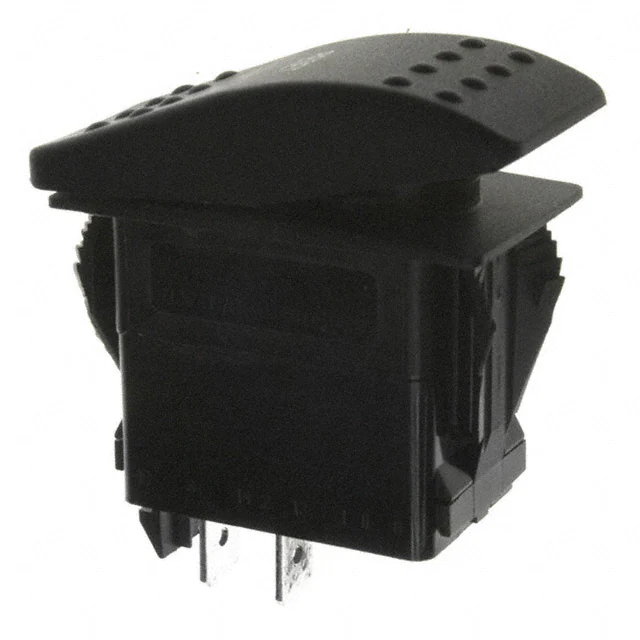

V252S00B-AZCXX-100-XWT1SWITCH ROCKER SPST-NO 10A 250V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
LDCA1JP1-3AAFE-1FCSWITCH ROCKER 5A 24V |
0 |
|
Datasheet |
LD | Bulk | Active | Panel Mount, Snap-In | - | On-On | 5A (DC) | - | 24 V | Concave (Curved) - Illuminated | - | Low Beam - High Beam, Vertical | LED, Amber/Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 44.04mm x 22.02mm | - | - |
|
CR102J23S215QFSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
CR | Tray | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Red, White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
CM101J62S205QASWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
CM | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|

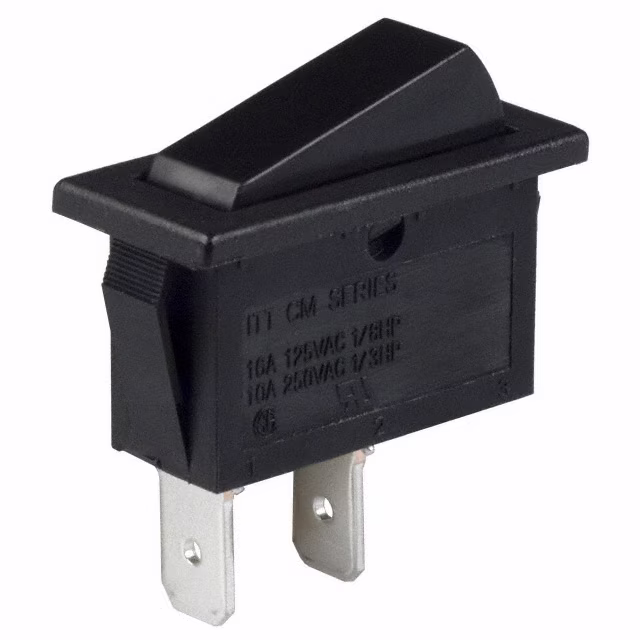

CM102J62S205QASWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
CM | Tray | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|
|
M2019TXW13-GASWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW13-GASWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

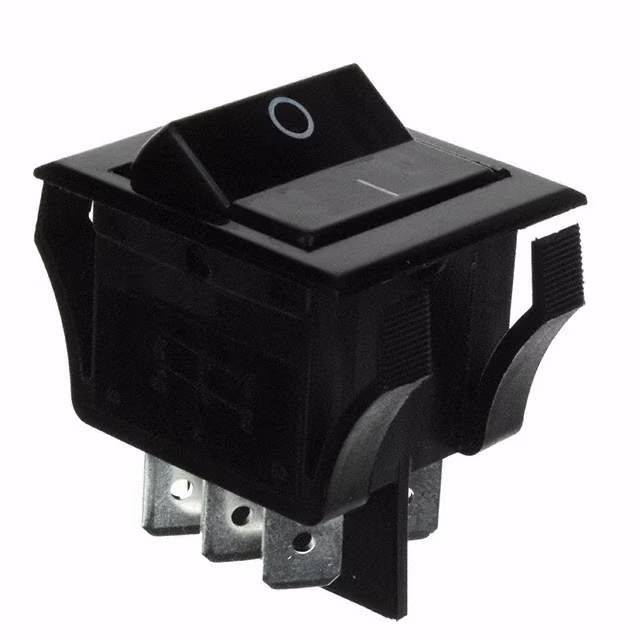

C221J12S205PQFSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|
M2032TXW13-DCSWITCH ROCKER 3PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

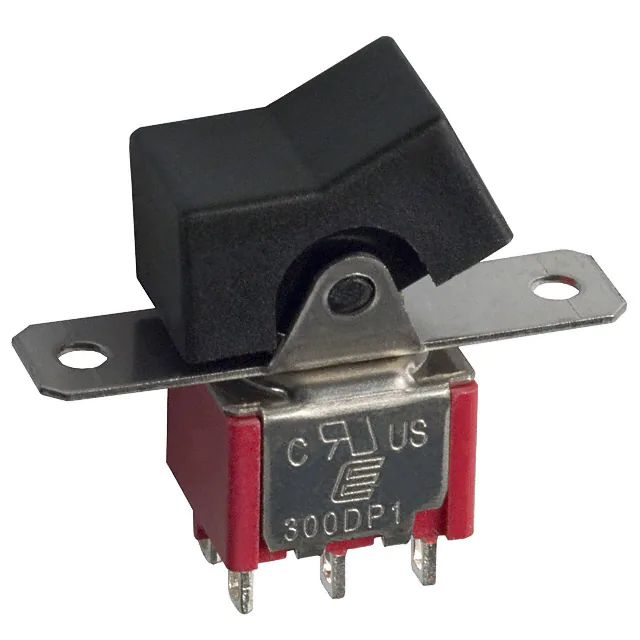

300DP1R1BLKM1QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|

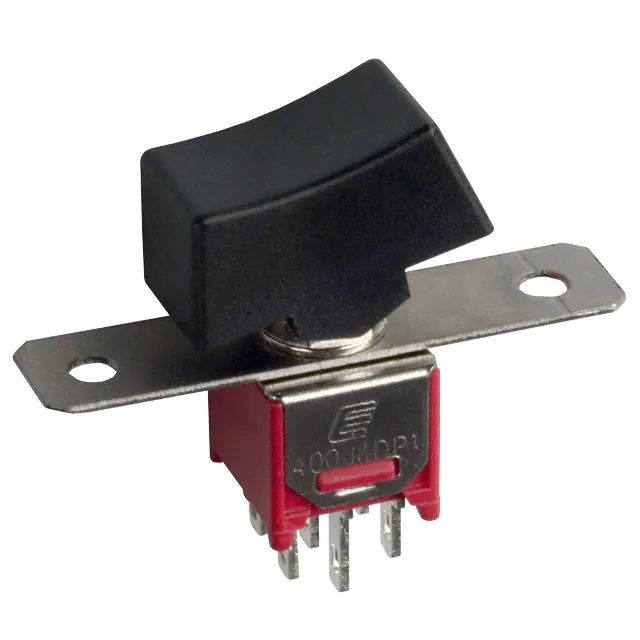

400MDP1R1BLKM1QESWITCH ROCKER DPDT 3A 120V |
0 |
|
Datasheet |
400 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|

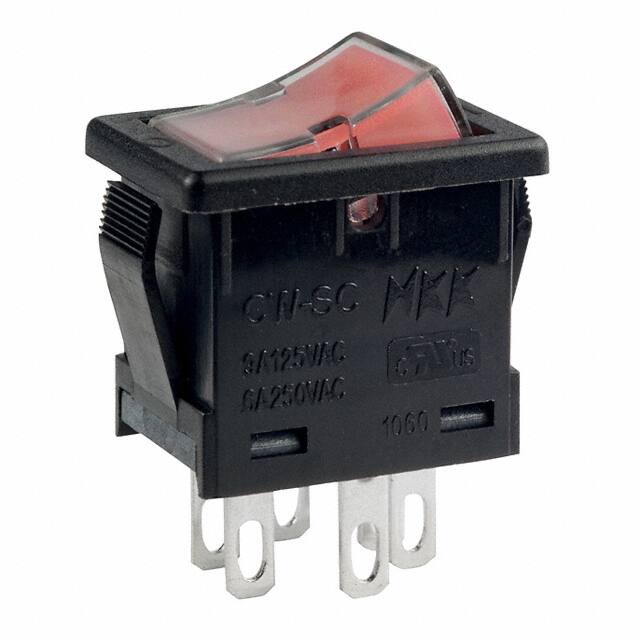

CWSC21JCACSSWITCH ROCKER DPST 9A 125V |
0 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Red Filter/Diffuser) | No Marking | LED, Red | 1.95 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|

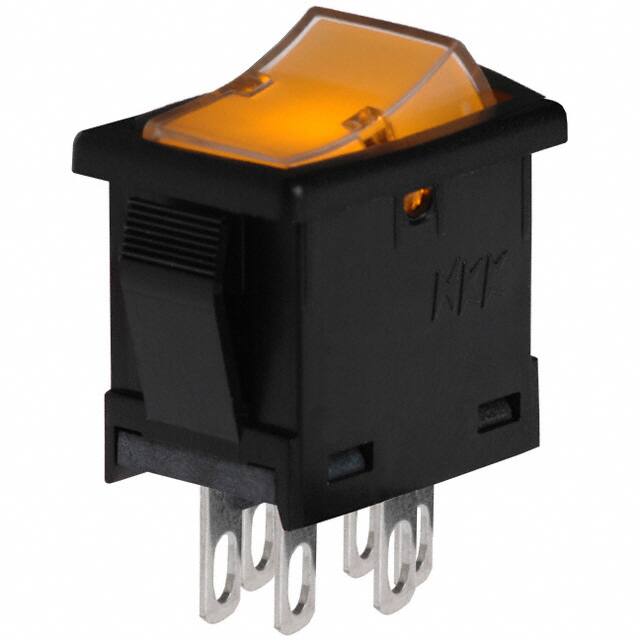

CWSC21JDADSSWITCH ROCKER DPST 9A 125V |
0 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Amber Filter/Diffuser) | No Marking | LED, Amber | 2 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|
CWSC21JFAFSSWITCH ROCKER DPST 9A 125V |
0 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Green Filter/Diffuser) | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|
CWSC11JDADSSWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Amber Filter/Diffuser) | No Marking | LED, Amber | 2 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|

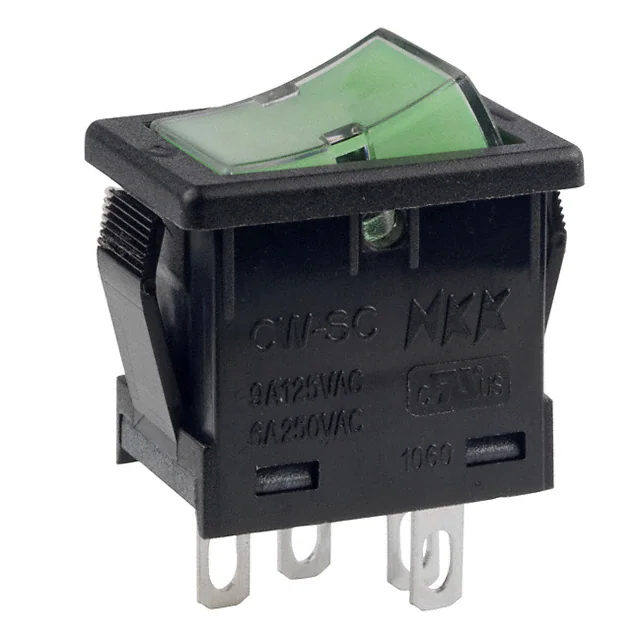

CWSC11JFAFSSWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Green Filter/Diffuser) | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|
|
RGSCC200-R-B-B-ESWITCH ROCKER DPST 20A 125V |
0 |
|
Datasheet |
RG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIHK5B-1C-BL-FN BLKSWITCH ROCKER 3PST-NO 10A 250V |
0 |
|
Datasheet |
TIH | Bulk | Active | Panel Mount, Snap-In | 3PST-NO | Off-Mom | 10A (AC), 15A (DC) | 250 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
