Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

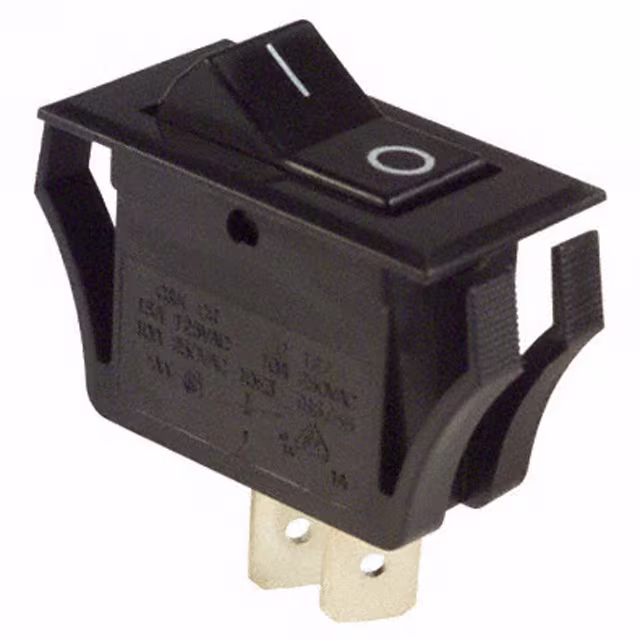

C122J12S205PQFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|

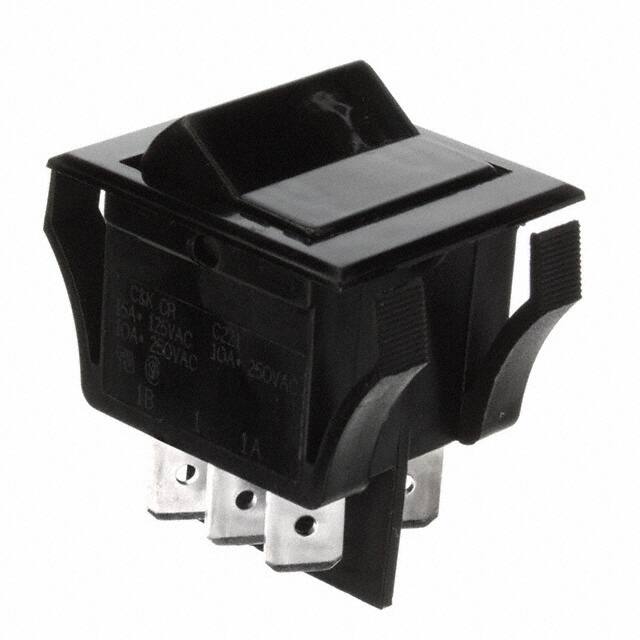

C221J12S205QASWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|

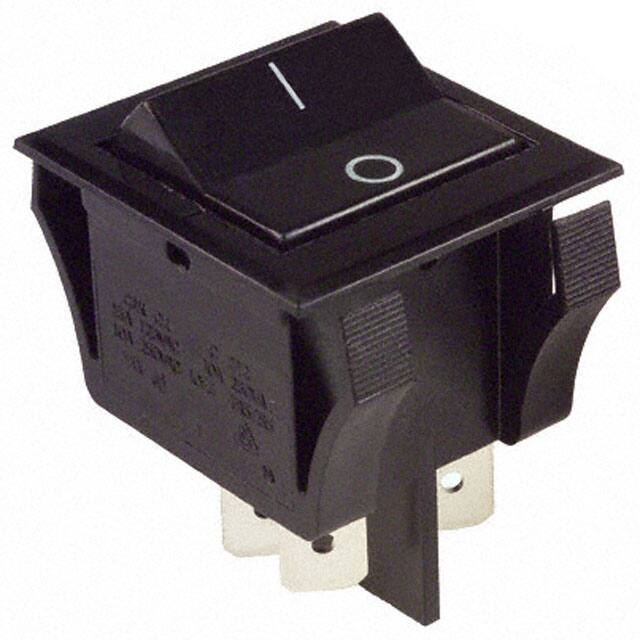

C222J12S205PQFSWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.50mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|

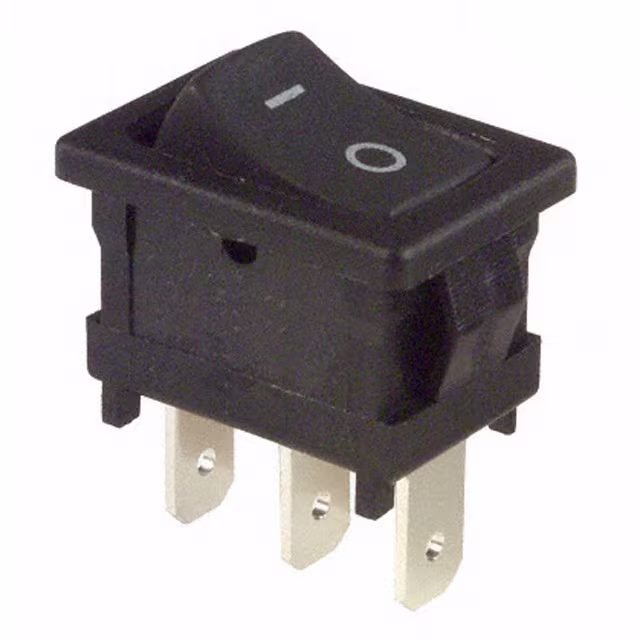

D101J12S215HQFSWITCH ROCKER SPDT 4A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

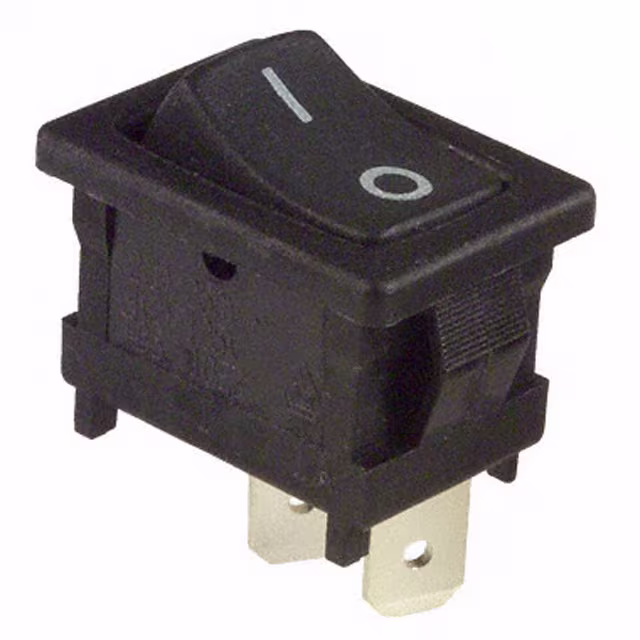

D102J12S205PQFSWITCH ROCKER SPST 4A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

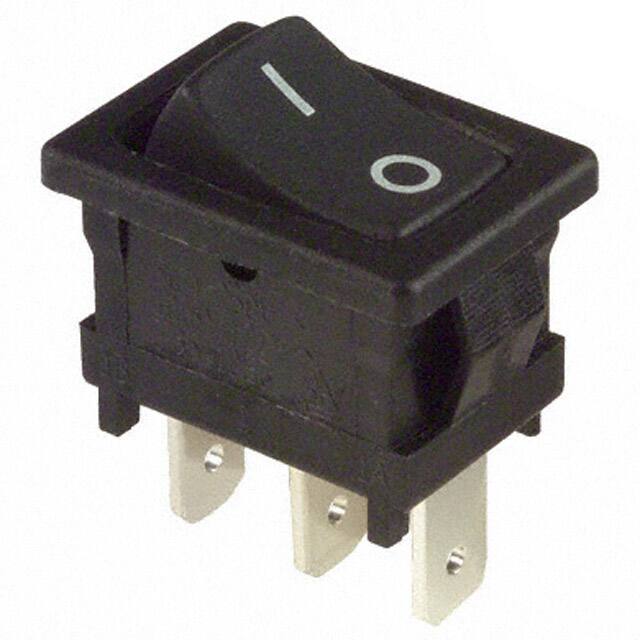

D501J12S215PQFSWITCH ROCKER SPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

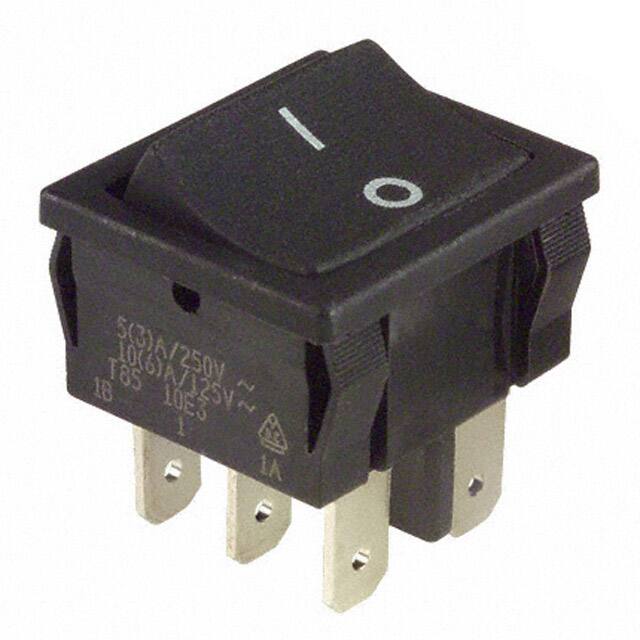

D601J12S215PQFSWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|

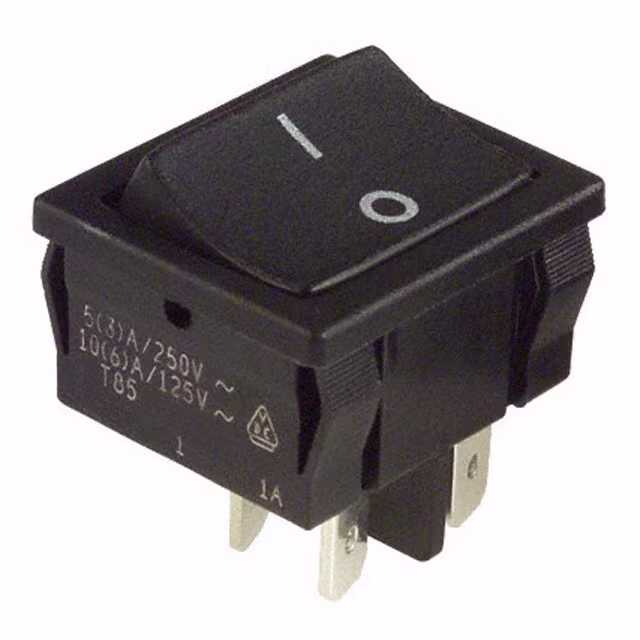

D602J12S205PQFSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|

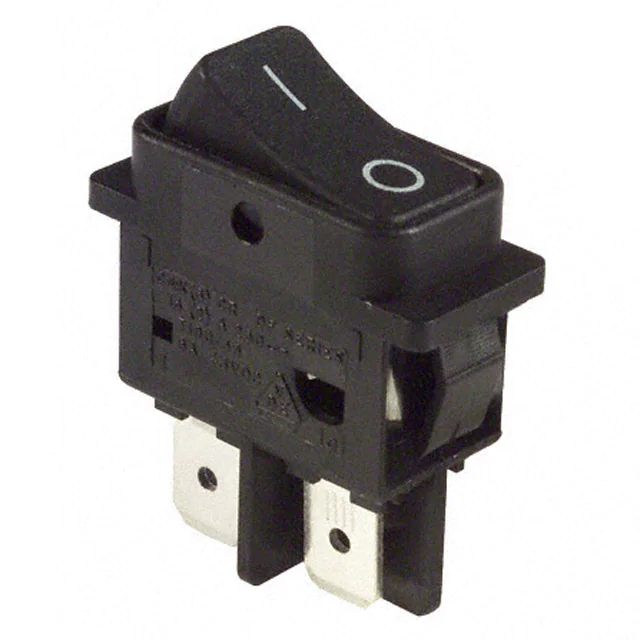

DF62J12S215HQFSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
DF | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|

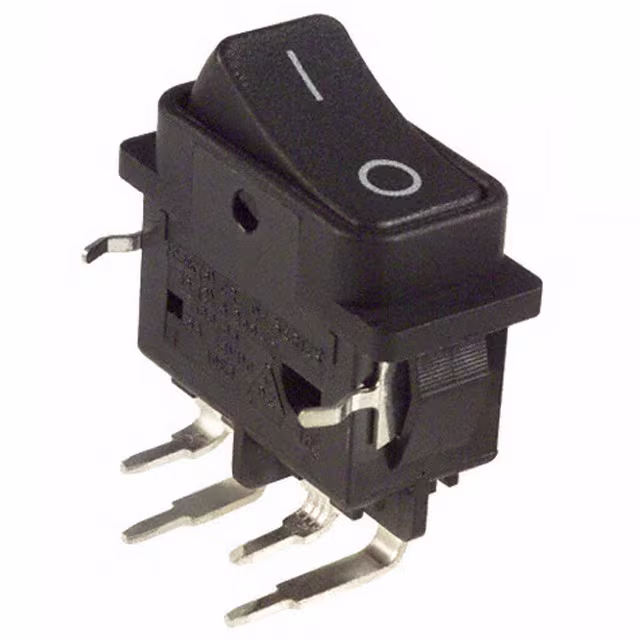

DF62J12S2APQFSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
DF | Tray | Obsolete | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
D102J12S217PQFSWITCH ROCKER SPST 4A 125V |
0 |
|
Datasheet |
D | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

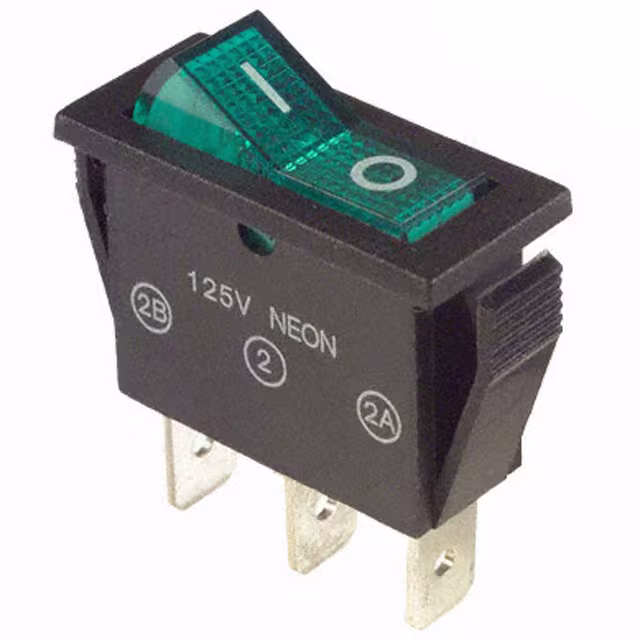

CA04J167207PQSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|
|
CA24J167207DQSWITCH ROCKER DPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Green | ON OFF, Vertical | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 22.00mm | -30°C ~ 65°C | CSA, UL |
|
|
R1966IBLKBLKBFSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
PRASD3-16F-BB0FWSWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
|
PRASD2-16F-BB0EWSWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Black | I II | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
|
PRASD2-16F-BB000SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
|
PRBSD1-16F-BB0DWSWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
PRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -20°C ~ 85°C | UL |
|
|
PRBSD3-16F-BB0FWSWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
PRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | -20°C ~ 85°C | UL |
|
TRD13D10QCSWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
TRD | Bulk | Obsolete | Panel Mount, Threaded Body with Nut | SPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
