Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

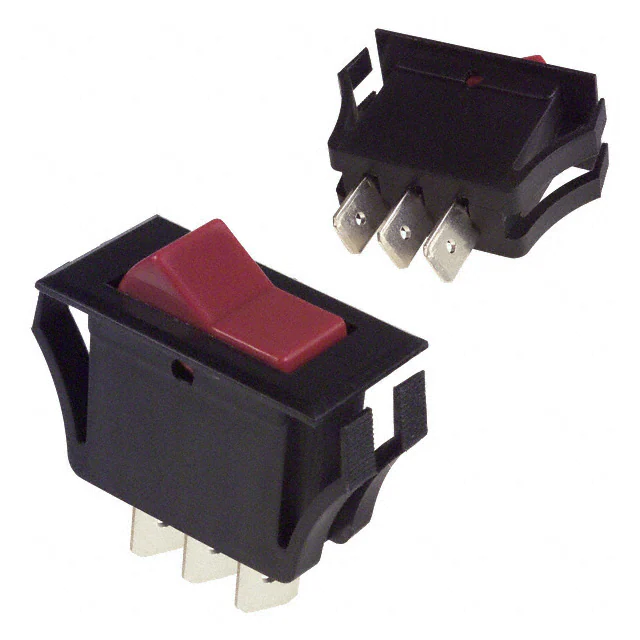

C121J13S205QFSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|

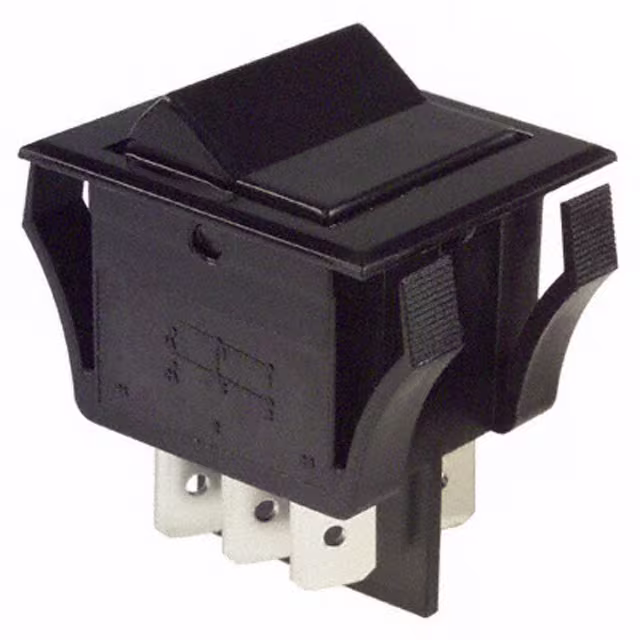

C221J12S205QFSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|

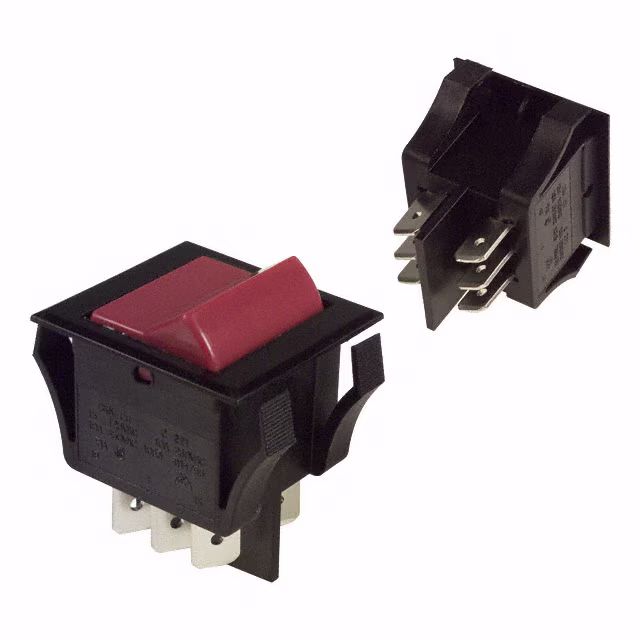

C221J13S205QFSWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|

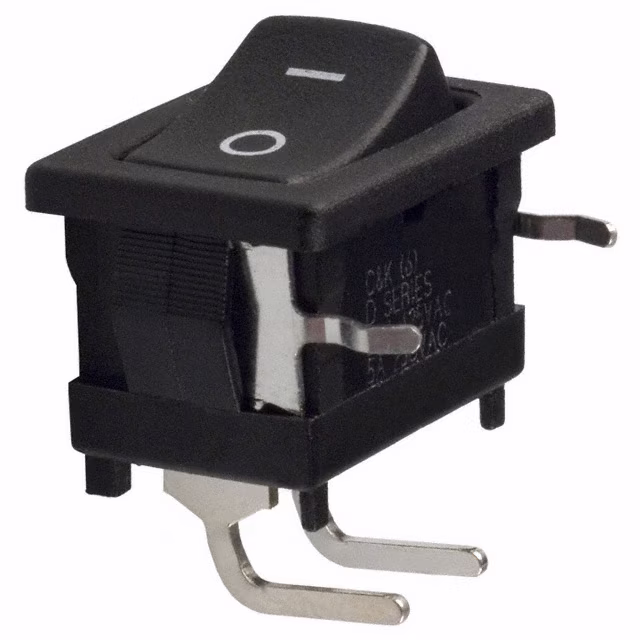

D502J12S2AHQFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
D | Tray | Obsolete | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

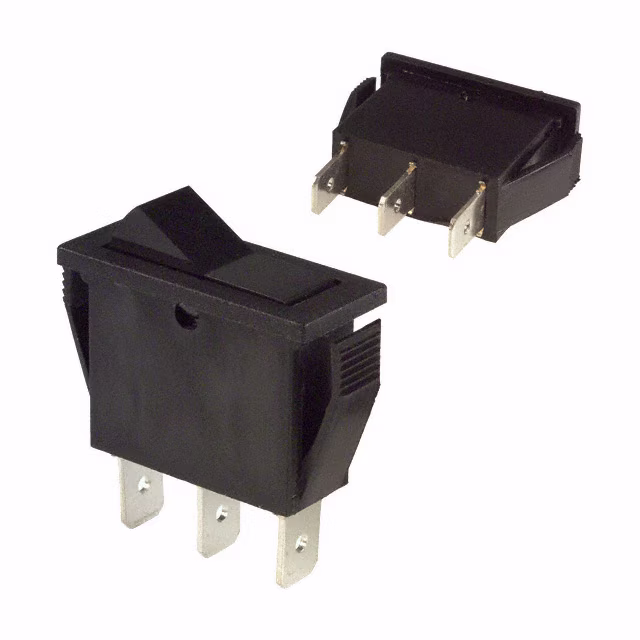

CA01J12207QSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|

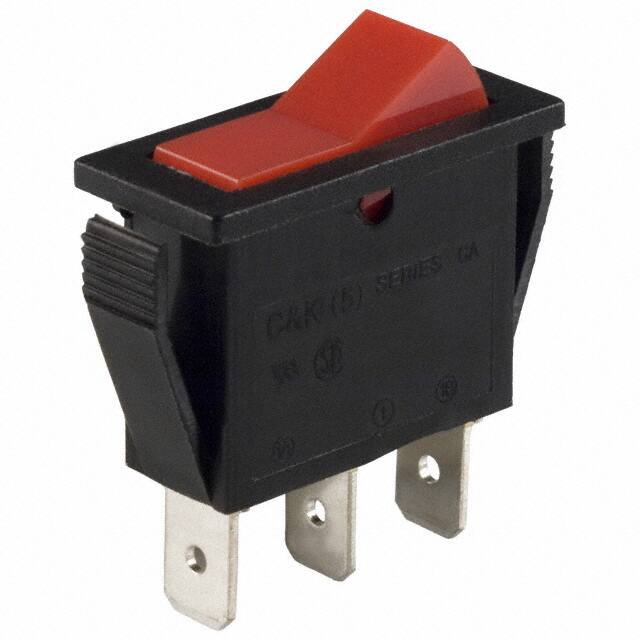

CA01J13207QSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|

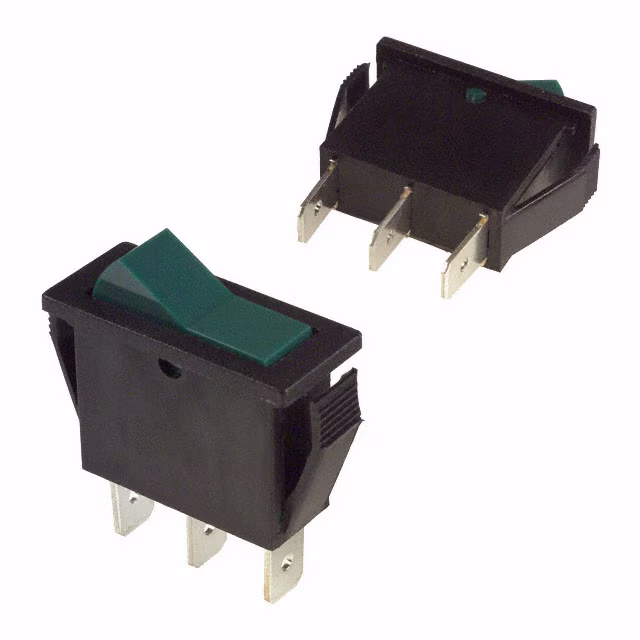

CA01J16207QSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Green | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|

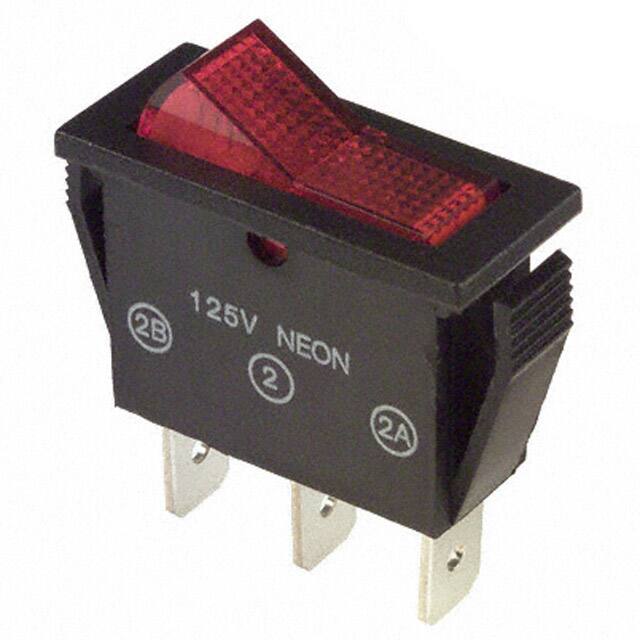

CA04J137207QSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|

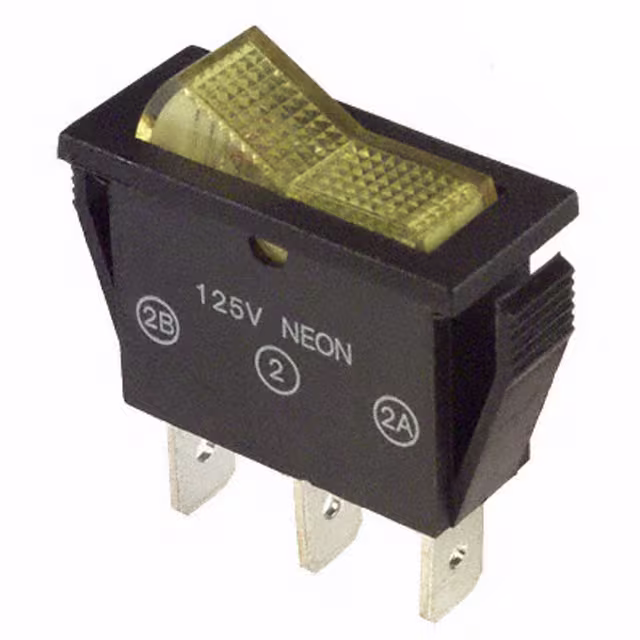

CA04J157207QSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Yellow | No Marking | Neon, Yellow | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|
CA24J767107QSWITCH ROCKER DPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 22.00mm | -30°C ~ 65°C | CSA, UL |
|
|
300DP6J2M6QESWITCH ROCKER SP3T 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | - |
|
|
E101J1ZBE1SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
E | Tray | Obsolete | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
GRS-2012-2504SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
7101J60V8LE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
DF62J12S2AHQFSWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
DF | Tray | Obsolete | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
|
300SP1J3BLKVS4QESWITCH ROCKER SPDT 5A 120V |
0 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

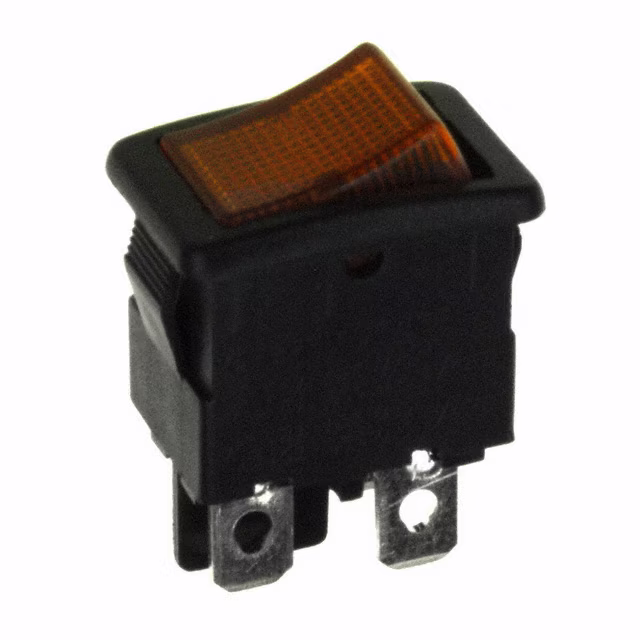

LRA32H2BBALNSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
LR | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|

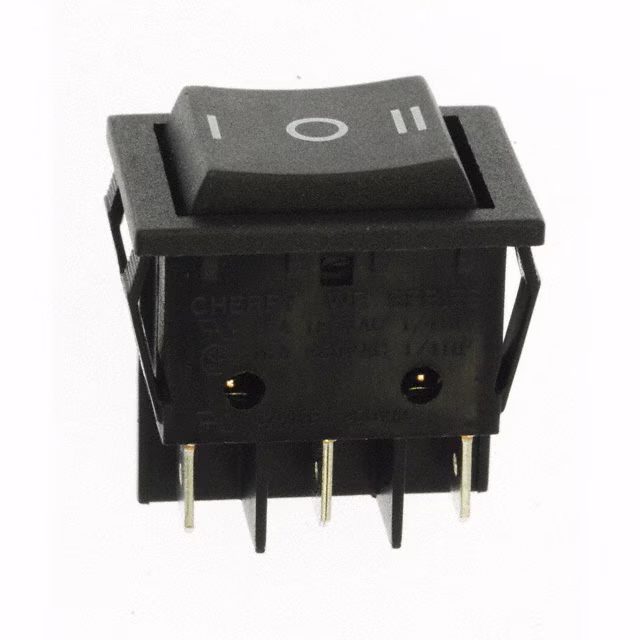

WRG34F2HBBNNSWITCH ROCKER DPDT 16A 125V |
0 |
|
- |
WR | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

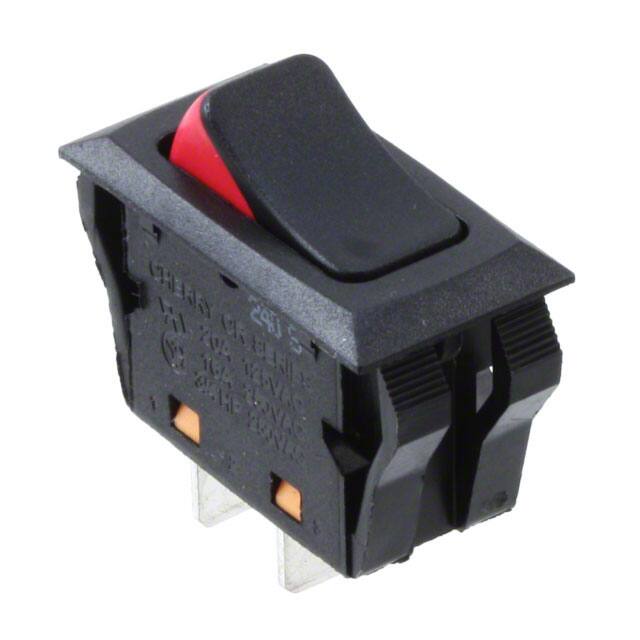

CRE22F4BBBNWSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
CR | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP42 | Two-Tone Rocker | Rectangular - 28.50mm x 13.80mm | -20°C ~ 85°C | - |
|
C121J12S205QASWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
