Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HR28D1A71BR1-11-RBRC1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Arrow Up, Arrow Down | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR28D1A71BW1-11-RBRC1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Arrow Up, Arrow Down | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR28D1A71BW1-11-RKRL4SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Arrow Left, Shovel Horizontal | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KR45CAKKKGROCKER SWITCH KG PROTECTED |
0 |
|
Datasheet |
KR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | LED, Green/Green | 24 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KR47CAKKKGROCKER SWITCH KG PROTECTED |
0 |
|
Datasheet |
KR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | LED, Green/Green | 24 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
LA3D12C01-3AZ68-100SWITCH ROCKER DPST/DPDT 20A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPST + DPDT | On-Off, On-On | 20A (DC) | - | 12 V | Concave (Curved) - Illuminated | - | Low Beam, Vertical | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
KR45DDKKTG22NXXXX22ROCKER SWITCH KG PROTECTED |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR46FDKCMG26N04XX03ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B323J71V6G2SWITCH ROCKER 3PDT 0.5VA 28V |
0 |
|
- |
B | Bulk | Active | Through Hole | 3PDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | CSA, UL |
|
|
B421J11ZQ22MSWITCH ROCKER 4PDT 6A 125V |
0 |
|
Datasheet |
B | Bulk | Active | Panel Mount, Snap-In | 4PDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.20mm x 11.91mm | -30°C ~ 85°C | CSA, UL |
|

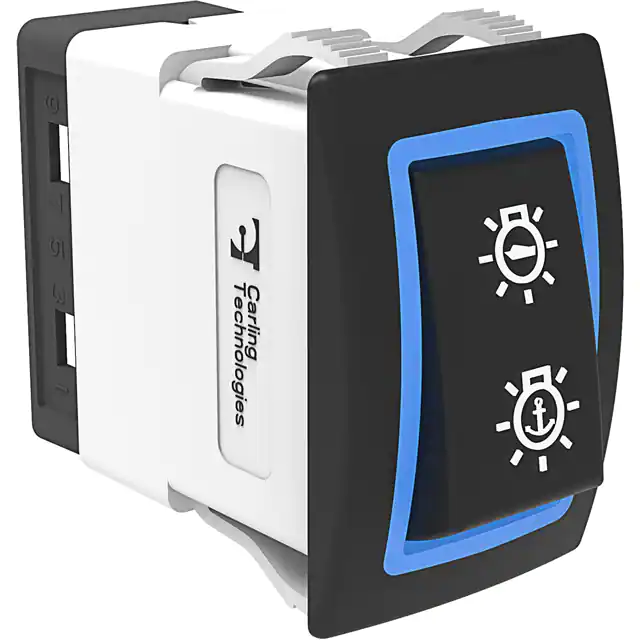

HR28D1A11BW1-11-YKUS1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Box | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Running Lights - Anchor Light, Vertical | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR28D1A11BR1-11-RBRC1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Arrow Up, Arrow Down | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR28D1A11BR1-11-WSWT4SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | UP, WATER PUMP | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR28D1A11BR1-11-WSWT2SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | UP, WATER PUMP | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR28D1A31GZ1-11-RBRC1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Arrow Up, Arrow Down | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
B423J71AV2B2SWITCH ROCKER 4PDT 0.5VA 28V |
0 |
|
- |
B | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | CSA, UL |
|
|
KR47DDKTTG22N01XX02ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B423J1CB2SWITCH ROCKER 4PDT 0.5VA 28V |
0 |
|
Datasheet |
B | Bulk | Active | Panel Mount, Flange | 4PDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
AML24EBA2BA04SWITCH ROCKER SPDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|

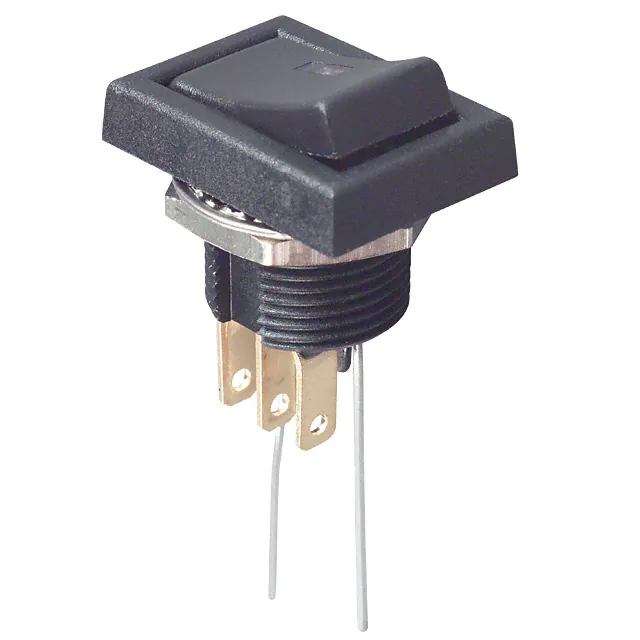

TRD11F10QCLR2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
