Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HR26D1A11BW1-11-00000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR26D1A11GW1-11-00000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Green/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR18D1B11BW1-11-PMVV1SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Fast - Slow, Vertical | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR22D1A11GW1-11-00000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Green/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR22D1A11BW1-11-00000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR18D1A11BR1-11-00000SWITCH ROCKER SPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR24D1A11GW1-11-00000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Green/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR22D1A11BB1-11-00000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR24D1A11BW1-11-00000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR24D1A11BA1-11-00000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Amber/Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR22D1A31BZ1-11-00000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR26D1B11BW1-11-00000SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
HR22D1A11BR1-11-00000SWITCH ROCKER DPST-NO 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 20A (DC) | - | 12 V | Flat - Illuminated | Black | No Marking | LED, Blue/Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
L1511B0N1-3ZA00-000SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 0.4VA (DC) | - | 28 V | Concave (Curved) - Illuminated | - | No Marking | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
V8M4U66C-FAACNU-1RHSWITCH ROCKER SPDT 0.4VA 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (DC), 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | Interior Light, Vertical | Incandescent, White/White | 12 VAC/DC | Solder Lug | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V8M4U66C-FAACPJ-1PJSWITCH ROCKER SPDT 0.4VA 12V |
0 |
|
Datasheet |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (DC), 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | Interior Light, Vertical | Incandescent, White/White | 12 VAC/DC | Solder Lug | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

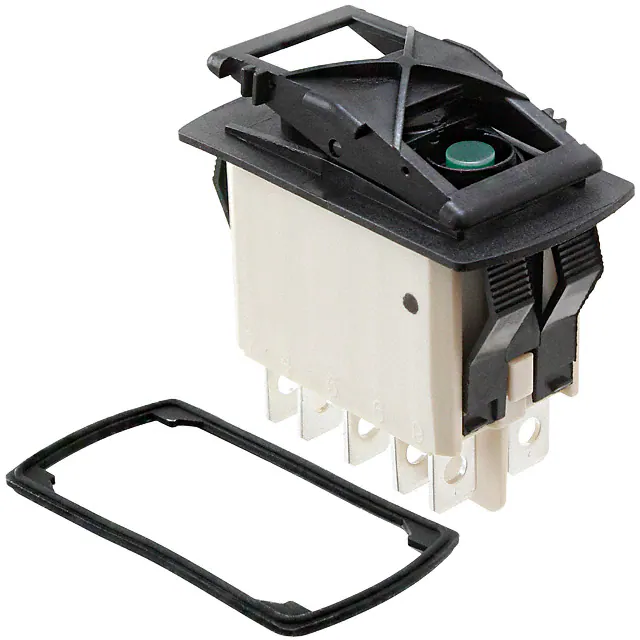

KR45CAKEEGSWITCH ROCKER DPDT 10A 24V |
0 |
|
Datasheet |
KR | Tray | Active | Panel Mount, Snap-In | DPDT | On-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
B423J71AV2Q3SWITCH ROCKER 4PDT 6A 125V |
0 |
|
- |
B | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | CSA, UL |
|
|
HR24D1A11BA1-11-PMVV1SWITCH ROCKER DPDT 20A 12V |
0 |
|
Datasheet |
HR | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (DC) | - | 12 V | Flat - Illuminated | Black | Fast - Slow, Vertical | LED, Amber/Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
SW3831DSWITCH ROCKER 3PST 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PST | On-Off | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
