Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA2E12C01-3AZ68-100SWITCH ROCKER SPST/SPDT 15A 12V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPST + SPDT | On-Off, On-On | 15A (DC) | - | 12 V | Concave (Curved) - Illuminated | - | Low Beam, Vertical | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
AML24FBE2AA01SWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
KR45DDKKTG22NXXXX55ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR45DDKESG22NXXXX22ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR453DKKTG22N64XXXXROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR44DDKTTG22N050454ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SW3832D/USWITCH ROCKER 3PDT 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

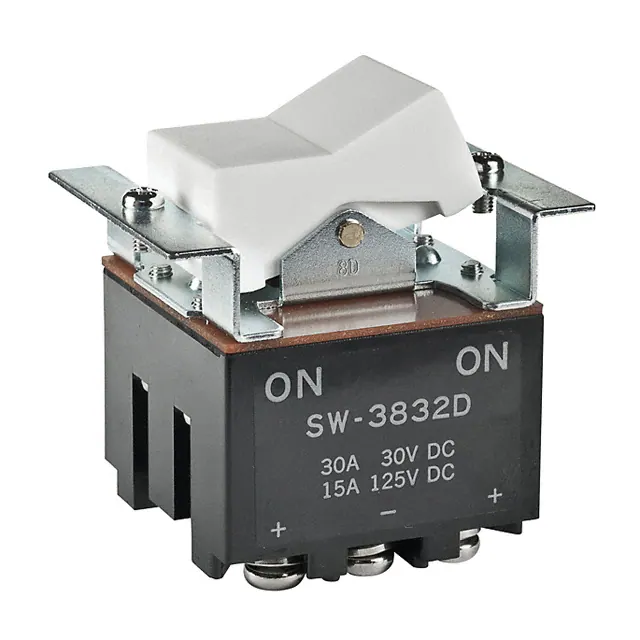

SW3832DSWITCH ROCKER 3PDT 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
AML26FBB2AA01YXSWITCH ROCKER SPDT 3A 125V |
3 |
|
Datasheet |
AML26 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Yellow | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
L2811CCH1-AMG00-000SWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 0.4VA (DC) | - | 28 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
B323J71V20B2SWITCH ROCKER 3PDT 0.5VA 28V |
0 |
|
- |
B | Bulk | Active | Through Hole | 3PDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
SW3833D/UCSWITCH ROCKER 3PDT 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
TRD23S10WL04SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | Mom-Off-Mom | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|
|
KR47DAKEFG24N01XX02ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KR44DDKTTG22N050421ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
0126360000SWITCH ROCKER SPST 250V |
0 |
|
Datasheet |
EG | Bulk | Active | - | SPST | On-Off | - | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | - | - | - | -25°C ~ 85°C | - |
|
|
KR49CAKKKG22N010201ROCKER SWITCH KG PROTECTED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SW3833DSWITCH ROCKER 3PDT 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3833D/USWITCH ROCKER 3PDT 30A 30V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
AML24EBA2AC02SWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
