RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R516332100IC RF SWITCH SPDT 8GHZ MODULE |
147 |
|
Datasheet |
- | Module | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 8GHz | 40dB (min) | 0.5dB (max) | 8GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
R570312000IC RF SWITCH SPDT 3GHZ MODULE |
44 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 3GHz | 80dB (min) | 0.15dB (max) | 3GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
R570313000IC RF SWITCH SPDT 3GHZ MODULE |
30 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 3GHz | 80dB (min) | 0.15dB (max) | 3GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|
ARD10024IC RF SWITCH SPDT 18GHZ |
26 |
|
Datasheet |
ARD | Module, Pin Contacts | Bulk | Active | General Purpose | Reflective | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 24V | -55°C ~ 85°C | - | - | - | - |
|
R570413000IC RF SWITCH SPDT 18GHZ MODULE |
61 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.35dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | Module |
|
R570412030IC RF SWITCH SPDT 18GHZ MODULE |
48 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 60dB | 0.5dB | 18GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
R516432100IC RF SWITCH SPDT 18GHZ MODULE |
79 |
|
Datasheet |
- | Module | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 40dB (min) | 1dB (max) | 18GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
.jpg)
|
ADRF5044BCCZNIC RF SWITCH SP4T 30GHZ 24LGA |
477 |
|
Datasheet |
- | 24-VFLGA Exposed Pad | Strip | Active | General Purpose | - | SP4T | 100MHz ~ 30GHz | 43dB | 2.6dB | 30GHz | 28dBm | 50dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C (TC) | - | - | Surface Mount | 24-LGA (4x4) |
|
|
ADRF5044BCCZN-R7IC RF SWITCH SP4T 30GHZ 24LGA |
286 |
|
Datasheet |
- | 24-VFLGA Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SP4T | 100MHz ~ 30GHz | 43dB | 2.6dB | 30GHz | 28dBm | 50dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C (TC) | - | - | Surface Mount | 24-LGA (4x4) |
|
R516732100IC RF SWITCH SPDT 26.5GHZ MODULE |
50 |
|
Datasheet |
- | Module | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 26.5GHz | 40dB (min) | 1.6dB (max) | 26.5GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | Module |
|
MSW2041-204IC RF SWITCH SPDT 4GHZ CS204 |
48 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | ISM | - | SPDT | 400MHz ~ 4GHz | 33dB | 0.5dB | 4GHz | - | 65dBm | - | 50Ohm | 5V, 28V, 125V | -65°C ~ 125°C | - | - | Surface Mount | CS204 |
|

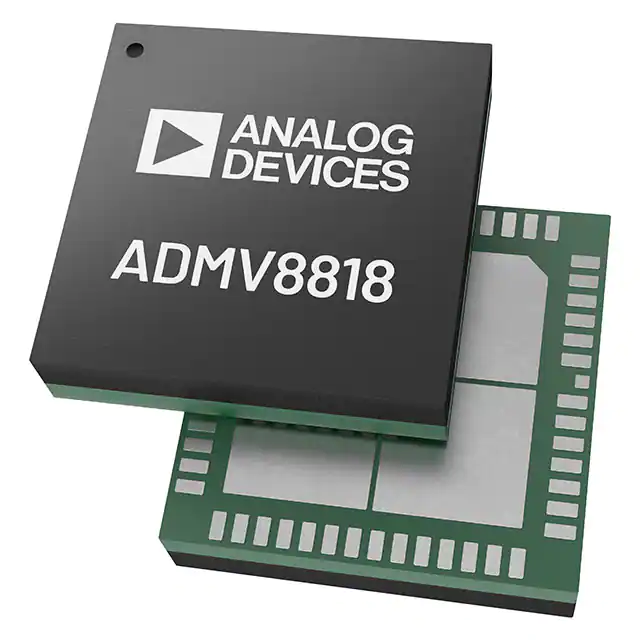

ADMV8818SCCZ-EPIC RF SWITCH 4XSP5T 18GHZ 56LGA |
12 |
|
Datasheet |
- | 56-TFLGA Exposed Pad | Tray | Active | Radar | - | 4 x SP5T | 2GHz ~ 18GHz | - | -14.6dB | 18GHz | - | 45dBm | - | 50Ohm | ±2.4V ~ 2.6V, 3.2V ~ 3.4V | -55°C ~ 105°C | - | - | Surface Mount | 56-LGA (9x9) |
|
BGS12WN6E6329XTSA1IC RF SWITCH SPDT 9GHZ CELL WIFI |
7,917 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | Bluetooth, UWB, WiFi, WLAN | Reflective | SPDT | 50MHz ~ 9GHz | 22dB | 1.12dB | 9GHz | - | 70dBm | DC Blocked | 50Ohm | 1.65V ~ 3.6V | -40°C ~ 85°C (TA) | - | - | Surface Mount | PG-TSNP-6-2 |
|
SKYA21024IC RF SWITCH SPDT 6GHZ 6QFN |
20,066 |
|
Datasheet |
- | 6-XFQFN | Tape & Reel (TR) | Active | 802.11a/b/g/n/ac, ISM, WLAN | - | SPDT | 10MHz ~ 6GHz | 15dB | 0.7dB | 6GHz | - | 57dBm | - | 50Ohm | 2.5V ~ 3.5V | -40°C ~ 90°C | - | - | Surface Mount | 6-QFN (1x1) |
.jpg)
|
BGSA143GL10E6327XTSA1IC RF SWITCH SP4T 6GHZ TSLP10-2 |
7,471 |
|
Datasheet |
- | 10-XFLGA | Tape & Reel (TR) | Active | General Purpose | - | SP4T | 6GHz | - | - | - | - | - | - | - | 42V | - | - | - | Surface Mount | PG-TSLP-10-2 |
|
BGSA14GN10E6327XTSA1IC RF SWITCH SP4T 5GHZ TSNP10-1 |
6,255 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | Cellular, 3G, 4G | - | SP4T | 100MHz ~ 5GHz | 20dB | 0.46dB | 2.69GHz | - | - | Single Line Control | 50Ohm | 1.8V ~ 3.6V | -30°C ~ 85°C | - | - | Surface Mount | PG-TSNP-10-1 |
|
|
NJG1816K75-TE1IC RF SWITCH SPDT 3GHZ 6DFN |
1,063 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | SIGFOX, LoRaWAN, Wi-SUN | - | SPDT | 50MHz ~ 3GHz | 30dB | 0.45dB | 920MHz | - | - | - | 50Ohm | 1.6V ~ 4V | -40°C ~ 105°C | - | - | Surface Mount | 6-DFN (1x1) |
|
|
BGS14M8U9E6327XUSA1IC RF SWITCH SP4T HIGH PWR |
4,500 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PE42750MLAA-ZIC RF SWITCH SPDT 2.2GHZ 12QFN |
5,906 |
|
Datasheet |
UltraCMOS® | 12-WFQFN Exposed Pad | Tape & Reel (TR) | Active | CATV | Absorptive | SPDT | 5MHz ~ 2.2GHz | 57dB | 1.7dB | 2.2GHz | 23.5dBm | 47.5dBm | - | 75Ohm | 2.7V ~ 3.63V | -40°C ~ 85°C | - | - | Surface Mount | 12-QFN (3x3) |
|
BGSX22G5A10E6327XTSA1IC RF SWITCH DPDT 6GHZ ATSLP10 |
13,391 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | LTE, W-CDMA | - | DPDT | 100MHz ~ 6GHz | 38dB | 1.1dB | 5.15GHz ~ 5.925GHz | - | 80dBm | - | 50Ohm | 1.65V ~ 3.4V | -40°C ~ 85°C (TA) | - | - | Surface Mount | PG-ATSLP-10-50 |
