RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKY13347-360LFIC RF SWITCH SPST 3GHZ 8DFN |
1,887 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPST | 500MHz ~ 3GHz | 30dB | 0.8dB | 3GHz | 31dBm | 40dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (2x2) |
|
MASWSS0192TR-3000IC RF SWITCH SPDT 3GHZ SC70-6 |
15,059 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 13.5dB | 0.35dB | 3GHz | 28.5dBm | - | - | - | - | -40°C ~ 85°C | - | - | - | SC-70-6 (SOT-363) |
|
HMC544AEIC RF SWITCH SPDT 4GHZ SOT23-6 |
558 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMax, WLAN | - | SPDT | 0Hz ~ 4GHz | 12dB | 0.7dB | 4GHz | - | 60dBm | - | 50Ohm | 3V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
MASWSS0157TR-3000IC RF SWITCH SPDT 2.5GHZ 8SOIC |
14,152 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Cellular | Reflective | SPDT | 0Hz ~ 2.5GHz | 24dB | 0.6dB | 2GHz | 27dBm | 45dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 8-SOIC |
|
HMC221BEIC RF SWITCH SPDT 3GHZ SOT23-6 |
470 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | General Purpose | - | SPDT | 10kHz ~ 3GHz | 18dB | 0.8dB | 3GHz | 29dBm | 54dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
MASW-007588-TR3000IC RF SWITCH SPDT 6GHZ 12QFN |
6,105 |
|
Datasheet |
- | 12-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 802.11a/b/g | Reflective | SPDT | 0Hz ~ 6GHz | 26dB | 0.85dB | 5.8GHz | 36dBm | 54dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 12-PQFN (3x3) |
|
ADG901BRMZ-REEL7IC RF SWITCH SPST 2.5GHZ 8MSOP |
1,322 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | ASK/FSK | Absorptive | SPST | 0Hz ~ 4.5GHz | 40dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
ADG902BRMZIC RF SWITCH SPST 2.5GHZ 8MSOP |
244 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | General Purpose | Reflective | SPST | 0Hz ~ 2.5GHz | 40dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
ADG901BRMZIC RF SWITCH SPST 2.5GHZ 8MSOP |
226 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | General Purpose | Absorptive | SPST | 0Hz ~ 2.5GHz | 40dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | 50Ohm | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
ADG918BRMZ-REEL7IC RF SWITCH SPDT 2GHZ 8MSOP |
7,366 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 2GHz | 37dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | - | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
ADG918BRMZ-500RL7IC RF SWITCH SPDT 2GHZ 8MSOP |
3,326 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 2GHz | 37dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | - | 1.65V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
HMC435AMS8GEIC RF SWITCH SPDT 4GHZ 8MSOP |
502 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 4GHz | 48dB | 0.8dB | 2.5GHz | 30dBm | 53dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP-EP |
|
HMC194AMS8EIC RF SWITCH SPDT 3GHZ 8MSOP |
891 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Strip | Active | General Purpose | - | SPDT | 0Hz ~ 3GHz | 38dB | 0.5dB | 2.5GHz | 29dBm | 53dBm | - | 50Ohm | 3V ~ 7V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|

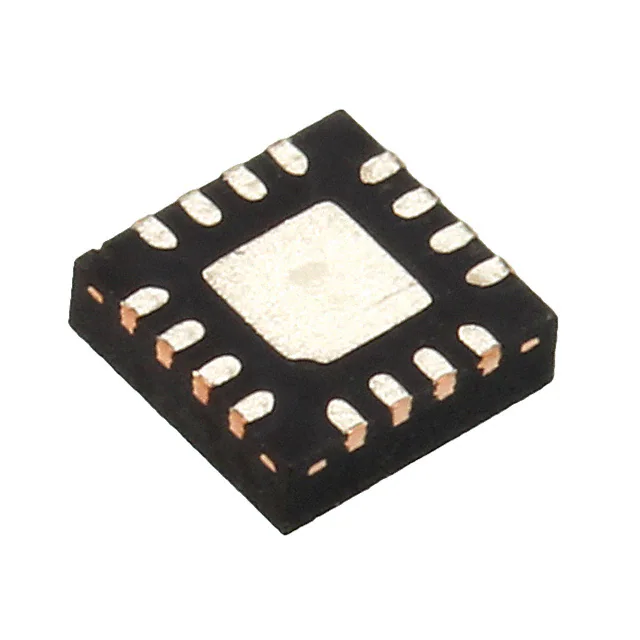

MASW-007813-TR3000IC RF SWITCH SP4T 3GHZ 16QFN |
4,448 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | CDMA, GSM | Reflective | SP4T | 0Hz ~ 3GHz | 23dB | 1dB | 3GHz | - | - | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 16-PQFN (3x3) |
|
|
HMC544AIC RF SWITCH SPDT 4GHZ SOT23-6 |
317 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMax, WLAN | - | SPDT | 0Hz ~ 4GHz | 12dB | 0.7dB | 4GHz | 35dBm | 60dBm | - | 50Ohm | 3V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
HMC199AMS8EIC RF SWITCH SPDT 2.5GHZ 8MSOP |
116 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Strip | Active | ISM | - | SPDT | 0Hz ~ 2.5GHz | 25dB | 0.6dB | 2GHz, 2.5GHz | 28dBm | 55dBm | - | 50Ohm | 3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
HMC574AMS8EIC RF SWITCH SPDT 3GHZ 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Strip | Active | Cellular, WLAN | - | SPDT | 0Hz ~ 3GHz | 20dB | 0.5dB | 3GHz | 39dBm | 65dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
HMC536MS8GEIC RF SWITCH SPDT 6GHZ 8MSG |
87 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Strip | Active | General Purpose | Reflective | SPDT | 0Hz ~ 6GHz | 32dB | 0.7dB | 6GHz | - | 48dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-MSG |
|
|
HMC550AEIC RF SWITCH SPST 6GHZ SOT23-6 |
1,094 |
|
Datasheet |
- | SOT-23-6 | Strip | Active | WiMAX / WiBro | Reflective | SPST | 0Hz ~ 6GHz | 12dB | 0.7dB | 6GHz | 32dBm | 52dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
HMC550AETRIC RF SWITCH SPST 6GHZ SOT23-6 |
3,416 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | WiMax, WLAN | Reflective | SPST | 0Hz ~ 6GHz | 12dB | 0.7dB | 6GHz | - | 52dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
RF Switches Electronic Components
Explore RF Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
