BOM Upload
RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASW-011145-TR0500IC RF SWITCH SPDT 31GHZ 20QFN |
886 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 27GHz ~ 31GHz | 45dB | 1.3dB | 31GHz | 37dBm | 60dBm | - | 50Ohm | 3.465V | -40°C ~ 105°C | - | - | Surface Mount | 20-QFN (3x3) |
|

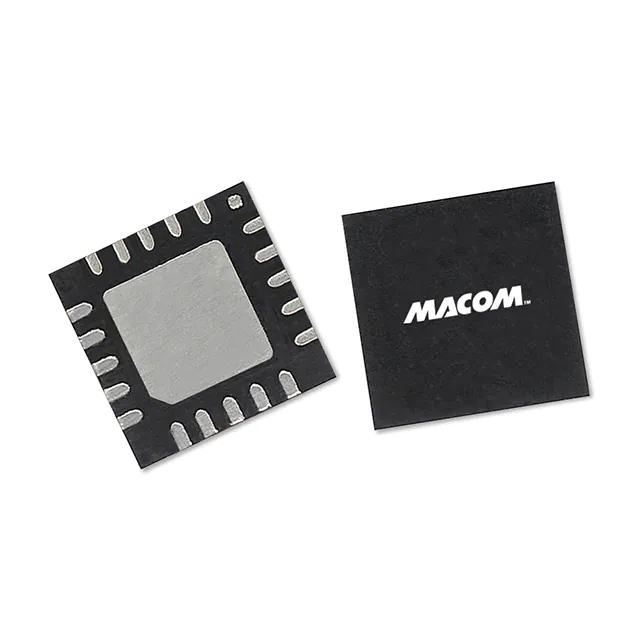

MASW-011120-TR1000IC RF SWITCH SPDT 6GHZ 20HQFN |
6,461 |
|
Datasheet |
- | 20-LQFN Exposed Pad | Tape & Reel (TR) | Active | 5G | - | SPDT | 30MHz ~ 6GHz | 44dB | - | - | - | - | - | - | 60V | - | - | - | Surface Mount | 20-HQFN (5x5) |
|
JSW4-272DR+IC RF SWITCH SP4T 2.7GHZ 14QFN |
2,150 |
|
Datasheet |
- | 14-UFQFN Exposed Pad | Tape & Reel (TR) | Active | CATV, SatCom | Reflective | SP4T | 5MHz ~ 2.7GHz | 27dB | 0.6dB | 2.7GHz | - | 59dBm | - | 50Ohm | 2.5V ~ 4.8V | -40°C ~ 85°C | - | - | Surface Mount | 14-QFN (2x2) |
|
HMC1118LP3DETRIC RF SWITCH SPDT 13GHZ 16LFCSP |
1,750 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 9kHz ~ 13GHz | 50dB | 2dB | 3GHz, 13GHz | 37dBm | 62dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
HMC1118LP3DEIC RF SWITCH SPDT 13GHZ 16LFCSP |
1,522 |
|
Datasheet |
- | 16-VFQFN Exposed Pad, CSP | Strip | Active | VSAT | Absorptive | SPDT | 9kHz ~ 13GHz | 50dB | 2dB | 3GHz, 13GHz | 37dBm | 62dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-LFCSP (3x3) |
|
MASW-010351-TR3000IC RF SWITCH SP5T 4GHZ 24QFN |
4,927 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SP5T | 10MHz ~ 4GHz | 60dB | 1.9dB | 2.1GHz, 4GHz | 27dBm | 50dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 24-PQFN (4x4) |
|
MASW-002103-13630PIC RF SWITCH SPDT 20GHZ |
5,885 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | - | SPDT | 5MHz ~ 20GHz | 27dB | 1.05dB | 20GHz | - | 66dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
PE42850B-XIC RF SWITCH SP5T 1GHZ 32QFN |
10,894 |
|
Datasheet |
UltraCMOS®, HaRP™ | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | - | SP5T | 30MHz ~ 1GHz | 30dB (min) | 0.8dB | 1GHz | - | 42dBm | - | 50Ohm | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | - | 32-QFN (5x5) |
|
ADRF5300BCCZNIC RF SWITCH SPDT 32GHZ 20LGA |
98 |
|
Datasheet |
- | 20-VFLGA Exposed Pad | Strip | Active | General Purpose | - | SPDT | 24GHz ~ 32GHz | 38dB | 1.1dB | 32GHz | - | 65dBm | - | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
HMC253AQS24ETRIC RF SWITCH SP8T 2.5GHZ 24QSOP |
889 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | CDMA | Absorptive | SP8T | 0Hz ~ 2.5GHz | 40dB | 1dB | 1GHz | 23dBm | 46dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
MASW-002103-13635PIC RF SWITCH SPDT 20GHZ |
335 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | - | SPDT | 50MHz ~ 20GHz | 27dB | 1.05dB | 20GHz | - | 66dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
MA4SW210B-1IC RF SWITCH SPDT 18GHZ DIE |
400 |
|
Datasheet |
HMIC™ | Die | Tray | Active | General Purpose | Reflective | SPDT | 2GHz ~ 18GHz | 40dB | 1.2dB | 18GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|

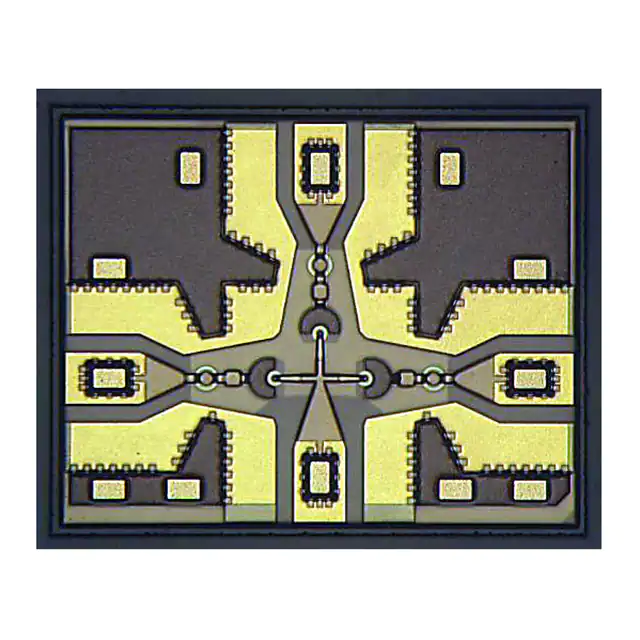

MASW-003103-13645PIC RF SWITCH SP3T 20GHZ |
1,522 |
|
Datasheet |
HMIC™ | 4-SMD Module Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SP3T | 50MHz ~ 20GHz | 31dB | 1.2dB | 20GHz | - | - | - | 50Ohm | -10V | -65°C ~ 150°C | - | - | - | - |
|
ADRF5040BCPZ-R7IC RF SWITCH SP4T 12GHZ 24LFCSP |
2,391 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Absorptive | SP4T | 9kHz ~ 12GHz | 34dB | 0.8dB | 8GHz | 37dBm | 53dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 24-LFCSP (4x4) |
|
|
ADRF5040BCPZIC RF SWITCH SP4T 12GHZ 24LFCSP |
1,893 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Strip | Active | VSAT | Absorptive | SP4T | 9kHz ~ 12GHz | 34dB | 0.8dB | 8GHz | 37dBm | 53dBm | - | 50Ohm | 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 24-LFCSP (4x4) |
|
MASW-011055-TR0500IC RF SWITCH SPDT 3GHZ 12HQFN |
15,202 |
|
Datasheet |
- | 12-LFQFN Exposed Pad | Tape & Reel (TR) | Active | - | Reflective | SPDT | 30MHz ~ 3GHz | 51dB | 0.35dB | 2GHz | - | 66dBm | - | - | 5V | -40°C ~ 85°C | - | - | Surface Mount | 12-HQFN (5x5) |
|
|
MASW-008322-TR1000IC RF SWITCH SPDT 20GHZ 24QFN |
3,093 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 0Hz ~ 20GHz | 40dB | 1.9dB | 20GHz | 30dBm | 48dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | 24-PQFN (4x4) |
|
|
PE42522C-XIC RF SWITCH SPDT 26.5GHZ 29LGA |
242 |
|
Datasheet |
- | 29-TFLGA Exposed Pad | Tape & Reel (TR) | Active | - | - | SPDT | 9kHz ~ 26.5GHz | 22dB | - | 2.5GHz,- | - | 59dBm | - | 50Ohm | 2.3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 29-LGA (4x4) |
|
MASW-011105-TR0500IC RF SWITCH SPDT 31GHZ 14QFN |
598 |
|
Datasheet |
- | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 17.7GHz ~ 31GHz | 30dB | 1.6dB | 31GHz | - | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 14-PQFN (3x3) |
|
HMC345ALP3ETRIC RF SWITCH SP4T 8GHZ 16QFN |
1,574 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SP4T | 0Hz ~ 8GHz | 33dB | 2.4dB | 8GHz | 28dBm | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
RF Switches Electronic Components
Explore RF Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
