BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGGBP.35.2.A.08RF ANT 1.561/1.575GHZ CER PATCH |
139 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 3 | - | - | 3.45dBi, 3.68dBi, 4.87dBi | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-868-CW-HD-SMARF ANT 868MHZ WHIP STR SMA MALE |
3,866 |
|
Datasheet |
HD | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 820MHz ~ 900MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.953" (75.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-20289EB56RF ANT, 2.4G WIFI, OMNI-DIRECTIO |
162 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.1125GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 7.125GHz | Whip, Tilt | 2 | 1.5, 2.5 | -7dB, -15dB | 4.5dBi, 5.5dBi, 3dBi, 6.5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 6.000" (152.40mm) | Wi-Fi |
|
|
ANT-19031EB78RF ANT, 4G/3G/2G (EXTERNAL SUCTI |
158 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 2.5, 3 | -6dB, -7dB | -0.5dBi, 1.5dBi, -0.5dBi, 0.5dBi | 5 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 7.283" (185.00mm) | 2G, 3G, 4G |
|
RFDPA131015IMBB301RF ANT 863-928MHZ IPEX DIPOLE |
2,776 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | Whip, Tilt | 1 | 2 | -10dB | 0.9dBi | - | Cable - 150mm | I-PEX | - | - | - | Connector Mount | 6.024" (153.00mm) | GSM |
|
1002292RF ANT 700/750MHZ FLAT 28.5MM |
545 |
|
Datasheet |
Prestta™ | Bulk | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 8 | 3, 5 | - | - | 2 W | Cable - 28.5mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
1005193-A01ANTENNA ASSY, UWB68 V SMA(M) |
996 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 6dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 0.031" (0.80mm) | UWB |
|
AEACAQ190012-S915RF ANT 915MHZ WHIP STR IPEX MHF |
2,460 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 2 | - | 3.5dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | ISM, LoRa, LPWAN, Sigfox |
|
|
ANT-450-HSW-TNCRF ANT 450MHZ WHIP TNC PLUG |
521 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz, 458.75MHz | 410MHz ~ 427MHz, 450MHz ~ 467.5MHz | Whip, Right Angle | 2 | 1.2, 1.6 | - | 3.1dBi, 2.3dBi | 25 W | - | TNC Male | - | - | - | Connector Mount | 7.940" (201.68mm) | LTE |
|
DELTA7A/X/SMAM/RP/S/11RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
116 |
|
Datasheet |
DELTA 7A | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Whip, Tilt | 2 | 2 | - | 1.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | ISM |
|
ANT-418-CW-RAHRF ANT 418MHZ WHIP RA RP-SMA MAL |
826 |
|
Datasheet |
RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 410MHz ~ 426MHz | Whip, Right Angle | 1 | 1.9 | - | -6.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
ANT-450-HSW-NPRF ANT 450MHZ LTE WHIP N PLUG |
650 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz, 458.75MHz | 410MHz ~ 427MHz, 450MHz ~ 467.5MHz | Whip, Right Angle | 2 | 1.2, 1.6 | - | 3.1dBi, 2.3dBi | 25 W | - | N Type Male | - | - | - | Connector Mount | 8.090" (205.49mm) | LTE |
|

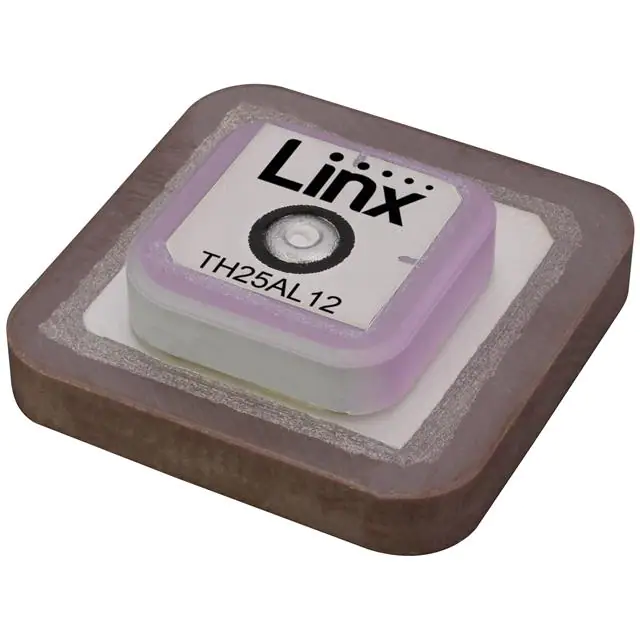

ANT-GNCP-TH25AL12RF ANT GNSS PATCH L1 L2 25MM PIN |
781 |
|
Datasheet |
GNCP | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.228GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.215GHz ~ 1.24GHz, 1.243GHz ~ 1.25GHz, 1.559GHz ~ 1.592GHz | Ceramic Patch | 5 | 12.1, 4.5, 5, 5, 2.1 | -1.4dB, -4dB, -3.5dB, -3.5dB, -9.1dB | -1.9dBi, -0.9dBi, 0.9dBi, 3.1dBi, 4dBi | 8 W | - | Pin | - | - | - | Solder | 0.315" (8.00mm) | Beidou, COMPASS, Galileo, GLONASS, GPS |
|
AEACAQ190012-S868RF ANT 868MHZ WHIP STR IPEX MHF |
299 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | - | 3.5dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | ISM, LoRa, LPWAN, Sigfox |
|
PRO-IS-590INSIDE FLEXFOIL GSM/NB-IOT MHF4 |
162 |
|
Datasheet |
Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -6dB | 5.5dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.005" (0.13mm) | EDGE, GPRS, GSM, LTE, UMTS |
|
APARM2504-C2GRRF ANT GPS+IRIDIUM CER PATCH |
273 |
|
Datasheet |
APAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.621GHz | 1.575GHz, 1.61GHz ~ 1.625GHz | Ceramic Patch | 2 | 1.8 | - | 2dBi, 3dBi | - | - | Solder | - | - | - | Through Hole | 0.157" (4.00mm) | GPS, Iridium |
|
66089-0430RF ANT 425MHZ WHIP STR U.FL CONN |
665 |
|
Datasheet |
66089 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 425MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.992" (203.00mm) | - |
|
|
W5151ANTENNA 5G NR 4G LTE BLADE |
662 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 4.2275GHz | 617MHz ~ 960MHz, 1.43GHz ~ 7.125GHz | Blade, Tilt/Swivel | 2 | - | -6dB | 0.9dBi, 3.8dBi | 3 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.789" (223.24mm) | 2G, 3G, 4G, 5G, Wi-Fi 6E |
|
W3215ANT CER 902-928MHZ 40X40X6 PIN |
171 |
|
Datasheet |
Patch Antenna | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | - | -4dB, -20dB | 5dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM |
|
RFDPA870900SBAB8G1RF ANT 2.4GHZ WHIP TILT RP-SMA |
755 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | 2 | -10dB | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
