| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2118308-1RF ANT 829MHZ/1.94GHZ PCB TRACE |
2,585 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 3 | - | 3.9dBi | - | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.052" (1.31mm) | LTE |
|
ANT-20228WB56RF ANT, 5G&4G&3G&2G/NB-IOT/CAT M |
337 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 780MHz, 2.05GHz, 4.5GHz | 600MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3GHz ~ 6GHz | Whip, Tilt | 3 | 4, 5 | -3.5dB, -5dB | -3dBi, 4.5dBi, 0.5dBi, 5dBi, 1dBi, 6dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.598" (193.00mm) | 2G, 3G, 4G, 5G, LPWA |
|
|
YAT001CAGNSS RF ANTENNA |
969 |
|
- |
- | Tray | Active | Navigation | UHF (300MHz ~ 1GHz) | 1.176GHz, 1.561GHz | - | Ceramic Patch | 2 | 2 | - | -1dBi, 2dBi | - | Cable - 40mm | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
2136020001ANTENNA GPS L1/L2 STACKED |
102 |
|
Datasheet |
213602 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2275GHz, 1.575GHz | 1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -15dB | 2.1dBi, 5.3dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GNSS, GPS |
|
|
1005620GPS L1 & L5 CERAMIC PATCH ANTENN |
214 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.584GHz | 1.174GHz ~ 1.178GHz, 1.582GHz ~ 1.586GHz | Ceramic Patch | 2 | - | -10dB | 3.3dBic, 0.4dBic | - | - | - | - | - | - | Adhesive | 0.309" (7.85mm) | GNSS, GPS |
|
ANT-DK-LTE1MD-GAPL52MRF ANT 832MHZ/2.2GHZ WHP STR MAG |
166 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 832MHz, 2.2GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 1.92 | -10dB | 5dBi | 20 W | Cable - 2m | SMA | - | - | - | Magnetic | 4.409" (112.00mm) | LTE |
|
ANT1212JB27B1575ARF ANT 1.575GHZ CER PATCH IPEX |
260 |
|
Datasheet |
1212 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.581GHz | Ceramic Patch | 1 | 1.5 | - | -4.56dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
FXUB70.A.07.C.001RF ANT 850MHZ/1.575GHZ FLT PATCH |
1,109 |
|
Datasheet |
- | Bag | Active | AGPS, Cellular, WiFi | Wide Band | 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 3GHz | Flat Patch | 6 | 2, 2, 1.8, 1.7, 1.7, 2.3 | -10dB, -10dB, -11dB, -12dB, -12dB, -8dB | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPRS, GSM, HSPA, LTE, Wi-Fi |
|
FXP07.07.0100ARF ANT 850MHZ/900MHZ PCB TRACE |
300 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | - | - | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | AMPS, DCS, GSM, PCS, UMTS |
|
FXP14R.A.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
161 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | - | -7dB, -11dB, -12dB, -16dB, -12dB, -12dB | -1.5dBi, -3dBi, 1.5dBi, 2.5dBi, 2.5dBi, 2.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|
ALPHA40/1.5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
598 |
|
Datasheet |
ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
|
|
PA.176.AANT 5G/4G SUB 6 SMD 1700-6000MHZ |
922 |
|
- |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.5375GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.2GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | Chip | 7 | 3 | - | 3dBi, 3.3dBi, 3.8dBi, 4.5dBi, 3.7dBi, 3.6dBi, 2.8dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.118" (3.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|
DCP.5900.12.4.A.02RF ANT 5.9GHZ CER PATCH PIN ADH |
314 |
|
Datasheet |
- | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 1.8 | - | 6dBi | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | DSRC |
|
W5084KRF ANT 829MHZ/2.05GHZ BLADE SMA |
121 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.05GHz | 698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz | Blade | 2 | 2.5 | - | 4dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 9.009" (228.84mm) | LTE |
|
FXUWB01.07.0100CULTRA WIDE BAND FLEX ANTENNA 6GH |
492 |
|
- |
- | Bag | Active | - | SHF (f > 4GHz) | 6.49GHz, 6.99GHz | 5.95GHz ~ 6.74GHz, 6.24GHz ~ 7.03GHz, 6.74GHz ~ 7.24GHz | FlexPIFA | 2 | 2, 3 | - | 3.5dBi, 4dBi, 4.5dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
|
9001169F0-AA10L0100ANTENNA ASSY, GPS LNA |
890 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.559GHz ~ 1.591GHz | PCB Trace | 1 | - | 9dB | 15.81dB, 15.72dB, 14.84dB | - | Cable - 100mm, LNA, Filter | U.FL | - | - | - | Adhesive | - | Galileo, GPS |
|
AECB1102XS-3000SRF ANT 5G/4G/LTE/NBIOT/CAT BLADE |
191 |
|
Datasheet |
AECB | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Blade | 1 | 3.5 | - | 2dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.228" (5.80mm) | 4G, 5G, LTE |
|
ANT-433-MHW-RPS-SRF ANT 433MHZ WHP CTR ADH 79" |
262 |
|
Datasheet |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 453MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 1.2dBi | - | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 5.709" (145.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

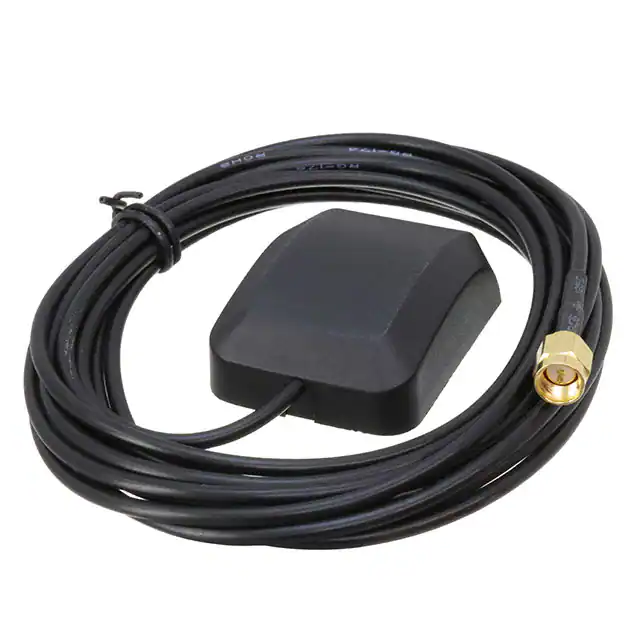

ANT-DK-GP1FP-GAP3M-1RF ANT 1.575GHZ MOLDED SMA MAGNT |
188 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Molded | 1 | 1.5 | - | 3dBi | - | Cable - 3m | SMA | - | - | - | Magnetic | 0.669" (17.00mm) | GPS |
|
ECHO11/0.2M/IPEX/S/S/12RF ANT 2.4GHZ PCB TRACE IPEX SMD |
213 |
|
Datasheet |
ECHO 11 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 2.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
