RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76000843RF ANT 850MHZ/900MHZ MODULE CAB |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Cellular, General ISM, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Module | 5 | - | - | 2dBi | - | Cable - 4m | - | - | - | - | Panel Mount | 0.571" (14.50mm) | GSM, UMTS, Wi-Fi, ZigBee™ |
|
|
76000844RF ANT 900MHZ/1.8GHZ FLAT BAR |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Bar | 4 | - | - | 1.5dBi | - | Cable - 3m | - | - | - | - | Adhesive | 0.250" (6.35mm) | - |
|
|
76002052RF ANT 850MHZ/900MHZ WHIP TILT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Tilt | 5 | - | - | 2dBi | - | - | Connector | - | - | - | Connector Mount | 2.756" (70.00mm) | - |
|

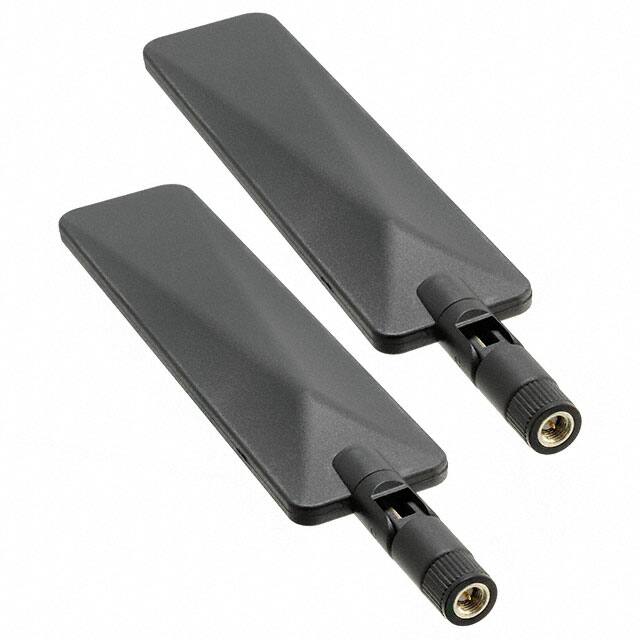

76000926-2RF ANT 700/850MHZ BLADE CONN MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Blade | 3 | 2.5 | - | 2dBi | 3 W | - | Connector | - | - | - | Connector Mount | 8.976" (228.00mm) | LTE |
|
|
DC-ANT-DBDP3-2RF ANT 850MHZ/900MHZ WHIP RA |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 5 | - | - | 3dBi | - | - | - | - | - | - | Connector Mount | 9.134" (232.00mm) | - |
|
33-1421-08-0200RF ANT 1.575/1.602GHZ CER PATCH |
0 |
|
Datasheet |
Accutenna® | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Chassis Mount | 0.285" (7.25mm) | GLONASS, GPS |
|
|
1551359-12X3 MIMO ANTENNA ASSEMBLY (5GHZ) |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WE70-AT001RF ANT 2.4GHZ/5GHZ WHIP STR MAG |
0 |
|
- |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz, 5GHz | Whip, Straight | 2 | - | - | - | - | - | - | - | - | - | Magnetic | 6.732" (171.00mm) | 802.11a/b/g |
|
33-2410NM-07-0000RF ANT 1.575/1.602GHZ DOME SMA |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Dome | 2 | 1.5 | - | 4.25dBic | - | LNA, Filter | SMA Female | IP67 | - | - | Chassis Mount | 0.594" (15.10mm) | GLONASS, GPS |
|
33-2412NM-00-0050RF ANT 1.575GHZ/1.602GHZ DOME |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 28dB | - | Cable - 50mm, LNA, Filter | SMA Male | IP67 | - | - | Chassis Mount | 0.594" (15.10mm) | GLONASS, GPS |
|
ANT-BEAD-86890RF ANT 868MHZ BEAD SLD TH |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Bead | 1 | 2 | -15dB | 0dBi | - | - | Solder | - | - | - | Through Hole | 0.354" (9.00mm) | General Purpose |
|
ANT-PCB3506-FLRF ANT 850/900MHZ PCB TRACE IPEX |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | PCB Trace | 4 | 3, 2.5, 2.5, 3 | - | 0dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | General Purpose |
|
ANT-PCB4242-FLRF ANT 800/900MHZ PCB TRACE 10CM |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | PCB Trace | 5 | 3 | - | 3dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | GSM |
|
ANT-PCB4520-FLRF ANT 850/900MHZ PCB TRACE 10CM |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | PCB Trace | 4 | 3 | - | 0dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | GSM |
|
OUTSIDE-LPQB 3G MIN PATCH ANTENNA +3DBM SM |
0 |
|
- |
- | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Module | 3 | 4 | - | 3dBi | - | Cable - 3m | SMA Male | - | - | - | Surface Mount | 0.630" (16.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-GSMGPSPCBRF ANT 892MHZ/1.575GHZ CER PATCH |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.575GHz, 1.9GHz | 824MHz ~ 960MHz, 1.56GHz ~ 1.58GHz, 1.71GHz ~ 1.99GHz | Ceramic Patch | 4 | 2.5 | - | 28dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | General Purpose |
|
|
A2400RF ANT 2.4GHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 0dBi | 200 W | - | NMO | - | - | - | Base Mount | - | - |
|
|
A75-001ANT DUCK A 75MHZ CNT |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A800WHIP AB 1/4 806-896MHZ |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A8065CTRF ANT 851MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 200 W | - | NMO | - | - | - | Base Mount | - | - |
