RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA301.A.AB.010RF ANT 1.4GHZ MODULE FAKRA ADH |
0 |
|
- |
- | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMB, Fakra | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
|
A10393RF ANT 850/900MHZ PCB TRACE SLD |
0 |
|
Datasheet |
Rubra | Tape & Reel (TR) | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 2.6 | -6dB | 1.8dBi, 3.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GSM, UMTS, WCDMA |
|
APAMPS-105RF ANT 900MHZ/1.575GHZ MOD ADH |
0 |
|
Datasheet |
APAMPS | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.575GHz, 1.8GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz | Module | 3 | 1.5, 2.0 | - | -1dBi, 1dBi, 5dBic | - | Cable - 3m, LNA | SMA Male (1), FME Female (1) | - | - | - | Adhesive | 0.622" (15.80mm) | GPS, GSM |
|

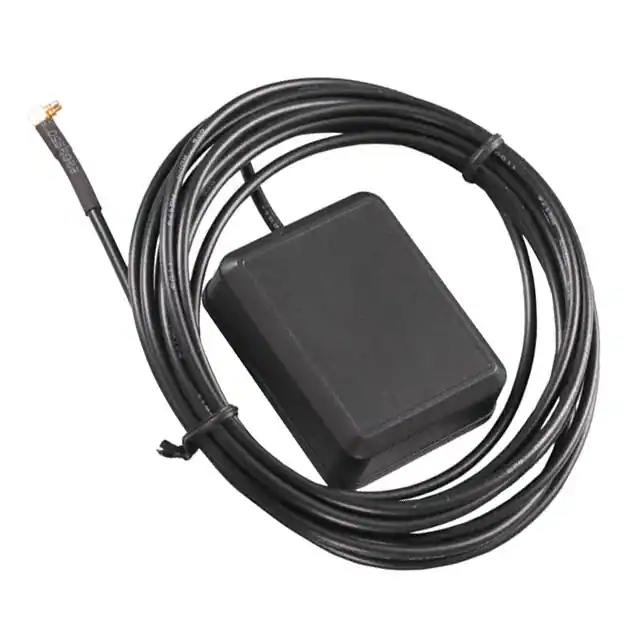

APAMP-110RF ANT 1.575GHZ MOD SMA MALE ADH |
0 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -32dB | 5dBic | - | - | SMA Male | - | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
GSA.8825.A.051M11RF ANT 892MHZ/1.9GHZ WHIP 0.5M |
0 |
|
Datasheet |
- | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2 | - | 2dBi | - | - | CRC9 | - | - | - | Clip | 5.512" (140.00mm) | GSM, UMTS |
|

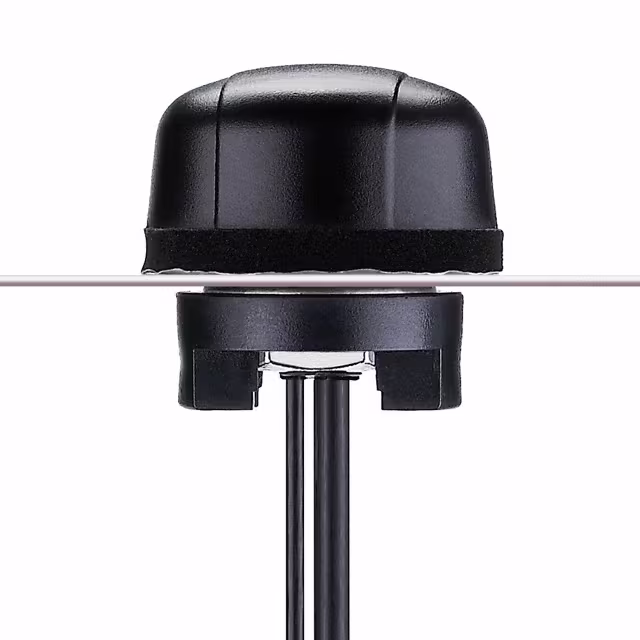

MA105.C.LB.001RF ANT 892MHZ/1.9GHZ DOME SMA ML |
0 |
|
- |
Hercules | Bag | Discontinued at Digi-Key | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -14dB, -25dB | 3.3dB, 4dB | 10 W | LNA, Filter | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, GPS, GSM, UMTS |
|

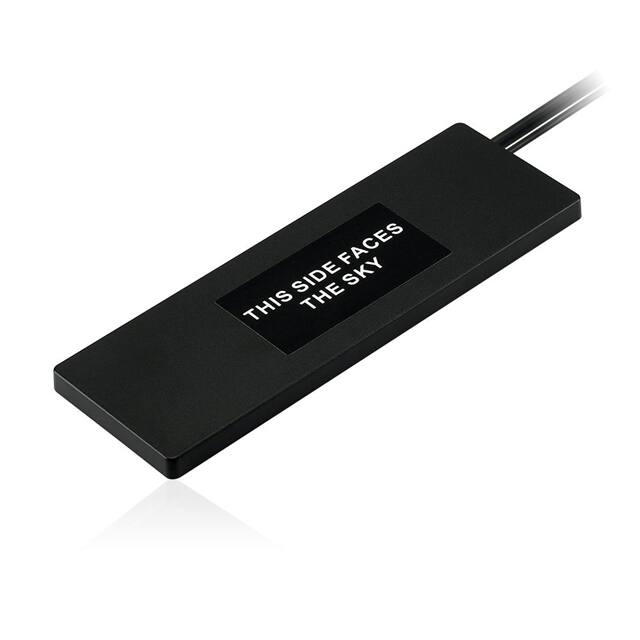

MA209.A.LB.001RF ANT 700/892MHZ FLAT BAR SMA |
0 |
|
Datasheet |
Stream Two | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 700MHz, 892MHz, 2GHz | 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz | Flat Bar | 3 | 1.24, 1.27 | -10dB | 1.98dBi, 3.25dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.157" (4.00mm) | CDMA, GPS, GSM, LTE, UMTS |
|
TL.01.1F11RF ANT 749MHZ/892MHZ DOME N MALE |
0 |
|
Datasheet |
Shockwave | Bag | Obsolete | Cellular, Navigation, WiFi | Wide Band | 749MHz, 892MHz, 1.5GHz, 1.9GHz, 2.6GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 5 | - | - | 2.6dBi, 2.5dBi, 1.2dBi, 3.2dBi, 2.8dBi | - | - | N Type Male | IP69K | - | - | Panel Mount | 3.446" (87.54mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
TL.10.1HH11WRF ANT 749MHZ/892MHZ DOME NMO |
0 |
|
Datasheet |
Shockwave | Bag | Discontinued at Digi-Key | Cellular, Navigation, WiFi | Wide Band | 749MHz, 892MHz, 1.5GHz, 1.9GHz, 2.6GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 5 | - | - | 2.6dBi, 2.5dBi, 1.2dBi, 3.2dBi, 2.8dBi | - | - | NMO | IP69K | - | - | Base Mount | 3.343" (84.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
ANT-2YAG16RF ANT 2.4GHZ YAGI SMA ML BRK MT |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Yagi, 15-Element | 1 | 2 | - | 16dBi | - | Cable - 2m | SMA Male | - | - | - | Bracket Mount | 21.654" (550.00mm) | WLAN |
|
OUTSIDE-2400RF ANT 2.4GHZ MODUL U.FL CHAS MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Module | 1 | 3 | - | 3dB | - | Cable - 70mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.630" (16.00mm) | Bluetooth, WLAN, Zigbee™ |
|
LDA312G7313F-237RF ANT 2.7GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.7GHz | - | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
2701348RF ANT 5GHZ PANEL N FEM CHAS MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | SHF (f > 4GHz) | 5GHz | 5.15GHz ~ 5.875GHz | Panel | 1 | 2 | - | 9dBi | - | - | N Type Female | IP67 | - | - | Chassis Mount | 3.976" (101.00mm) | - |
|
|
2692526RF ANT 2.4/5GHZ DOME N TYP PANEL |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.83GHz | Dome | 2 | 1.8 | - | 6dBi, 8dBi | - | Cable - 1m | N Type Female, SMA Male | IP68 | - | - | Panel Mount | 2.008" (51.00mm) | - |
|
|
2884936RF ANT 2.4GHZ PANEL SMA FEM CHAS |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 8dBi | - | - | SMA Female | IP55 | - | - | Chassis Mount | 3.976" (101.00mm) | - |
|
X000004RF ANT 850MHZ/900MHZ FLAT PATCH |
0 |
|
- |
ALPHA 1 | Bulk | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Flat Patch | 6 | 1.5 | - | 2.15dBi | - | Cable - 1m | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | GPRS, GSM |
|
X000005RF ANT WHIP STR SMA MALE CONN MT |
0 |
|
- |
Delta 1 | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | - | 824MHz ~ 960MHz, 1.71GHz ~ 1.785GHz, 1.805GHz ~ 2.4GHz | Whip, Straight | 4 | 1.5, 2.4 | - | 2.14dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.441" (62.00mm) | GPRS, GSM |
|
ACTPAT184-01-IPRF ANT 1.575GHZ CER PATCH CAB |
0 |
|
- |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | -10dB | 2.5dBic | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
AMCA52-2R710G-S1F-T4RF ANT 2.7GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.7GHz | 2.61GHz ~ 2.81GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
|
0600-00022RF ANT 2.4GHZ WHIP STR RP-SMA ML |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.087" (180.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
