RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YS3803RF ANT 393MHZ YAGI N FEM BRKT MT |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 393MHz | 380MHz ~ 406MHz | Yagi | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 20.157" (512.00mm) | - |
|
|
YS3805RF ANT 393MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 393MHz | 380MHz ~ 406MHz | Yagi, 5-Element | 1 | 2 | -10dB | 11.2dBi | 300 W | - | N Type Female | - | - | - | Bracket Mount | 14.625" (371.47mm) | - |
|
|
YS43012RF ANT 440MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Yagi, 12-Element | 1 | 1.5 | - | 11dBd | - | - | N Type Female | - | - | - | Bracket Mount | 72.000" (182.88cm) | - |
|
|
YS4305RF ANT 440MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Yagi, 5-Element | 1 | 1.5 | - | 9.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 37.000" (939.80mm) | - |
|
|
YS4503PLRF ANT 460MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Yagi, 3-Element | 1 | 2 | -10dB | 7.1dBd | 300 W | - | N Type Female | - | - | - | Bracket Mount | 13.500" (342.90mm) | - |
|
|
YS4505RF ANT 460MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Yagi, 5-Element | 1 | 1.5 | - | 9.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 37.000" (939.80mm) | - |
|
|
YS47012RF ANT 480MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Yagi, 12-Element | 1 | 1.5 | - | 11dBd | - | - | N Type Female | - | - | - | Bracket Mount | 72.000" (182.88cm) | - |
|
|
YS4906RF ANT 501MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 501MHz | 490MHz ~ 512MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
|
|
CR450RF ANT 460MHZ WHIP STR UHF FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 2dB | - | - | UHF Female | - | - | - | Bracket Mount | 17.008" (432.00mm) | - |
|
|
L118RF ANT 315MHZ WHIP STR |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 315MHz | 118MHz ~ 512MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | Connector Mount | - | - |
|
AA.161.301111RF ANT 1.6GHZ MOD SMA ML MAG 3M |
0 |
|
Datasheet |
Dominator™ | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.61GHz | Module | 1 | 2 | -15.8, -6.2dB | 29dBic, 30dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.843" (21.40mm) | GLONASS, GPS |
|
|
W4120EG5000RF ANT 850MHZ/900MHZ FLAT BAR |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | SMA Male (1), MMCX (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|

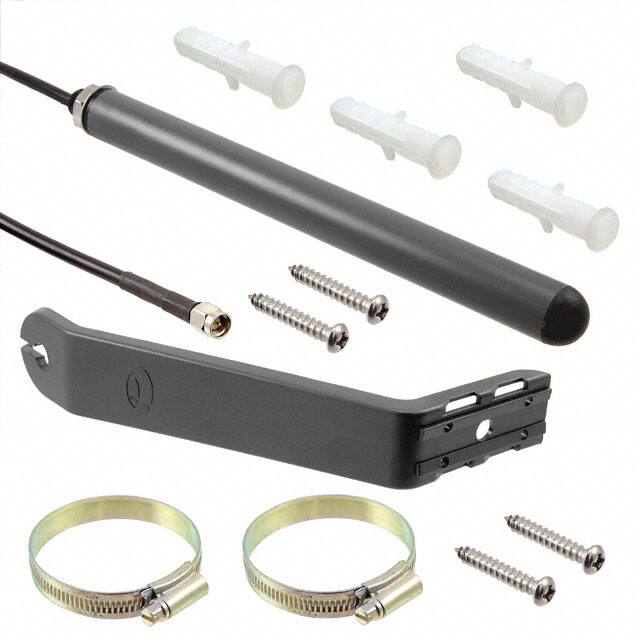

2900982RF ANT 850MHZ/900MHZ WHIP STR |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | - | - | 2dBi | - | Cable - 5m | SMA Male | IP65 | - | - | Bracket Mount | 13.661" (347.00mm) | GSM, UMTS |
|
5606175RF ANT 900MHZ PUCK N MALE PAN MT |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 900MHz | 890MHz ~ 960MHz | Puck | 1 | - | - | 2.14dBi | - | - | N Type Male | - | - | - | Panel Mount | 1.250" (31.75mm) | - |
|
|
5606762RF ANT 5.8GHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | SHF (f > 4GHz) | 5.8GHz | 5.725GHz ~ 5.875GHz | Whip, Straight | 1 | - | - | 12dBi | - | - | N Type Female | IP65 | - | - | Bracket Mount | 16.496" (419.00mm) | - |
|

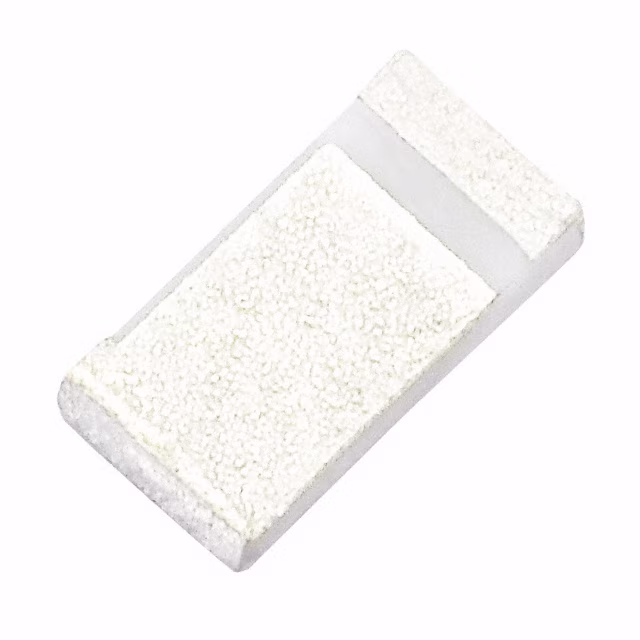

HLA.01RF ANT 5.5GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -11dB | 2.1dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|
A09-HABUF-P5IRF ANT 900MHZ WHIP STR U.FL CONN |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 2.1dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | - | - |
|

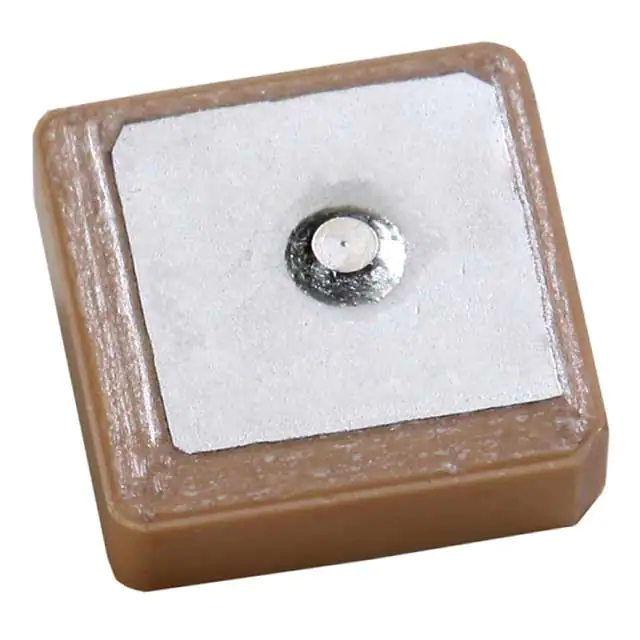

ANT1515B00FT1575SRF ANT 1.6GHZ CER PATCH PIN SMD |
0 |
|
- |
1515 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.576GHz ~ 1.584GHz | Ceramic Patch | 1 | 2 | -10dB | 1.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
ANT2525B00FT1575SRF ANT 1.575GHZ CER PATCH PIN |
0 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.59GHz | Ceramic Patch | 1 | 2 | -40dB | 5.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
|
AA.108.301F21RF ANT 1.575GHZ MOD GT5 FML ADH |
0 |
|
- |
Titan | Bag | Discontinued at Digi-Key | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | GT5 Female | IP67 | - | - | Adhesive | 0.598" (15.20mm) | GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
