RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2U262GKBA0100WIFI/BT 2400-2500MHZ MONOPOLE CH |
2,052 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ACAG0301-2450-TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,724 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 5.19dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ACAR0301-SW2LOW PROF DUAL BAND WIFI CHIP ANT |
4,470 |
|
Datasheet |
ACAR | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Chip | 2 | 2 | -10.04dB, -10.18dB, -10.19dB, -13.79dB, -15.71dB, -18.27dB | 1dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, ISM, Wi-Fi |
|
74889502450WE-MCA SMT-MULTILAYER CHIP ANTEN |
3,242 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
74889402450WE-MCA SMT-MULTILAYER CHIP ANTEN |
2,142 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | - |
|
20677400012.4/5GHZ T0.6MM ANT CORNER MOUNT |
5,221 |
|
Datasheet |
206774 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -7dB, -10dB | 1.8dBi, 1.9dBi, 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT162442DT-2001AM2CERAMIC ANTENNA FOR 2400-2484/51 |
9,763 |
|
Datasheet |
ANT | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
7488910915WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,540 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 3 | - | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.146" (3.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
|
7488960245WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,434 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.5 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.146" (3.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
ANT-418-HESMRF ANT 418MHZ HELICAL SOLDER SMD |
14,584 |
|
Datasheet |
HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 393MHz ~ 443MHz | Helical | 1 | 2 | - | 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

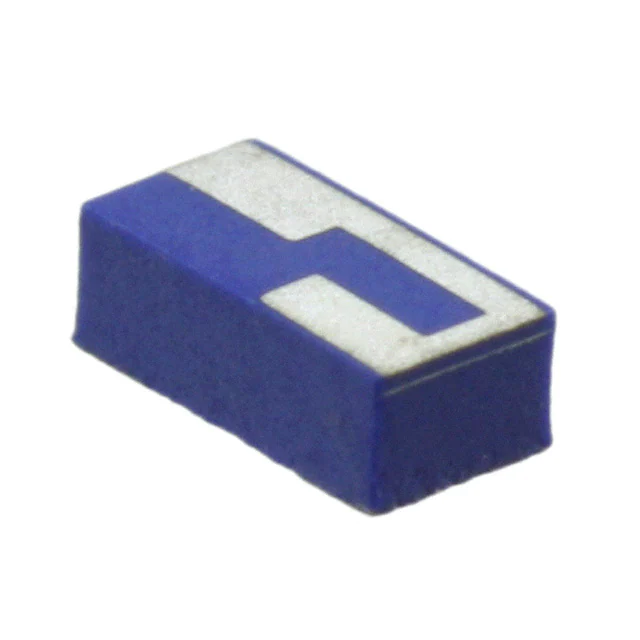

ANT3216LL15R1575ARF ANT 1.575GHZ CHIP SOLDER SMD |
3,379 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.55GHz ~ 1.6GHz | Chip | 1 | - | -10dB | 2.01dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | GPS |
|
W3320RF ANT 868MHZ/915MHZ CHIP SLD |
3,514 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 915MHz, 2.4GHz | - | Chip | 3 | - | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | ISM |
|

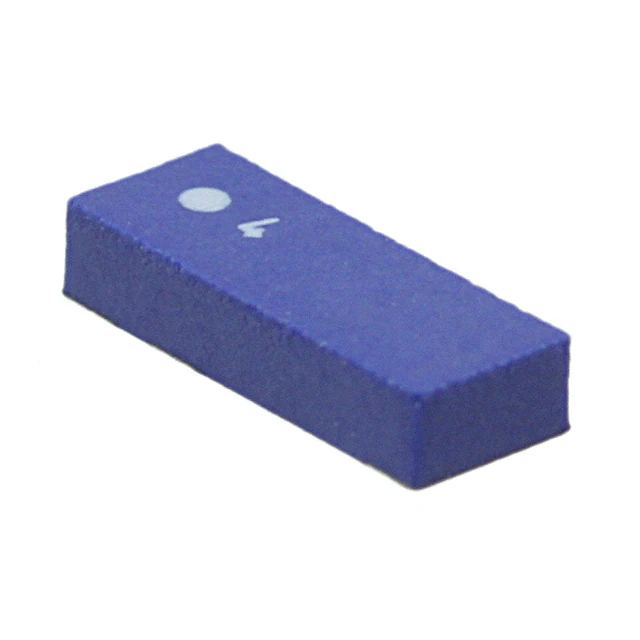

ANT5320LL24R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
12,602 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.51GHz, 4.55GHz ~ 5.45GHz | Chip | 2 | - | -10dB | 2.17dBi, 3.51dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | WLAN |
|
MAF94383RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
1,066 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.8dBi | - | Cable - 80mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.475" (12.06mm) | Bluetooth, WLAN |
|
ANT5320LL14R1516A5320 GPS/GLONASS/GALILEO OR GPS/ |
6,833 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 1 | - | 10dB | 1.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | - | - |
|
W3118ARF ANT 850MHZ HELICAL SOLDER SMD |
2,936 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 869MHz ~ 894MHz | Helical | 1 | - | -9dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | GSM |
|
ACAR0301-SG3RF ANT 1561~1610 MHZ CHIP SLD |
48,864 |
|
Datasheet |
ACAR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.61GHz | Chip | 3 | 2 | - | 1.69dBi, -1.81dBi, 1.43dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Beidou, GLONASS, GPS |
|
MAF94149RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
195 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.8dBi | - | Cable - 80mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.475" (12.06mm) | Bluetooth, WLAN |
|
H2U1631S1A0200GNSS 1560-1606 MHZ WIDE BAND TEL |
5,478 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|
|
H2U64U1H2C0200915MHZ ISM 902-928MHZ TELA CERAM |
40,206 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM, Wi-Fi |
