RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMO150/450/800TRI-BAND, 2.14 DBI, 150-165/450- |
43 |
|
Datasheet |
- | Bag | Active | - | Wide Band | 157.5MHz, 460MHz, 873MHz | 150MHz ~ 165MHz, 450MHz ~ 470MHz, 806MHz ~ 940MHz | Whip, Straight | 3 | - | - | 2.14dBi | 100 W | - | NMO | - | - | - | Magnetic | 16.500" (419.10mm) | - |
|
3977DRF ANT GPS 28DB TNCF LP |
54 |
|
Datasheet |
Permanent | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 28dBi | - | LNA, Filter | TNC Female | IP67 | - | - | Bracket Mount, Through Hole | 0.827" (21.00mm) | GPS |
|
AA.180.501111AA.180.501111 MAGNETIC MOUNT DUA |
64 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Module | 3 | 2 | 10dB | 3.31dBi, 2.71dBi, 1.08dBi | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS |
|
G35.A.305111IDAS LTE MIMO CEILING MOUNT ANTE |
127 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 752MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Dome | 7 | - | -4dB, -10dB, -6dB, -7dB, -6dB, -6dB, -4dB | 1.32dBi, 2.05dBi, 1.88dBi, 3.83dBi, 4.67dBi, 4.89dBi, 4.91dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.685" (17.40mm) | LTE |
|
|
TRAB24-49003RF ANT 2.4GHZ/4.9GHZ DOME NMO |
64 |
|
Datasheet |
Phantom® | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Dome | 2 | 2, 3 | - | 0.7dBi, 0.6dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.299" (58.40mm) | WLAN |
|
NMO150/450/800SFANTENNA TRIBAND 150/450/800MHZ |
181 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 157.5MHz, 460MHz, 873MHz | 150MHz ~ 165MHz, 450MHz ~ 470MHz, 806MHz ~ 940MHz | Whip, Straight | 3 | - | - | 2.14dBi | 100 W | - | NMO | - | - | - | Magnetic | 16.500" (419.10mm) | General Purpose |
|
FTRA6971M5PW-001OMNI PH PMT 698-7125MHZ WHT 5 DB |
31 |
|
Datasheet |
On-Ground Plane | Box | Active | Cellular | Wide Band | 829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.5625GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.695GHz, 1.695GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 6GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 2.7, 2, 1.5, 1.5, 1.5 | - | 4dBi, 4.5dBi, 5.5dBi, 5.5dBi, 5.5dBi, 5.5dBi | 100 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.307" (84.00mm) | 5G |
|
MA111.C.LB.001RF ANT 850MHZ/900MHZ DOME PNL MT |
70 |
|
Datasheet |
Ultima | Bag | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz | Dome | 7 | 2.5, 2, 2, 3.5, 3, 3 | - | 1.5dBi, 3dBi, -1.4dB, -1.3dBi, 2dBi, 4dBi, 2.5dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67 | - | - | Panel Mount | 0.772" (19.60mm) | CDMA, GLONASS, GPS, GSM, UMTS |
|
OSCAR40/5M/LL/SMAM/S/S/33RF ANT 880MHZ/2.2GHZ WHIP STR |
433 |
|
Datasheet |
OSCAR 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | - | 433MHz ~ 5.8GHz | Whip, Straight | 2 | 1.5 | - | 5.5dBi | - | - | SMA Male | - | - | - | Pole Mount, Wall Mount | 9.449" (240.00mm) | 802.11n/ac/ax, Bluetooth, LoRa, NB-IOT, Wi-Fi, WLAN, Sigfox, Zigbee™ |
|
2165891000MOLEX MULTI-HUB ANTENNA |
41 |
|
Datasheet |
216589 | Tray | Active | WiFi | Wide Band | 829MHz, 1.581GHz, 1.6GHz, 2.2GHz, 2.45GHz, 4.15GHz, 5.5GHz | 698MHz ~ 960MHz, 1.5GHz ~ 1.7GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5GHz ~ 6GHz | - | 7 | - | -5dB | - | - | Cable - 1m | SMA Male (5) | IP66 | - | - | Adhesive | 0.866" (22.00mm) | GNSS, GPS, LTE, Wi-Fi |
|
GPS-NMORF ANT 1.575GHZ DOME NMO NMO MNT |
30 |
|
Datasheet |
GPS-NMO | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 1dBic | - | LNA | NMO | - | - | - | NMO Mount | 1.811" (46.00mm) | GNSS, GPS |
|
|
ANT-GNRM-L12A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
51 |
|
Datasheet |
GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.207GHz, 1.228GHz, 1.246GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 9 | 1.1, 1.2, 1.5, 1.6, 1.7 | -11.6dB, -13.3dB, -14.4dB, -19.2dB, -25dB | 25dBi, 25dBi, 27.4dBi, 23.4dBi, 23.4dBi, 28.4dBi, 32.4dBi, 32.2dBi, 32.2dBi | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MYA4503RF ANT 460MHZ YAGI S0239 BRKT |
50 |
|
Datasheet |
MYA | Box | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Yagi, 3-Element | 1 | 1.5 | - | 9.2dBi | 300 W | - | SO239 | - | - | - | Bracket Mount | 23.000" (584.20mm) | - |
|
|
YEMX425J1AANTENNA |
72 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 440MHz, 1.653GHz, 4.65GHz | 410MHz ~ 470MHz, 617GHz ~ 2.69GHz, 3.3GHz ~ 6GHz | Dome | 3 | - | - | - | - | Cable - 450mm | SMA Male | IP67, IP69K | - | - | Pole, Wall Mount | 5.906" (150.00mm) | 2G, 3G, 4G, 5G |
|

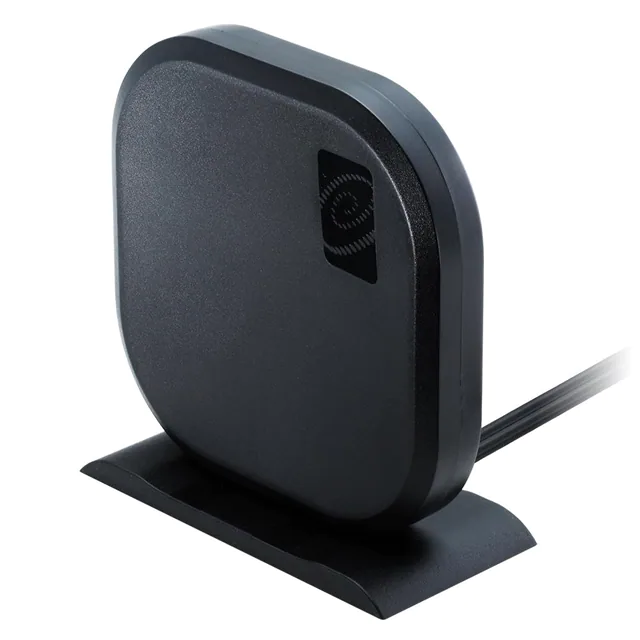

LMA101.A.BI.001RF ANT 829MHZ/2.2GHZ MOD SMA MAL |
134 |
|
Datasheet |
GEMINI | Box | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 2 | - | - | 5.1dBi | - | - | SMA Male | IP67 | - | - | Magnetic, Chassis Mount | 1.437" (36.50mm) | LTE |
|
|
NMO150/450/758ANT,TRIBND,150&450&748MHZ,NMO |
109 |
|
Datasheet |
- | Bag | Active | - | Wide Band | 162MHz, 475MHz, 810MHz | 150MHz ~ 174MHz, 430MHz ~ 520MHz, 750MHz ~ 870MHz | Whip, Straight | 3 | 2, 2.5 | - | 0dBi, 5dBi, 4dBi | 100 W | - | NMO | IP67 | - | - | Magnetic | 17.815" (452.50mm) | - |
|
IS.01.B.305111RF ANT 430MHZ DOME SMA MALE PAN |
62 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 430MHz | 400MHz ~ 460MHz | Dome | 1 | 1.8 | - | 1.6dBi | 5 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | - |
|
TLS.90.205111SHOCKWAVE 868/915MHZ TERMINAL RO |
95 |
|
Datasheet |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 850MHz ~ 880MHz, 902MHz ~ 928MHz | Dome | 2 | - | -20dB | 1.67dBi, 1.58dBi, 1.57dBi, 1.61dBi, 1.9dBi, 2.46dBi | 100 W | Cable - 2m | SMA Male | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | ISM |
|
|
TS.16.0111GPS/GLONASS/GALILEO/BEIDOU ACTIV |
57 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.603GHz | - | Module | 3 | 2 | - | 1.19dBi, 2.29dBi, 1.4dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 2.362" (60.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
IS.04.B.301111RF ANT 869MHZ DOME SMA MALE PAN |
57 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Dome | 1 | 2.5 | -21.93dB | 2.09dBi | 10 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | - |
