RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C144-440CSRF ANT 146/445MHZ WHIP STR 38" |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 146MHz, 445MHz | 144MHz ~ 148MHz, 440MHz ~ 450MHz | Whip, Straight | 2 | 1.5 | - | 2dB, 5dB | - | - | NMO | - | - | - | Base Mount | 38.000" (965.20mm) | - |
|
|
HG908PCR-RSPANTFLAT PATCH 900MHZ 8DBI |
0 |
|
- |
HG | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | Flat Patch | 1 | - | - | 8dBi | - | - | RP-SMA | - | - | - | Wall Mount | 1.100" (27.94mm) | GSM, ISM, LoRa, LPWAN |
|
|
HG2458-5P-135-NMANTDIPOLE 2.4/5.8 GHZ 5 DBI |
0 |
|
- |
HG | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Module | 2 | - | - | 5dBi, 5dBi | - | Cable - 1.2192m | N Type Male | - | - | - | Wall Mount | 2.210" (56.13mm) | 802.11a/b/g/n/ac, WiMax™ |
|
|
HG5806U-PROANTOMNI 5.8GHZ 6DBI |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.787GHz | 5.725GHz ~ 5.85GHz | Whip, Straight | 1 | 1.6 | - | 6dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | 14.000" (355.60mm) | 802.11a, ISM, Wi-Fi |
|
|
LCANKIT1000ANTOMNI 900MHZ 3DBI CARP-SMA M/N |
0 |
|
- |
LCAN | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | - | - | 3dBi | - | Cable - 1.828m | RP-SMA Male | - | - | - | Bracket Mount | - | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
HG2471-04U-NMWIFI 6E, 2400-2500/4900-7250 MHZ |
0 |
|
- |
HG | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 6.075GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.25GHz | Whip, Straight | 2 | 2 | - | 4dBi, 7dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Connector Mount | 11.000" (279.40mm) | 802.11ax, Bluetooth, Wi-Fi, Zigbee™ |
|
|
HG2471-04U-NFWIFI 6E, 2400-2500/4900-7250 MHZ |
0 |
|
- |
HG | Bag | Active | 802.15.4, Bluetooth, Cellular | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 6.075GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.25GHz | Whip, Straight | 2 | 2 | - | 4dBi, 7dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 10.500" (266.70mm) | 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
HG3515D-1-NF3.35 GHZ TO 3.6 GHZ 15 DBI BACK |
0 |
|
- |
HG | Bag | Active | General ISM | UHF (3GHz ~ 4GHz) | 3.475GHz | 3.35GHz ~ 3.6GHz | Dish | 1 | 2 | - | 15dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Mast Mount | 4.200" (106.68mm) | ISM |
|
|
33-3740-00-00-3000RF ANT 1.581GHZ DOME |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 40dB | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-3740-01-00RF ANT 1.581GHZ DOME |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 40dB | - | LNA, Filter | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-3740-01-11ANT GPS/GLONASS/BEIDOU/GALILEO |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-3740-14-00ANT GPS/GLONASS/BEIDOU/GALILEO |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
|
GPMB-200-S1N-N1GPS PLUS, 26 DB, MAGNETIC, BLACK |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

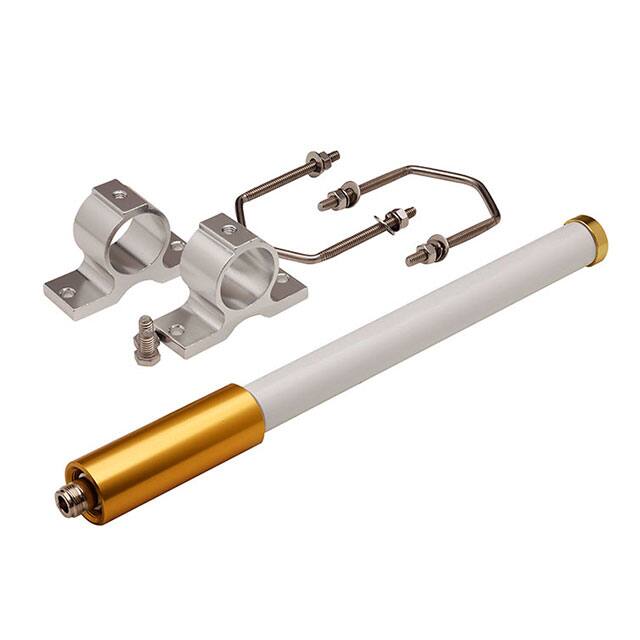

A09-F2NF-MRF ANT 900MHZ WHIP STR N FEM 15" |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 2.1dBi | - | - | N Type Female | - | - | - | Bracket Mount | 15.000" (381.00mm) | - |
|
|
GPPB-204-X1-M1NGPS PLS, 26 DB, PERM, BLCK, 17FT |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMANLP1003ANTENNA TYPE N JACK 617 MHZ-2.7 |
0 |
|
- |
- | Bag | Active | Cellular, WiFi | Wide Band | 1.658GHz | 617MHz ~ 2.7GHz | Panel | 1 | 2 | - | 11dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Bracket Mount | 17.400" (441.96mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
FM51253ANTENNA TYPE N JACK 698 MHZ-4.2 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 2.449GHz | 698MHz ~ 4.2GHz | Dome | 1 | 1.8 | - | 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Ceiling Mount | 0.390" (9.91mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
GPPB-6-S4-S4GPS PLUS, 26 DB, PERM, BLACK, 0F |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMD69423P-30NFANT CEILING MIMO DUAL F-TYPE |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 752MHz, 892MHz, 1.45GHz, 1.935GHz, 2.5GHz, 3.75GHz | 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.18GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz | Flat Panel | 6 | 2 | - | 3.9dBi, 5.3dBi, 6dBi, 6.1dBi, 6.8dBi, 6.7dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Panel Mount | 1.713" (43.50mm) | 5G |
|
|
PAS69278-FNF2ANT LTE IN/OUT BROADBAND NFEM |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
