BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA910.W.A.CG.001GUARDIAN MA910.W.A.CG.001 2IN1 A |
0 |
|
Datasheet |
Guardian | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.858GHz | Module | 2 | 3 | - | 3.15dBi, 3.14dBi | - | Cable - 3m | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Wi-Fi |
|
HG2415Y-NMANTYAGI 2.4GHZ 14.5DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 1.5 | - | 14.5dBi | 50 W | Cable - 1.2192m | N Type Male | - | - | - | Mast Mount | 18.200" (462.28mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG908PCR-RTPANTFLAT PATCH 900MHZ 8DBI |
0 |
|
- |
HG | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | Flat Panel | 1 | - | - | 8dBi | - | Cable - 1.2192m | RP-TNC | - | - | - | Wall Mount | 1.100" (27.94mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID |
|
|
HG245803MGURB-TMANTMAGMT 2.4/5.8 GHZ BLK TM |
0 |
|
- |
HG | Bag | Active | WiFi | Wide Band | 2.4GHz, 5.35GHz | 4.9GHz ~ 5.8GHz | Whip, Straight | 2 | - | - | 3dBi, 3dBi | - | Cable - 3.05m | TNC Male | - | - | - | Magnetic | 2.700" (68.58mm) | 802.11a/b/g/n/ac, WLAN |
|
|
L000574-05FPL PRO ANTENNA, 3-PORT, WI-FI G |
0 |
|
Datasheet |
FPL pro | Box | Active | General ISM, Navigation | Wide Band | 410MHz, 1.582GHz, 1.583GHz, 2.45GHz, 5.45GHz, 6.562GHz | 350MHz ~ 470MHz, 1.559GHz ~ 1.606GHz, 1.559GHz ~ 1.607GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz, 6GHz ~ 7.125GHz | Module | 6 | 2, 2.5 | - | 4dBi, 36dBi, 28dBi, 6dBi, 9dBi, 9dBi | 30 W | Cable - 5m, LNA | BNC Male, SMA Male, SMC Male | IP67, IP69K | - | - | Magnetic | 1.795" (45.60mm) | GNSS, TETRA, UHF, Wi-Fi |
|
EM-MBD41002RF ANT 140MHZ/625MHZ WHIP STR N |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 140MHz, 625MHz | 100MHz ~ 180MHz, 380MHz ~ 870MHz | Whip, Straight | 2 | 1.6 | - | - | 150 W | - | N Type | - | - | - | Base Mount | 1.102" (28.00mm) | - |
|
|
FM51LP1001TYPE N JACK 698-960/1710-2700 MH |
0 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM, WiFi | Wide Band | 829MHz, 2.105GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.5GHz | Panel | 2 | 1.6 | - | 9dBi, 10dBi | 50 W | Cable - 203.2mm | N Type Female | - | - | - | Bracket Mount | 11.400" (289.56mm) | 802.11b/g, IoT, LoRA, LPWAN, LTE, LTE-M, M2M, NB-IoT |
|

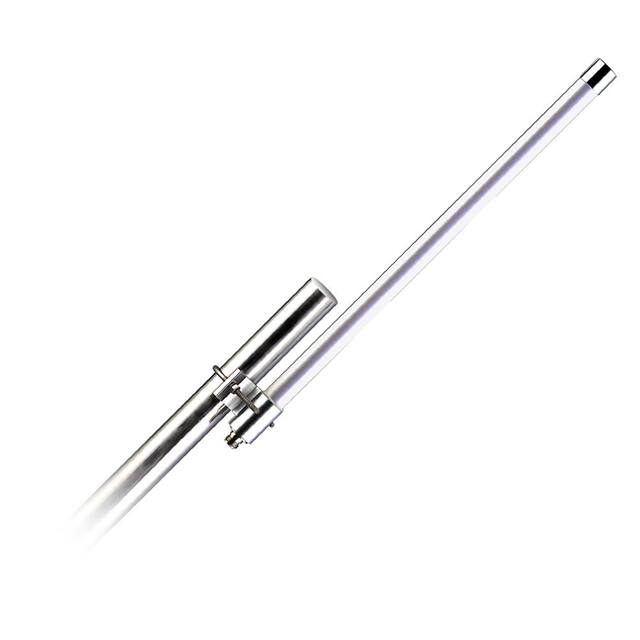

OMB.450.B03F21RF ANT 460MHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | - | N Type Female | IP65 | - | - | Bracket Mount | 20.591" (523.00mm) | CDMA, LTE |
|
|
FG1400RF ANT 142MHZ WHIP STR N FEM 92" |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 142MHz | 140MHz ~ 144MHz | Whip, Straight | 1 | 2 | - | 0dB | 150 W | - | N Type Female | - | - | - | Bracket Mount | 92.000" (233.68cm) | - |
|
|
6001351AIRLINK 4IN1 WIFI ANTENNA |
0 |
|
Datasheet |
- | Retail Package | Active | WiFi | Wide Band | 2.5GHz, 5.45GHz | 2.3GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 2 | 2 | - | 4dBi, 6dBi | 25 W | Cable - 5m | Fakra | IP69K | - | - | Bolt | 1.193" (30.30mm) | Wi-Fi |
|
|
6001352AIRLINK 4IN1 WIFI ANTENNA |
0 |
|
Datasheet |
- | Retail Package | Active | WiFi | Wide Band | 2.5GHz, 5.45GHz | 2.3GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 2 | 2 | - | 4dBi, 6dBi | 25 W | Cable - 5m | Fakra | IP69K | - | - | Bolt | 1.193" (30.30mm) | Wi-Fi |
|
|
FMANFP1056ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.5 | - | 1.5dBi | 20 W | Cable - 2m | RP-SMA Male | - | - | - | Connector Mount | 0.160" (4.06mm) | General Purpose |
|
|
FMANFP1047ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.5 | - | 1.5dBi | 20 W | Cable - 2m | SMA Male | - | - | - | Connector Mount | 0.160" (4.06mm) | General Purpose |
|
|
FMANLP1015ANTENNA TYPE N JACK 698 MHZ-6 GH |
0 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 3.349GHz | 698MHz ~ 6GHz | Panel | 1 | 2 | - | 11dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CBRS, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
CW42SRF ANT 45MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 45MHz | 42MHz ~ 48MHz | Whip, Straight | 1 | 2 | - | 0dB | 200 W | - | NMO | - | - | - | Base Mount | 54.750" (139.07cm) | - |
|
|
HG2424EG-1-TM2.4 GHZ TO 2.5 GHZ 24 DBI GRID A |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Parabolic Grid | 1 | 1.5 | - | 24dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | TNC Male | - | - | - | Bracket Mount | 14.600" (370.84mm) | 802.11b/g/n, ISM, Wi-Fi, WLAN |
|
|
GPPB-204-U3-P1GPS PLS, 26DB, PERM, BLK, 17FT 0 |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FM51FP1012ANTENNA TYPE N JACK 617 MHZ-6 GH |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.205GHz, 3.75GHz, 5.45GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Panel | 5 | 2 | - | 5.5dBi, 6dBi, 7dBi, 6dBi, 6.5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 0.980" (24.89mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
DASUTWCR5004310CLARITY WHITE ULTRA THIN CEILING |
0 |
|
Datasheet |
- | Box | Active | Cellular, WiFi | Wide Band | 784MHz, 1.9475GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 7dBi, 7dBi, 5dBi | 40 W | Cable - 500mm | 4.3/10-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
|
PC2415NARF ANT 2.4GHZ YAGI BRKT MT 12" |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 1.5 | - | 13.9dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Bracket Mount | 24.921" (633.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
