RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG72703MGURB-RSPANTMAGMT 700-2700 MHZ BLK RSP |
0 |
|
- |
HG | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 700MHz, 850MHz | - | Whip, Straight | 2 | - | - | 3dBi, 3dBi | - | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 4.700" (119.38mm) | LTE, PCS |
|
|
FG8246RF ANT 835MHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 835MHz | 824MHz ~ 896MHz | Whip, Straight | 1 | 2 | - | 6dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 65.000" (165.10cm) | - |
|
|
HG74206DPSQCUPR-NFINDOOR SQUARE CEILING OMNI ANTEN |
0 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 2.449GHz | 698MHz ~ 4.2GHz | Dome | 1 | 1.8 | - | 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Ceiling Mount | 0.390" (9.91mm) | 5G, CBRS, CDMA, DAS, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
GPSCP05ANTENNA WHITE TRIBAND PIFA EXT |
0 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | SMB | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
GPSCP09ANTENNA WHITE TRIBAND PIFA EXT |
0 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | SMA | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
GPSCP01ANTENNA WHT TRIBAND PIFA EXT MNT |
0 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | - | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
GPSCP02ANTENNA BLK TRIBAND PIFA EXT MNT |
0 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.71GHz | Dome | 3 | 2 | - | 2dBi, 5dBi, 26dBi | - | - | SMA | IP67 | - | - | - | 1.300" (33.02mm) | GPS |
|
|
S2401290P12NFRF ANT 2.4GHZ PANEL CAB BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 2 | - | 12dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Bracket Mount | 1.000" (25.40mm) | WiMax™ |
|
|
HG2412Y-NFANTYAGI 2.4GHZ 12DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 2 | - | 12dBi | 50 W | - | Screw-Mount | - | - | - | Mast Mount | 11.200" (284.48mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG2412Y-NMANTYAGI 2.4GHZ 12DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 2 | - | 12dBi | 50 W | - | Screw-Mount | - | - | - | Mast Mount | 11.200" (284.48mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG2415Y-RTPANTYAGI 2.4GHZ 14.5DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 1.5 | - | 14.5dBi | 50 W | Cable - 1.2192m | RP-TNC | - | - | - | Mast Mount | 18.200" (462.28mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
LCANLP1015698-6000 MHZ, 10 TO 11 DBI GAIN, |
0 |
|
- |
LCAN | Bag | Active | Cellular, WiFi | Wide Band | 3.349GHz | 698MHz ~ 6GHz | Log Periodic | 1 | 2 | - | 11dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CBRS, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
758-975MAGNETIC FOOT ANTENNA; WITH 2.5M |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, Cellular, WiFi | Wide Band | 829MHz, 1.459GHz, 2.205GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.518GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | - | 3dBi | - | Cable - 2.5m | SMA | - | - | - | Magnetic | 3.260" (82.80mm) | Bluetooth, GSM, LTE, UMTS, WLAN |
|
DASUTWCR500NFCLARITY WHITE ULTRA THIN CEILING |
0 |
|
Datasheet |
- | Box | Active | Cellular, WiFi | Wide Band | 784MHz, 1.9475GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 7dBi, 7dBi, 5dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
|
GEO-GNSS-AC-S1GPS/GLONASS ENCLOSED HELIX, ACTI |
0 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | 1.574GHz ~ 1.61GHz | Dome | 1 | - | - | -2dBic | - | - | SMA Female | IP67 | - | - | Panel Mount | 3.425" (87.00mm) | GLONASS, GNSS, GPS |
|
|
PAV90209H-91NMRF ANT 915MHZ PANEL N MALE CHAS |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBi | 10 W | - | N Type Male | IP67 | - | - | Chassis Mount | 1.320" (33.53mm) | - |
|
|
CFD69383-300SMAMOMNI,DBAND,300CM,SMAM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

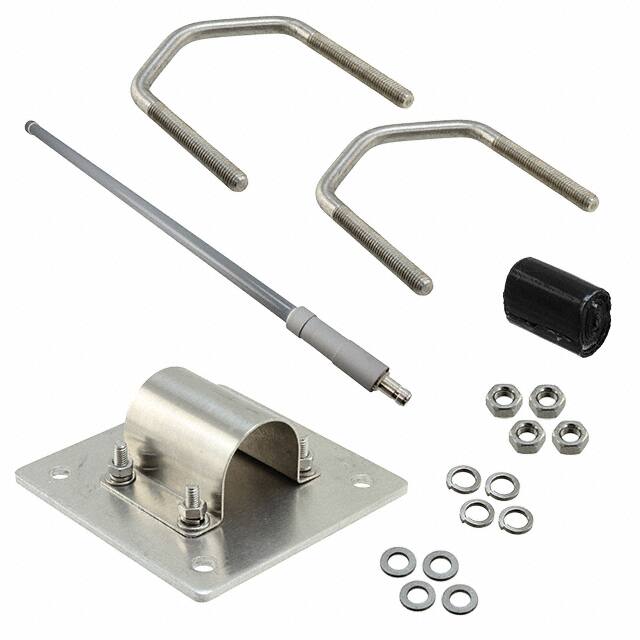

OD58-12RF ANT 5.7GHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5.7GHz | 5.47GHz ~ 5.85GHz | Whip, Straight | 1 | 1.5 | - | 12dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 27.559" (700.00mm) | WiMax™, WLAN |
|
|
1319.19.00281319.19.0028 |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.905GHz | 1.88GHz ~ 1.93GHz | Dome | 1 | 1.5 | - | 2dBi | - | Cable - 1.5m | SMA Female | - | - | - | Panel Mount | 1.693" (43.00mm) | General Purpose |
|
|
FM51OM1014ANTENNA TYPE N JACK 824 MHZ-960 |
0 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 22.200" (563.88mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, WLAN |
