RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SR4G053RAPTOR GNSS SMD ANTENNA |
4,626 |
|
Datasheet |
Raptor | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2065GHz, 1.584GHz | 1.164GHz ~ 1.249GHz, 1.559GHz ~ 1.609GHz | Chip | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | GNSS |
|
2067600001RF ANT 829MHZ/2.205GHZ CER PATCH |
8,315 |
|
Datasheet |
206760 | Tape & Reel (TR) | Active | - | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Ceramic Patch | 2 | - | -5dB | 1.3dBi, 4.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | General Purpose |
|
ACAG1204-915-TRF ANT 915MHZ CHIP SOLDER SMD |
33,129 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 910MHz ~ 925MHz | Chip | 1 | 2 | - | 3.42dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, Sigfox |
|
YF0011AAFLEX ANTENNA WIFI DUALB 44MM UFL |
2,673 |
|
Datasheet |
- | Bag | Not For New Designs | WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 2 | - | 7dBi, 7dBi | - | - | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | Wi-Fi |
|
|
YGL001AA5G TERMINAL SMA M HINGE WHITE |
1,247 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 780MHz, 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.15GHz, 4.5GHz, 5.5GHz | 600MHz ~ 960MHz, 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 11 | 5 | - | 3dBi, 0.63dBi, 1.65dBi, 3dBi, 2.73dBi, 3.08dBi, 3dBi, 3.26dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.724" (196.20mm) | 2G, 3G, 4G, 5G, LPWA |
|
ANT-GHEL2-SMARF ANT 920MHZ/1.8GHZ WHIP STR |
655 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.323" (59.00mm) | General Purpose |
|
|
YCGO004AAPATCH PASSIVE GNSS L1 10X10 UFL |
472 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|
|
YCGO006AAGNSS RF ANTENNA |
401 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.568GHz | 1.559GHz ~ 1.577GHz | Ceramic Patch | 1 | 2 | - | 2dBi | - | Cable - 50mm | I-PEX MHF1 | - | - | - | Surface Mount | 0.248" (6.30mm) | Beidou, GPS |
|
|
YCGO007AAGNSS RF ANTENNA |
256 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5805GHz | 1.56GHz ~ 1.601GHz | Ceramic Patch | 1 | 3 | - | 2dBi | - | Cable - 50mm | I-PEX MHF1 | - | - | - | Surface Mount | 0.248" (6.30mm) | GPS |
|
1461860100RF ANT 1.561/1.575GHZ FLAT 100MM |
7,254 |
|
Datasheet |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 3dBi, 4dBi, 4.7dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
RST-W2-P-110-SMA-HRFANT 2400-2483MHZ 4G SMA RA |
1,069 |
|
Datasheet |
RST | Bulk | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.4415GHz | 2.4GHz ~ 2.483GHz | Whip, Tilt | 1 | 1.5 | - | 4.15dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | 4G |
|
2125700200824~2170MHZ FLEXIBLE ANT SIDE-FE |
2,103 |
|
Datasheet |
212570 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -5dB | -0.45dBi, 1.76dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
|
EFG2400A3S-10MHF1ANT 2.4 GHZ,I-FLEXPIFA MHF1 |
798 |
|
Datasheet |
i-FlexPIFA™ | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.485GHz | Flat Bar | 1 | - | - | 3.4dBi | - | Cable - 100mm | MHF1 | - | - | - | Surface Mount | - | Bluetooth, Wi-Fi |
|
1000802RF ANT 2.4GHZ PCB TRACE CAB ADH |
708 |
|
Datasheet |
Prestta™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.1 | - | 3.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
UWC.20ACCURAUWB UWC.20 3-5GHZ & 6-9GHZ |
3,175 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 8.5GHz | 3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 9GHz | Chip | 3 | 2, 3 | -6dB, -10dB | 6dBi, 3.5dBi, 2.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | UWB |
|
|
ANT-5GW-FPC-V100UFANT 5G FPC 120X20 100MM UFL |
1,063 |
|
Datasheet |
ANT-5GW-FPC-V | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.8, 2.4, 2.6 | - | 4.6dBi, 6.6dBi, 7.9dBi, 7.9dBi, 6.2dBi, 4.9dBi, 4.1dBi, 6.3dBi, 7.9dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
EFH8631A3S-10MH4LANT, FLEXDIPOLE, 868MHZ-928MHZ, |
290 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | 3 | - | 1.9dBi, 2.4dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | ISM, LoRaWAN |
|

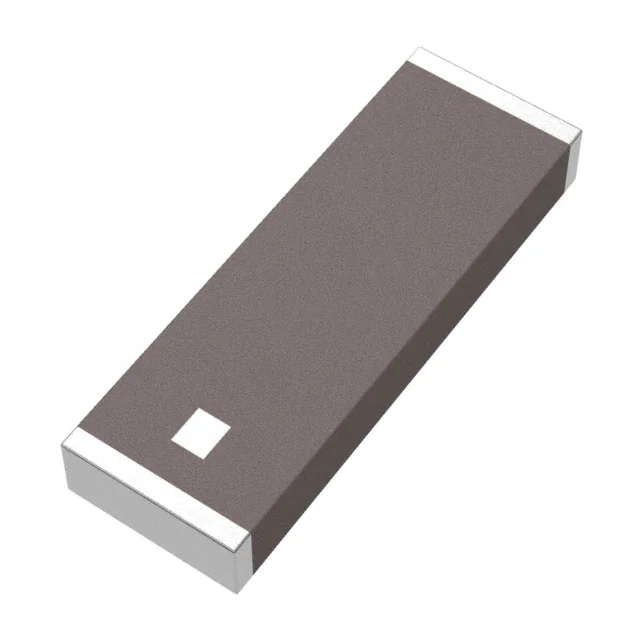

ACAG1204-433-TRF ANT 433MHZ CHIP SOLDER SMD |
11,564 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 433MHz | 428MHz ~ 438MHz | Chip | 1 | 2 | -6.5dB | -1.72dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, Sigfox, Wi-Fi |
|
AFAG2220-SW2RF ANT DUAL BAND WIFI FPC W/IPEX |
1,678 |
|
Datasheet |
AFAG | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz | PCB Trace | 2 | 2, 2.5 | - | 2dBi | 3 W | Cable - 220mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, Wi-Fi |
|
2118909-6WLAN TRIPLE BAND ANT MHF4 CABLE |
5,502 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.3dBi, 3.3dBi, 3.3dBi | - | Cable - 370mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
