RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1052620003RF ANT 866MHZ/915MHZ FLAT 200MM |
3,161 |
|
Datasheet |
105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.2dBi, 1.2dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
ABAR1504-S2450RF ANT 2.45GHZ PATCH |
646 |
|
Datasheet |
ABAR | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.484GHz | Flat Patch | 1 | 2.7, 1.63, 1.66 | - | 1.52dBi, 2.28dBi, 1.89dBi | - | Cable - 250mm | I-PEX | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-5GW-FPC-V100M4ANT 5G FPC 120X20 100MM MHF4 |
667 |
|
Datasheet |
ANT-5GW-FPC-V | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.8, 2.4, 2.6 | - | 4.6dBi, 6.6dBi, 7.9dBi, 7.9dBi, 6.2dBi, 4.9dBi, 4.1dBi, 6.3dBi, 7.9dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
2065600200RF ANT 1.561/1.575GHZ FLAT 200MM |
669 |
|
Datasheet |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.7dBi, 0.8dBi, 1.1dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|
|
YECT002AAEXTERNAL LTE TERMINAL ANT SMA M |
796 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Right Angle | 10 | 5 | - | 3dBi, 3dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.724" (196.20mm) | LTE |
|
|
YCN001AAEXTERNAL DIPOLE LTE ANTENNA SMAM |
390 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 830MHz, 1.228GHz, 1.585GHz, 1.94GHz, 2.205GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 10 | 3.1 | - | -0.7dBi, -0.03dBi, 2.71dBi, 1.66dBi, 2.71dBi, 2.71dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.669" (144.00mm) | GNSS, LTE |
|
ANT-915-CPARF ANT 915MHZ PATCH ISM 25X25 |
441 |
|
Datasheet |
CPA | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 909MHz ~ 921MHz | Ceramic Patch | 1 | 1.2 | -21.1dB | 1.5dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.200" (4.00mm) | ISM, RFID |
|
|
M20057-1M20057-1 1559-1609 MHZ: GNSS SMD |
3,875 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | - | - | - | - | LNA | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | GNSS |
|
|
1461531250RF ANT 2.4417GHZ/5.415GHZ PCB |
4,548 |
|
Datasheet |
146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 2.4dBi, 3.2dBi | - | Cable - 250mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
W1F35X8W01-U100D3B0CANTENNA ASSY, WLAN1 04 100 D0230 |
596 |
|
Datasheet |
W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

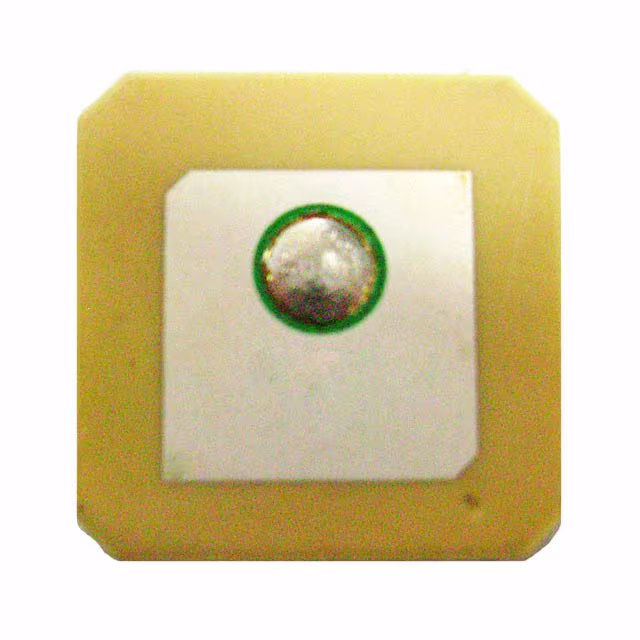

APAE1621R2540ABDD1-TRF ANT 1.621GHZ CER PATCH PIN |
1,991 |
|
Datasheet |
APAE | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Ceramic Patch | 1 | 1.5 | - | 4dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | Iridium™ |
|
W3229RF ANT 2.45GHZ CER PATCH PIN ADH |
13,312 |
|
Datasheet |
Ceramic Patch Antenna | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -7dB | 6.5dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi |
|
|
YG0032AAGNSS L1&B1&G1 ACTIVE, 55MM, UFL |
495 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.58GHz | Ceramic Patch | 2 | 1.5, 2 | - | 2dBi, 2dBi | - | Cable - 55mm, LNA | I-PEX | - | - | - | Adhesive | 0.260" (6.60mm) | Beidou, GPS |
|
|
ANT-W63WS5-RPSRF ANT 2.4/5/6GHZ WIFI7 BLADE |
364 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.025GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.3, 2, 2.1 | - | 8.4dBi, 4.9dBi, 4dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 5.339" (135.60mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
2144150011WI-FI/BLUETOOTH HINGED EXT ANTEN |
5,383 |
|
Datasheet |
214415 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | -10dB | 5.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
PCS.68.ARF ANT 788.5MHZ PCB SMA FML SMD |
3,508 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3.5 | - | -1dBi, -2dBi, 3.8dBi, 2dBi, 4dBi, 4.5dBi, 4dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.059" (1.50mm) | 3G, 4G, LTE, Wi-Fi |
|
PCS.26.AHAVOK LOW PROFILE LTE/CELLULAR S |
1,255 |
|
Datasheet |
Havok | Tape & Reel (TR) | Active | Cellular | Wide Band | 657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 4.495GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Chip | 8 | - | -7dB, -7dB, -6dB | 6.67dBi, 2.54dBi, 3.53dBi, 3.75dBi, 4.85dBi, 3.99dBi, 4.26dBi, 3.86dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
W3525B100RF ANT 2.4GHZ PCB TRACE CAB SMD |
895 |
|
Datasheet |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | 2dBi | - | Cable - 254mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.031" (0.80mm) | Wi-Fi, WLAN |
|
|
ANT-5GW-FPC-LH200UFANT 5G FPC 120X20 200MM UFL |
609 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 200mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
.jpg)
|
1004795ANTENNA PCB, LTE J1381 |
5,403 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Cellular | Wide Band | 600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Chip | 9 | 2.5, 3 | - | 1.5dBi, 1.6dBi, 3.1dBi, 1.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE, LoRa, LPWAN, Sigfox |
