RF Antennas

Mfr. Part #	Availability	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
PE9861B-10 WR-187 Waveguide Standard Gain H Pasternack	2	RFQ	Datasheet	-	Retail Package	Active	General ISM	Wide Band	4.9GHz	3.95GHz ~ 5.85GHz	Horn	1	1.5	-	10dBi	-	-	-	-	-	-	Waveguide Mount	6.030" (153.16mm)	General Purpose
PEWAN1024 WR-8 WAVEGUIDE STANDARD GAIN HOR Pasternack	2	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	115GHz	90GHz ~ 140GHz	Horn	1	1.15	-	25dBi	-	-	-	-	-	-	Waveguide Mount	2.300" (58.42mm)	General Purpose
PE9863B-15-U WR-284 Standard Gain Horn Antenn Pasternack	2	RFQ	Datasheet	-	Retail Package	Active	General ISM	Wide Band	3.275GHz	2.6GHz ~ 3.95GHz	Horn	1	1.5	-	15dBi	-	-	-	-	-	-	Waveguide Mount	15.340" (389.64mm)	General Purpose
PE9862B-10 WR-229 Standard Gain Horn Antenn Pasternack	8	RFQ	Datasheet	-	Retail Package	Active	General ISM	Wide Band	4.1GHz	3.3GHz ~ 4.9GHz	Horn	1	1.5	-	10dBi	-	-	-	-	-	-	Waveguide Mount	6.000" (152.40mm)	General Purpose
PEWAN090-20ELSF WR42 GAIN HRN 8.2-12.4GHZ 20DBI Pasternack	4	RFQ	Datasheet	-	Tape & Box (TB)	Active	Waveguide	Wide Band	10.3GHz	8.2GHz ~ 12.4GHz	Horn	1	1.25	-	20dBi	-	Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m	SMA Female	-	-	-	Waveguide Mount	3.265" (82.93mm)	General Purpose
PEWAN042-10ELKF WR42 GAIN HRN 18-26.5GHZ 10DBI Pasternack	3	RFQ	Datasheet	-	Tape & Box (TB)	Active	Waveguide	Wide Band	22.2GHz	18GHz ~ 26.5GHz	Horn	1	1.3	-	10dBi	-	Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m	2.92mm Female	-	-	-	Waveguide Mount	0.882" (22.40mm)	General Purpose
PEWAN137-10 WR137 GAIN HORN 5.85-8.2GHZ 10DB Pasternack	5	RFQ	Datasheet	-	Bulk	Active	Waveguide	C Band (4GHz ~ 8GHz)	7.03GHz	5.85GHz ~ 8.2GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PE9853B-20 WR-51 Waveguide Standard Gain Ho Pasternack	11	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	18.5GHz	15GHz ~ 22GHz	Horn	1	1.5	-	20dBi	-	-	-	-	-	-	Waveguide Mount	4.830" (122.68mm)	General Purpose
PEWAN137-20 WR137 GAIN HORN 5.85-8.2GHZ 20DB Pasternack	7	RFQ	Datasheet	-	Bulk	Active	Waveguide	C Band (4GHz ~ 8GHz)	7.03GHz	5.85GHz ~ 8.2GHz	Horn	1	1.3	-	20dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PEWAN159-15 WR159 GAIN HORN 4.9-7.05GHZ 15DB Pasternack	2	RFQ	Datasheet	-	Bulk	Active	Waveguide	C Band (4GHz ~ 8GHz)	5.9GHz	4.9GHz ~ 7.05GHz	Horn	1	1.3	-	15dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PEWAN090-20 WR90 GAIN HORN 8.2-12.4GHZ 20DBI Pasternack	25	RFQ	Datasheet	-	Bulk	Active	Waveguide	X Band (8GHz ~ 12GHz)	10.3GHz	8.2GHz ~ 12.4GHz	Horn	1	1.3	-	20dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PEWAN187-10 WR187 GAIN HORN 3.95-5.85GHZ 10D Pasternack	8	RFQ	Datasheet	-	Bulk	Active	Waveguide	C Band (4GHz ~ 8GHz)	4.9GHz	3.95GHz ~ 5.85GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PEWAN028-20 WR28 GAIN HORN 26.5-40GHZ 20DBI Pasternack	19	RFQ	Datasheet	-	Bulk	Active	Waveguide	Ka Band (27GHz ~ 40GHz)	33.3GHz	26.5GHz ~ 40GHz	Horn	1	1.3	-	20dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-

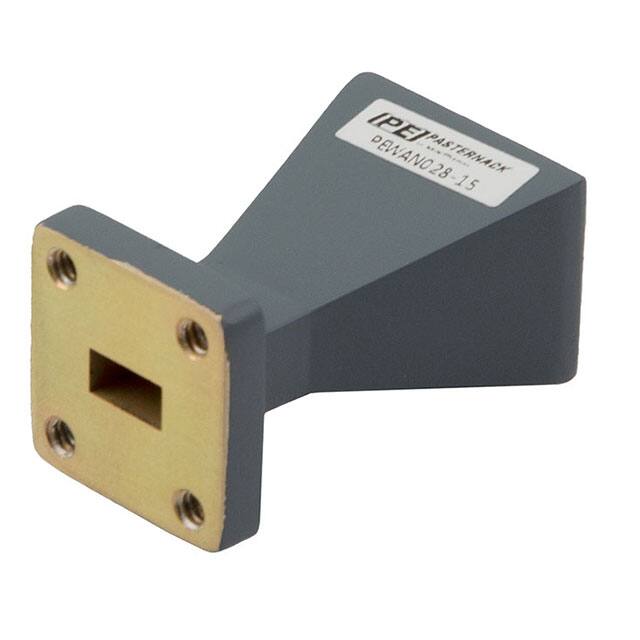

PEWAN028-15 WR28 GAIN HORN 26.5-40GHZ 15DBI Pasternack	13	RFQ	Datasheet	-	Bulk	Active	Waveguide	Ka Band (27GHz ~ 40GHz)	33.3GHz	26.5GHz ~ 40GHz	Horn	1	1.3	-	15dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PE9860B-15 WR-159 Waveguide Standard Gain H Pasternack	6	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	5.975GHz	4.9GHz ~ 7.05GHz	Horn	1	1.5	-	15dBi	-	-	-	-	-	-	Waveguide Mount	9.468" (240.49mm)	General Purpose
PEANED1003 2 Folded Dipole antenna, 138 MHz Pasternack	5	RFQ	Datasheet	-	Retail Package	Active	General ISM	VHF (f < 300MHz)	156MHz	138MHz ~ 174MHz	Module	1	1.8	-	7.6dBi	100 W	-	N Type Female	-	-	-	-	114.173" (290.00cm)	General Purpose
PEANED1002 2 Folded Dipole antenna,138 MHz Pasternack	4	RFQ	Datasheet	-	Retail Package	Active	General ISM	VHF (f < 300MHz)	156MHz	138MHz ~ 174MHz	Module	1	1.8	-	7dBi	100 W	-	N Type Female	-	-	-	-	114.173" (290.00cm)	General Purpose
PE9859B-10 WR-137 Waveguide Standard Gain H Pasternack	16	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	7.025GHz	5.85GHz ~ 8.2GHz	Horn	1	1.5	-	10dBi	-	-	-	-	-	-	Waveguide Mount	3.530" (89.66mm)	General Purpose
PE9851B-10 WR-34 Waveguide Standard Gain Ho Pasternack	7	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	27.5GHz	22GHz ~ 33GHz	Horn	1	1.5	-	10dBi	-	-	-	-	-	-	Waveguide Mount	1.050" (26.67mm)	General Purpose
PEWAN102-10ELNF WR102 GAIN HRN 7-11GHZ 10DBI Pasternack	2	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	Wide Band	9GHz	7GHz ~ 11GHz	Horn	1	1.25	-	10dBi	-	Cable - 305mm, Cable - 3.048m, Cable - 7.62m	N Type Female	-	-	-	Waveguide Mount	1.685" (42.80mm)	General Purpose

Total 14124 Record«Prev 1... 277 278 279 280281282 283 284...707 Next»

RF Antennas Electronic Components

Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.

Frequently Asked Questions

Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.

Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.

Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.

Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
