RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1022WR-8 Waveguide Standard Gain Hor |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 115GHz | 90GHz ~ 140GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | Screw-Mount | - | - | - | Screw Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1064WR-6 Waveguide Conical Gain Horn |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 106GHz | 100GHz ~ 112GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 3.500" (88.90mm) | General Purpose |
|
|
PE9863B-15WR-284 Standard Gain Horn Antenn |
4 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 16.090" (408.69mm) | General Purpose |
|
|
PEWAN075-15NFWR75 GAIN HRN 10-15GHZ 15DBI |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.122" (28.50mm) | General Purpose |
|
|
PEWAN075-15ELSFWR75 GAIN HRN 10-15GHZ 15DBI |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.122" (28.50mm) | General Purpose |
|
|
PEWAN1048WR-12 Waveguide Conical Gain Hor |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 82GHz | 77GHz ~ 87GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 4.000" (101.60mm) | General Purpose |
|
|
PEWAN1065WR-5 Waveguide Conical Gain Horn |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEANOM1140L-band Omni Antenna 1.15 GHz to |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.275GHz | 1.15GHz ~ 1.4GHz | Whip, Straight | 1 | 2 | - | 4dBi | 20 W | - | N Type Male | IP65 | - | - | - | 13.470" (342.13mm) | General Purpose |
|
PEWAN034-10WR34 GAIN HORN 22-33GHZ 10DBI |
3 |
|
Datasheet |
- | Bulk | Active | Waveguide | K-Ka Band (18GHz ~ 40GHz) | 27.4GHz | 22GHz ~ 33GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN1066WR-5 Waveguide Conical Gain Horn |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
PEWAN102-10WR102 GAIN HORN 7-11GHZ 10DBI |
3 |
|
Datasheet |
- | Bulk | Active | Waveguide | C-X Band (4GHz ~ 12GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN028-10WR28 GAIN HORN 26.5-40GHZ 10DBI |
16 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9857B-15WR-102 Waveguide Standard Gain H |
4 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 5.080" (129.03mm) | General Purpose |
|
|
PEWAN1029WR-5 Waveguide Standard Gain Hor |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1031WR-5 Waveguide Standard Gain Hor |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
|
|
PEWAN1067WR-5 Waveguide Conical Gain Horn |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|

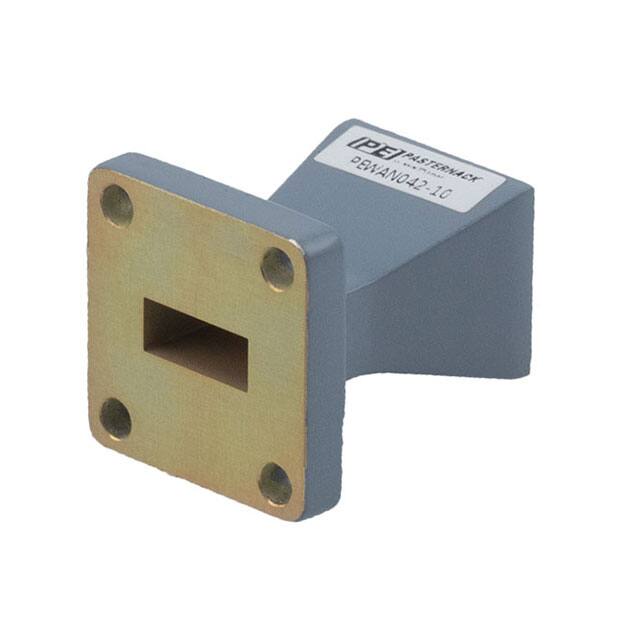

PEWAN042-10WR42 GAIN HORN 18-26.5GHZ 10DBI |
3 |
|
Datasheet |
- | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN1030WR-5 Waveguide Standard Gain Hor |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PE9854B-10WR-62 Waveguide Standard Gain Ho |
6 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.610" (40.89mm) | General Purpose |
|
|
PEANED10112 Folded Dipole antenna, 406 MHz |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 459MHz | 406MHz ~ 512MHz | Module | 1 | 1.8 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | - | 59.055" (150.00cm) | General Purpose |
RF Antennas Electronic Components
Frequently Asked Questions
Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
