RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1127WR-12 Waveguide Probe Antenna Op |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 75GHz | 60GHz ~ 90GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.200" (30.48mm) | General Purpose |
|
|
PEWAN1125WR-8 Waveguide Probe Antenna, 90 |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 115GHz | 90GHz ~ 140GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1128WR-15 Waveguide Probe Antenna Op |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | - | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.500" (38.10mm) | General Purpose |
|
PEWAN042-15WR42 GAIN HORN 18-26.5GHZ 15DBI |
13 |
|
Datasheet |
- | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9859B-15WR-137 Waveguide Standard Gain H |
8 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 6.890" (175.00mm) | General Purpose |
|
|
PE9858B-10WR-112 Waveguide Standard Gain H |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.550" (64.77mm) | General Purpose |
|
|
PE51123Portable Antenna Operates From 2 |
9 |
|
Datasheet |
- | Retail Package | Active | - | Wide Band | 2.35GHz | 2.2GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 50 W | - | N Type Male | - | - | - | Connector Mount | 18.200" (462.28mm) | - |
|
|
PEANOM1142S-band Omni Antenna 2 GHz to 2.5 |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.25GHz | 2GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 20 W | - | - | IP65 | - | - | Connector Mount | 13.470" (342.13mm) | General Purpose |
|

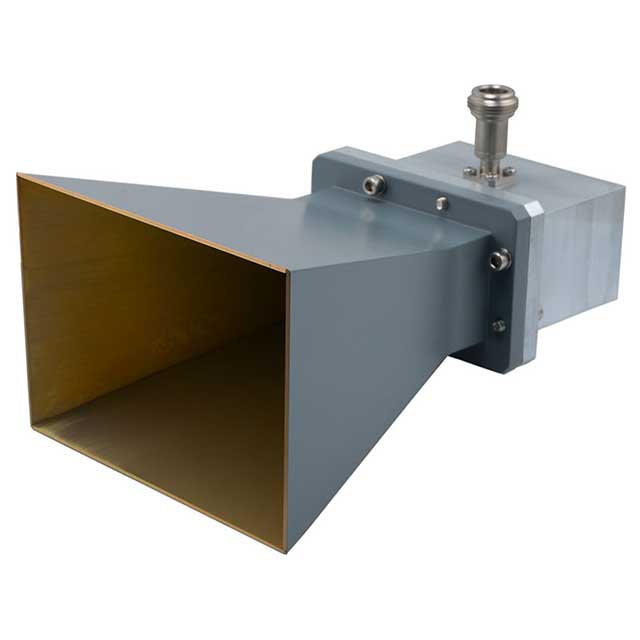

PEWAN229-10NFWR229 GAIN HRN 3.3-4.9GHZ 10DBI |
3 |
|
Datasheet |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 6.314" (160.38mm) | - |
|
|
PEWAN051-10SFWR51 GAIN HRN 15-22GHZ 10DBI |
2 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN1124WR-6 Waveguide Probe Antenna Ope |
2 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 140GHz | 110GHz ~ 170GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
PEWAN090-15WR90 GAIN HORN 8.2-12.4GHZ 15DBI |
10 |
|
Datasheet |
- | Bulk | Active | Waveguide | X Band (8GHz ~ 12GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN112-10WR112 GAIN HORN 7.05-11GHZ 10DBI |
7 |
|
Datasheet |
- | Bulk | Active | Waveguide | H Band (6GHz ~ 8GHz) | 9.03GHz | 7.05GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9850B-10WR-28 Waveguide Standard Gain Ho |
6 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
PEWAN075-15WR75 GAIN HORN 10-15GHZ 15DBI |
2 |
|
Datasheet |
- | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN159-10WR159 GAIN HORN 4.9-7.05GHZ 10DB |
15 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 5.9GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN137-15WR137 GAIN HORN 5.85-8.2GHZ 15DB |
4 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 7.03GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN229-10WR229 GAIN HORN 3.3-4.9GHZ 10DBI |
3 |
|
Datasheet |
- | Bulk | Active | Waveguide | S-C Band (2GHz ~ 8GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9860B-20WR-159 Standard Gain Horn Antenn |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 15.800" (401.32mm) | General Purpose |
|
|
PE9859B-20WR-137 Standard Waveguide Horn W |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 70.25GHz | 58.5GHz ~ 82GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 12.570" (319.28mm) | General Purpose |
