RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6720005236WI-ANT-900MHZ-7DB OMNI NF |
3 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP925BSM3F925 MHZ OMNI EDGE SLOT ANTENNA |
20 |
|
Datasheet |
- | Box | Active | - | - | 925MHz | 890MHz ~ 960MHz | - | 1 | 2 | - | 2.5dBi | 25 W | - | SMA Male | - | - | - | Adhesive | - | - |
|
151-4HHEAVY DUTY YAGI 151 MHZ ANTENNA |
25 |
|
Datasheet |
- | Box | Active | - | VHF (f < 300MHz) | 151MHz | 147MHz ~ 155MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
928-6YAGI 928 MHZ ANTENNA |
25 |
|
Datasheet |
- | Box | Active | - | - | 928MHz | 896MHz ~ 960MHz | Yagi, 6-Element | 1 | 1.2 | - | 9dBi | 50 W | Cable - 580mm | N Type Female | - | - | - | Rear Mount | - | - |
|
|
170-00006REFLECTOR 3FT HDDA5W-32-XX |
2 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
155-4HHEAVY DUTY YAGI 155 MHZ ANTENNA |
19 |
|
Datasheet |
- | Box | Active | - | VHF (f < 300MHz) | 155MHz | 152MHz ~ 158MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
|
141-4HHEAVY DUTY YAGI 141 MHZ ANTENNA |
25 |
|
Datasheet |
- | Box | Active | - | VHF (f < 300MHz) | 141MHz | 138MHz ~ 144MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
PE51OM10407 DBI OMNI 698-960MHZ N(F) |
16 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 788.5MHz, 2.755GHz | 617MHz ~ 960MHz, 1.71GHz ~ 3.8GHz | Whip, Straight | 2 | 2, 2.5 | - | 6dBi, 7dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 19.600" (497.84mm) | 5G, LTE |
|
|
LP2450BRPSM1F2450 MHZ DISC ANTENNA |
20 |
|
Datasheet |
- | Box | Active | - | - | 2.45GHz | 2.375GHz ~ 2.5GHz | - | 1 | 2 | - | 2.5dBi | 25 W | - | SMA Male | - | - | - | Adhesive | - | - |
|
|
JCE605NR4WMGNSS+NR MIMO4+V2X MIMO ANTENNA W |
2 |
|
Datasheet |
- | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 2.2GHz, 3.35GHz, 5.9GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 2.9GHz ~ 3.8GHz, 5.85GHz ~ 5.95GHz | Module | 4 | 2, 2.5, 3 | - | 4dBi, 4dBi, 4dBi, 4dBi | - | LNA | Fakra | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 5G, Beidou, Galileo, GLONASS, GNSS, GPS, V2X |
|
P24062437 MHZ DIRECTIONAL ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 6dBi | 200 W | - | N Type Female | - | - | - | Mast Mount | - | - |
|
915-15MKYAGI 915 MHZ ANT MOUNT KIT |
25 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | - | - | - |
|
|
M1621HCT-LP-SM/IRIDIUM SFX HOLE MOUNT LOW-PROFI |
17 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 2 | - | 2.5dBic | - | - | TNC Female | IP66 | - | - | Through Hole | 1.496" (38.00mm) | General Purpose |
|
PE51OM1038ANT 3.3-3.8 GHZ OMNI, 12 DBI, N |
7 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 700MHz, 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 2.7GHz | Whip, Straight | 8 | 1.7 | - | 6dBi, 8dBi | 100 W | Cable - 300mm | - | - | - | - | Pole Mount | - | - |
|
1367120000IE-ANT-O-AH-360-5-NF |
0 |
|
- |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5125GHz | 5.15GHz ~ 5.875GHz | Whip, Straight | 1 | - | - | 5dBi | 6 W | - | N Type Female | IP64 | - | - | Bracket Mount | 6.299" (160.00mm) | WLAN |
|

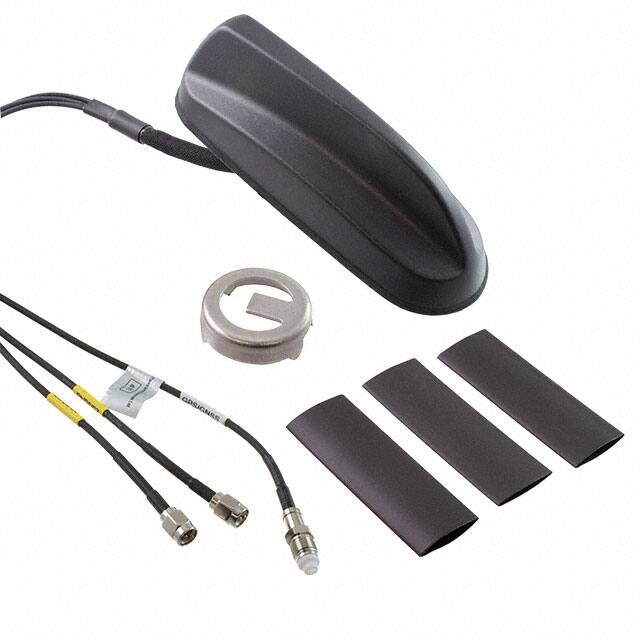

2332157-2MULTI FUNCTION MIMO ANTENNA 2G/3 |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.587GHz, 1.94GHz, 3.15GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz | Dome | 4 | 2 | - | 2dBi, 5dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
ADP2400SBFRBM2400 MHZ OMNI SPRING BASE ANT |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.43GHz | 2.35GHz ~ 2.5GHz | - | 1 | 2 | - | 2.5dBi | - | - | BNC Male | - | - | - | Connector Mount | - | - |
|
928-4L2RPTM25F-MKYAGI 928 MHZ ANT MOUNT KIT |
25 |
|
Datasheet |
- | Box | Active | - | - | 928MHz | 896MHz ~ 960MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 50 W | Cable - 7.62m | TNC Male | - | - | - | - | - | - |
|
ADP3400FXFRTF3400 MHZ PORTABLE OMNI ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 3.4GHz | 3.2GHz ~ 3.6GHz | - | 1 | 2 | - | 2.5dBi | - | - | TNC Female | - | - | - | Connector Mount | - | - |
|
H2430WLPTM11I2430 MHZ HEMI PATCH ANTENNA |
10 |
|
Datasheet |
- | Box | Active | - | - | 2.43GHz | 2.35GHz ~ 2.5GHz | - | 1 | 2 | - | 6dBi | 25 W | - | TNC Male | - | - | - | Panel Mount | 0.620" (15.75mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
