RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM502-3C3C3J3J2C-WHT-1805-Cable 2x LTE, 2x WiFi & GPS |
12 |
|
Datasheet |
LTM | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 827MHz, 1.575GHz, 2.705GHz, 2.45GHz, 5.45GHz | 694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 1.71GHz ~ 3.7GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 5 | 2 | - | 3dBi, 4dBi, 5dBi, 5dBi, 5dBi | 10 W | Cable - 4.572m | SMA (3), RP-SMA (2) | IP67 | - | - | Surface Mount | 2.780" (70.60mm) | GLONASS, GPS, LTE, Wi-Fi |
|
PE51AK1003Tri Band Duplexed Antenna Kit 10 |
9 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 140MHz | 100MHz ~ 180MHz | Whip, Straight | 1 | 1.6 | - | 2dBi | 150 W | Cable - 5.181m | NMO | - | - | - | - | 4.950" (125.73mm) | General Purpose |
|
|
PE51OM1016900 MHz 8 dBi Omnidirectional An |
8 |
|
Datasheet |
- | Retail Package | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 0.063" (1.60mm) | GSM, ISM, LoRa, LPWAN |
|
ADP1275RPTM1275 MHZ PORTABLE OMNI ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 1.275GHz | 1.25GHz ~ 1.3GHz | - | 1 | 2 | - | 2dBi | - | - | TNC Male | - | - | - | Connector Mount | - | - |
|
|
ADP4700FXFRTF4700 MHZ PORTABLE OMNI ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 4.7GHz | 4.4GHz ~ 5GHz | - | 1 | 2 | - | 2dBi | - | - | TNC Female | - | - | - | Connector Mount | - | - |
|
|
ADP2430FXFRTF2430 MHZ PORTABLE OMNI ANTENNA |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.43GHz | 2.35GHz ~ 2.5GHz | - | 1 | 2 | - | 2.5dBi | - | - | TNC Female | - | - | - | Connector Mount | - | - |
|

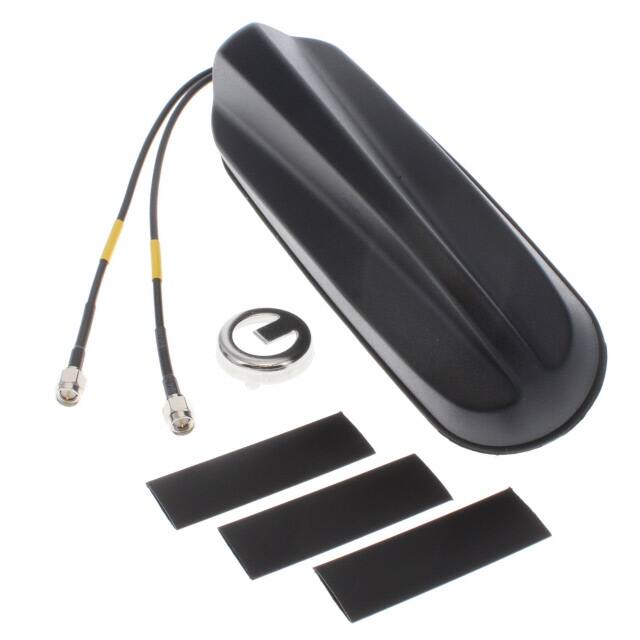

2332157-1MULTI FUNCTION MIMO ANTENNA 2G/3 |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.94GHz, 3.15GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz | Dome | 3 | 2 | - | 2dBi, 5dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
MLTM402-3C3C3J2C-WHT-180MAG-MOUNT 2X 4G/LTE, WIFI, GPS |
6 |
|
Datasheet |
LTM | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 827MHz, 1.575Hz, 2.45GHz, 2.705GHz, 5.45GHz | 694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 2.4GHz ~ 2.5GHz, 1.71GHz ~ 3.7GHz, 4.9GHz ~ 6GHz | Dome | 5 | 2 | - | 3dBi, 5dBi, 5dBi, 4dBi, 5dBi | 10 W | Cable - 4.5m | SMA (1), RP-SMA (3) | IP67 | - | - | Magnetic, Surface Mount | 2.780" (70.60mm) | GPS, LTE, Wi-Fi |
|
928-4L2RPTM25FYAGI 928 MHZ ANTENNA |
23 |
|
Datasheet |
- | Box | Active | - | - | 928MHz | 896MHz ~ 960MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 50 W | Cable - 7.62m | TNC Male | - | - | - | Rear Mount | - | - |
|
|
LTMG508-3C3C3J3J2C-WHT-1805-Cable 2x5G/LTE 2xWiFi6e GNSS F |
14 |
|
Datasheet |
LTM | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.855GHz, 6.05GHz | 617MHz ~ 960MHz, 1.71GHz ~ 6GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.2GHz | Dome | 7 | 2, 2.2 | - | 3dBi, 5dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi | 10 W | Cable - 4.572m, LNA | RP-SMA Male, SMA Male | IP67, IP69K | - | - | Panel Mount | 2.380" (60.45mm) | 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi |
|
LTMG508-3C3C3C3C2C-WHT-1805-Cable 2x 5G/LTE, 2x WiFi, GNSS |
10 |
|
Datasheet |
LTM | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 3.855GHz, , 2.45GHz, 5.45GHz | 617MHz ~ 960MHz, 1.71GHz ~ 6GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 7 | 2, 2.2 | - | 3dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi,5dBi | 10 W | Cable - 4.572m, LNA | SMA Male, RP-SMA | IPX7 | - | - | Surface Mount | 2.380" (60.45mm) | Beidou, GLONASS, GPS, GNSS, GSM, LTE, Wi-Fi |
|
|
LTMG508-3C3C3J3J2C-BLK-1805-Cable 2x5G/LTE 2xWiFi6e GNSS |
7 |
|
Datasheet |
LTM | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.855GHz, 6.05GHz | 617MHz ~ 960MHz, 1.71GHz ~ 6GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.2GHz | Dome | 7 | 2, 2.2 | - | 3dBi, 5dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi | 10 W | Cable - 4.572m, LNA | RP-SMA Male, SMA Male | IP67, IP69K | - | - | Panel Mount | 2.380" (60.45mm) | 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi |
|
PE51AK1002GPS TRIBAND KIT 108-870MHZ NMO |
10 |
|
Datasheet |
- | Bag | Active | - | Wide Band | 140MHz, 450MHz, 808MHz, 1.575GHz | 100MHz ~ 180MHz, 380MHz ~ 520MHz, 746MHz ~ 870MHz, 1.572GHz ~ 1.578GHz | Whip, Straight | 3 | 1.5, 2 | - | 2dBi, 2dBi, 2dBi, 30dBi | 10 W | Cable - 5.1816m | NMO | - | - | - | Magnetic | 4.953" (125.80mm) | General Purpose |
|
|
MXFG508-3C3C3J3J2C-WHT-1805-Cable 2x5G/LTE 2xWiFi6e GNSS |
14 |
|
Datasheet |
MXF | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 658.5MHz, 830MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 2.45GHz, 3.8GHz, 5.45GHz, 5.45GHz | 617MHz ~ 700MHz, 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz, 4.9GHz ~ 6GHz | Dome | 9 | 2.5 | - | 1dBi, 3dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi, 6dBi, 6dBi | 10 W | Cable - 4.572m, LNA | SMA Male | IP67 | - | - | Through Hole | 2.500" (63.50mm) | 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi |
|
MXFG508-3C3C3J3J2C-BLK-1805-Cable 2x5G/LTE 2xWiFi6e GNSS |
9 |
|
Datasheet |
MXF | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 658.5MHz, 830MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 2.45GHz, 3.8GHz, 5.45GHz, 5.45GHz | 617MHz ~ 700MHz, 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz, 4.9GHz ~ 6GHz | Module | 10 | 2.5 | - | 1dBi, 3dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi, 6dBi, 6dBi, 5dBi | 10 W | Cable - 1.52m, LNA | SMA Male | IP67 | - | - | Through Hole | 2.520" (64.00mm) | GNSS, LTE, Wi-Fi |
|
|
M1621HCT-HPIRIDIUM SFX HIGH-PROFILE ANTENNA |
22 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 1.6 | - | 1.7dBic | - | - | TNC Female | IP66 | - | - | Through Hole | 4.921" (125.00mm) | General Purpose |
|
|
928-4YAGI 928 MHZ ANTENNA |
24 |
|
Datasheet |
- | Box | Active | - | - | 928MHz | 896MHz ~ 960MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Rear Mount | - | - |
|
172-4HHEAVY DUTY YAGI 172 MHZ ANTENNA |
25 |
|
Datasheet |
- | Box | Active | - | VHF (f < 300MHz) | 172MHz | 168MHz ~ 176MHz | Yagi, 4-Element | 1 | 1.2 | - | 7dBi | 150 W | Cable - 610mm | N Type Female | - | - | - | Rear Mount | - | - |
|
1-2823596-1RF ANT 829MHZ/2.2GHZ DOME SMA ML |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2.5 | - | 5dBi | 50 W | - | SMA Male | IP66 | - | - | Panel Mount | 2.441" (62.00mm) | LTE, WLAN |
|
|
1-2823596-2RF ANT 829MHZ/2.2GHZ DOME SMA ML |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2.5 | - | 5dBi | 50 W | - | SMA Male | IP66 | - | - | Panel Mount | 2.441" (62.00mm) | LTE, WLAN |
