RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAN62311DMMULTIBAND ANTENNA 2 LTE 3 WIFI |
0 |
|
Datasheet |
Panther | Bulk | Active | Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.93GHz, 2.45GHz, 2.5GHz, 3.25GHz, 5.4GHz | 960MHz ~ 1.695GHz, 2.17GHzGHz ~ 2.3GHz, 2.9GHz ~ 2.9GHz ~ 3.6GHz, 4.9GHz ~ 5.925GHz | Dome | 9 | 1.4, 1.5 | - | 1dBi, 4dBi, 4.5dBi, 5dBi, 30dBi | - | LNA | SMA Male | IP67 | - | - | Magnetic | 2.992" (76.00mm) | Beidou, DSRC, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
AN_MASTER_004Maswell Ultra Wideband Log Perio |
4 |
|
Datasheet |
- | Box | Active | Cellular, WiFi, Ultra Wideband | Wide Band | 600MHz, 700MHz, 800MHz, 900MHz, 1.4GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.6GHz, 3.5GHz, 4.8GHz, 5.0GHz, 5.8GHz, 6.0GHz | 600MHz ~ 6GHz | Log Periodic | 1 | 2 | - | 6.8dBi | - | Cable - 4m | N Type Male, SMA Male | - | - | - | Bracket Mount | 17.402" (442.00mm) | 2G, 3G, 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™, WiFi6 |
|
|
EB8965CRF ANT 933MHZ WHIP STR NMO BASE |
3 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | 2 | - | 5dBi | 200 W | - | NMO | - | - | - | Base Mount | - | GSM |
|
|
ANT-MA520ABC008RF ANT 892MHZ/1.94GHZ DOME SMA |
16 |
|
Datasheet |
Hercules | Bulk | Active | Cellular | Wide Band | 892MHz, 1.94GHz, 2.4GHz, 5.8GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.83GHz | Dome | 4 | - | -25dB | 3.8dBi | 10 W | - | SMA Male | IP67 | - | - | Panel Mount | 1.142" (29.00mm) | CDMA, EVDO, GPRS, GSM, UMTS, WCDMA |
|
|
AN_MASTER_CUBIC_2C2W4 in 1 Combo 2x2 MIMO 5G & WiFi |
4 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 4.3GHz, 4.65GHz | 600MHz ~ 7.2GHz, 2.1GHz ~ 8GHz | Module | 2 | 1.5, 3 | - | 6dBi, 4dBi | - | Cable - 2m | SMA Male (1), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 3.587" (91.10mm) | 5G, Wi-Fi |
|
RAZ62311DMRF ANT 802MHZ/1.582GHZ MOD PANEL |
0 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (3) | IP67 | - | - | Panel Mount | 3.644" (92.55mm) | GPS, LTE, Wi-Fi |
|
|
LTM302-3C3C2C-WHT-1803-Cable 2xLTE GPS Fleet Mgt Ante |
7 |
|
Datasheet |
LTM | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 827MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.705GHz | 694MHz ~ 960MHz, 1.71GHz ~ 3.7GHz | Dome | 5 | 2 | - | 3dBi, 5dBi, 5dBi, 5dBi, 4dBi | 10 W | Cable - 4.572m, LNA | SMA Male | IP67, IP69K | - | - | Panel Mount | 2.380" (60.45mm) | 4G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS |
|
LTM301-3C3C2C-WHT-1803-Cable 2xLTE GPS Fleet Mgt Ante |
2 |
|
Datasheet |
LTM | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 827MHz, 1.575GHz, 1.94GHz | 694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 1.71GHz ~ 2.17GHz | Dome | 3 | 2 | - | 3dBi, 5dBi, 4dBi | 10 W | Cable - 4.572m | SMA (3) | IP67 | - | - | Surface Mount | 2.780" (70.60mm) | GPS, LTE |
|
|
AN_MASTER_CUBIC_4C1GNGNSS & 4x4 5G MIMO Combo Antenna |
2 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 1.581GHz, 4.3GHz | 600MHz ~ 1.602GHz, 1.561GHz ~ 8GHz | Module | 2 | 1.5, 3 | - | 5dBic, 6dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Panel Mount | 3.587" (91.10mm) | 5G, GNSS |
|
|
AN_MASTER_CUBIC_4CMASWELL 5G 4X4 MIMO ANTENNA SCRE |
5 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

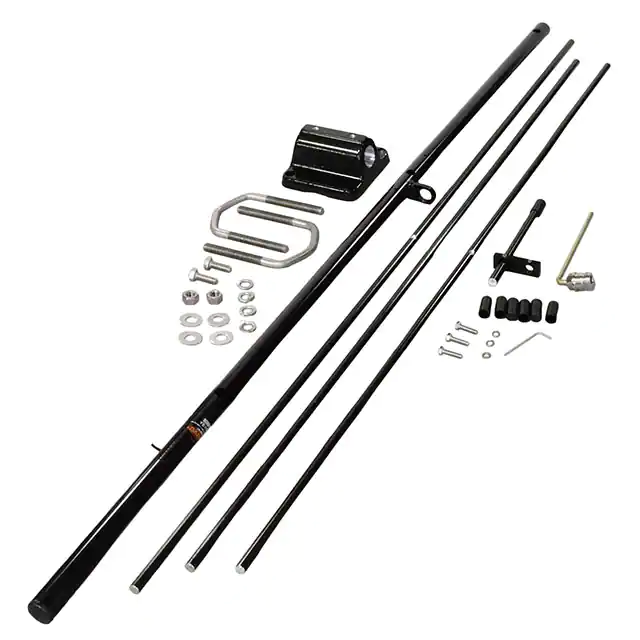

YB1503RF ANT 162MHZ YAGI N FEM BRKT MT |
3 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Yagi, 3-Element | 1 | 2 | -10dB | 7.1dBd | 300 W | - | N Type Female | - | - | - | Bracket Mount | 39.250" (996.95mm) | - |
|
CVWG502-2C2C2J2J2C-BLK-192Covert 2xLTE 2xWiFi GNSS 5-Cable |
7 |
|
Datasheet |
CVW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 827MHz, 1.575Hz, 1.612GHz, 2.23GHz, 2.45GHz, 5.45GHz | 694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 1.71GHz ~ 2.75GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 3dBi, 5dBi, 4dBi, 5dBi, 5dBi | 10 W | Cable - 3m | SMA (5) | IP67 | - | - | Adhesive | 0.748" (19.00mm) | GPS, GLONASS, LTE, Wi-Fi |
|
|
RAZ62311MMRF ANT 802MHZ/1.582GHZ MOD MAGNT |
12 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (3) | IP67 | - | - | Magnetic | 3.727" (94.67mm) | GPS, LTE, Wi-Fi |
|
RAZ62312MMRF ANT 802MHZ/1.582GHZ MOD MAGNT |
4 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (3) | IP67 | - | - | Magnetic | 3.727" (94.67mm) | GPS, LTE, Wi-Fi |
|
|
AN_MASTER_CUBIC_2C2W1GN5 in 1 Combo 2x2MIMO 5GWiFiGNSS |
2 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 1581GHz, 4.3GHz, 4.65GHz | 600MHz ~ 1.602GHz, 1.561GHz ~ 7.2GHz, 2.1GHz ~ 8GHz | Module | 3 | 1.5, 3 | - | 5dBic, 6dBi, 4dBi | - | Cable - 2m, LNA | SMA Male | IP67 | - | - | Panel Mount | 3.587" (91.10mm) | 5G, GNSS, Wi-Fi |
|
|
OI-915GISFPM915 MHZ GROUND IND SLOT OMNI NR |
10 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | - | 1 | - | - | 2.5dBi | 50 W | - | SMA Female | - | - | - | Magnetic | - | - |
|
|
ANT-2450-3-O2.4 GHZ ANTENNAS FOR SMART RADIO |
8 |
|
Datasheet |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.361GHz | 2.24GHz ~ 2.482GHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 50 W | - | SMA Male | IP67 | - | - | Connector Mount | 5.394" (137.00mm) | - |
|
AN.HORN.5G.MMWAVE.26.40.WR28Maswell 5G mmwave Horn Antenna |
4 |
|
Datasheet |
- | Bulk | Active | - | - | - | 26.5GHz ~ 40GHz | Horn | - | 1.2 | - | 12dBi | - | - | - | - | - | - | - | - | - |
|
|
2J6B86BGFFROOF 9IN1 5GNR/4G/3G/2G SCREW M |
7 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | 25 W | - | - | - | - | - | Screw Mount | - | - |
|
TRP-20INT-6-BRF ANT 657.5MHZ DOME RP-SMA PAN |
3 |
|
Datasheet |
Trooper | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz | Dome | 10 | 1.2, 1.4, 1.5, 1.6, 1.8, 2, 2.2 | - | 4dBi, 5dBi, 5.5dBi, -2dBic, 3dBic, 6.5dBi, 9.4dBi, 8.8dBi, 6.8dBi, 9.4dBi, 10.1dBi | 25 W | Cable - 5.1816m | RP-SMA (1), SMA (2) | - | - | - | Panel Mount | 3.460" (87.88mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi |
