RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMYD757K-DPRF ANT 772.5MHZ YAGI N TYP F POL |
9 |
|
Datasheet |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 772.5MHz | 757MHz ~ 788MHz | Yagi, 7-Element | 1 | 1.5 | 14dB | 12dBi | 200 W | - | N Type Female | - | - | - | Pole Mount | 37.000" (939.80mm) | ISM, LoRa, LPWAN |
|
BOA7465RF ANT 766.5MHZ WHIP N TYP F BRK |
10 |
|
Datasheet |
- | Box | Active | WiFi | UHF (300MHz ~ 1GHz) | 766.5MHz | 746MHz ~ 787MHz | Whip, Straight | 1 | 1.5 | - | 5.1dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 55.000" (139.70cm) | Wi-Fi |
|
BOA9025RF ANT 915MHZ WHIP STR N TYPE |
7 |
|
Datasheet |
BOA | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 5.1dBi | 250 W | - | N Type Female | - | - | - | Mast Mount | 55.000" (139.70cm) | ISM, LoRa, LPWAN |
|
BOA-LCMGPS-PTNMRF ANT 1.575GHZ WHP N TYP M POLE |
5 |
|
Datasheet |
- | Box | Active | Cellular, Navigation | Wide Band | 1.575GHz, 1.695GHz | 690MHz ~ 2.7GHz | Whip, Straight | 2 | 1.5, 2 | - | 2dBi | 50 W | Cable - 1.2m, LNA | N Type Male | IP54 | - | - | Pole Mount | 20.000" (508.00mm) | 2G, 3G, 5G, Cellular, GPS, LTE |
|
A09-F8NF-MRF ANT 900MHZ WHIP STR N FEM 65" |
18 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 8.1dBi | - | - | N Type Female | - | - | - | Bracket Mount | 65.000" (165.10cm) | - |
|
AQHA.11.A.101111TORPEDO AQHA.11.A ACTIVE GNSS EX |
5 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.6016GHz | - | Dome | 3 | - | - | 0.7dBi, 1dBi, 1dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 4.724" (120.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
PCT-RSA-160RF ANT 160MHZ MOD N TYP F STUD |
3 |
|
Datasheet |
PCT-RSA | Box | Active | - | VHF (f < 300MHz) | 160MHz | 158MHz ~ 162MHz | Module | 1 | 1.5 | - | 2dBi | 100 W | - | N Type Female | - | - | - | Stud, Through Hole | 4.291" (109.00mm) | TETRA/P25 |
|
BOA8905HNFOMNIDIRECTIONAL STATION ANTENNA |
5 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BOA5G2X2L125PTNMRF ANT 788.5MHZ DIRECT N TYP M |
25 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.7GHz, 5.45GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Directional Antenna | 4 | 2 | - | 3.5dBi, 4dBi, 4.5dBi, 3.5dBi | 50 W | - | N Type Male | IP54 | - | - | Collar Mount | 22.571" (573.30mm) | 2G, 3G, 4G, 5G, Cellular, GSM, LTE |
|
PCT-RSABD-DPRF ANT 5.4GHZ MOD QMA F STUD/TH |
3 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Module | 1 | 2 | - | 10dBi, 13dBi | - | - | QMA Female | IP56 | - | - | Stud, Through Hole | 3.346" (85.00mm) | Bluetooth, Wi-Fi |
|
|
GL125-DLTEMIMOCOACH II -PERMANENT MOUNT |
24 |
|
Datasheet |
Coach™ II | Box | Active | - | Wide Band | 1.22GHz, 1.5575GHz | 1.15GHz ~ 1.29GHz, 1.5GHz ~ 1.615GHz | Module | 2 | 2:1 | - | 28dBi | 25 W | LNA, Filter | - | IP67 | - | - | - | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
GL125-DLTEMIMO-SMCOACH II 5G CELLULAR GNSS MULTI |
15 |
|
Datasheet |
Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 649MHz, 750MHz, 892MHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4125GHz | 600MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Module | 1 | 3 | - | 5.1dBi | 25 W | Filter | SMA | IP67 | - | - | Stud | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
BOA2177RF ANT 219.5MHZ WHIP N TYP F BRK |
3 |
|
Datasheet |
- | Tube | Active | - | VHF (f < 300MHz) | 219.5MHz | 217MHz ~ 222MHz | Whip, Straight | 1 | 2 | - | 7.1dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 150.984" (383.50cm) | - |
|
|
AC31700-01BANT BOOSTER 5G 4G LTE SMD CHIP |
800 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz | 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz | Chip | 4 | 4.5, 5, 3.5, 3.4 | -3.9dB, -3.5dB, -5.1dB, -5.3dB | 1dBi, 0.5dBi, 3dBi, 5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
|
|
L9000090-01ANTENNA 2.4GHZ METAL STAMP THM |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

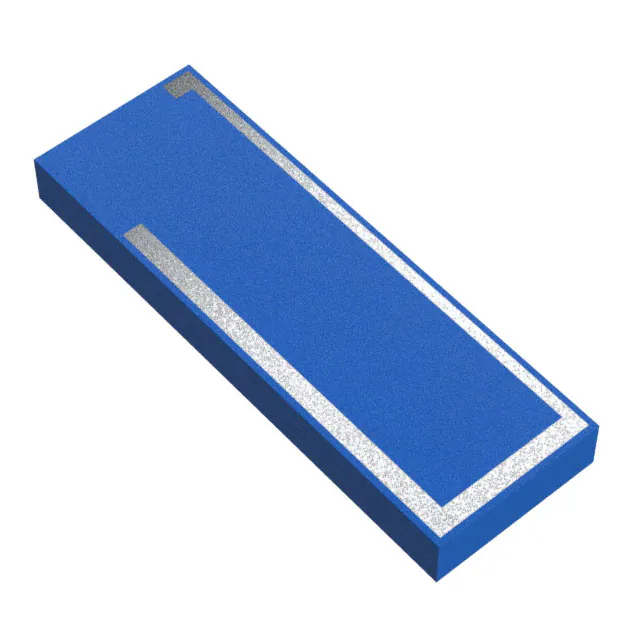

ANT1204LL16R0870ARF ANT 870MHZ CHIP SOLDER SMD |
1,000 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 870MHz | - | Chip | 1 | - | 6.49dB | 1.05dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM |
|
ANT-868-CPARF ANT 868MHZ PATCH ISM 25X25 |
0 |
|
Datasheet |
CPA | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 876MHz | Ceramic Patch | 1 | 9.5 | -1.8dB | -5.9dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.200" (4.00mm) | ISM, LPWA |
|
W3333RF ANT 895MHZ/2.4GHZ PCB TRACE |
324 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 895MHz, 2.4GHz | 863MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | PCB Trace | 2 | - | -15dB | 4dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN, Zigbee™ |
|
|
FXUB16.07.0150AQWIDEBAND CELLULAR 90X15MM FLEX P |
79 |
|
Datasheet |
Maximus | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Patch | 8 | - | - | -0.17dBi, 0.5dBi, -0.52dBi, -1.54dBi, 3dBi, 4.1dBi, 6.05dBi, 6.32dBi | 2 W | Cable - 150mm | I-PEX MHFI | - | - | - | Adhesive | 0.009" (0.24mm) | 2G, 3G, 4G, 5G, Cat-M, IoT, LTE, NB-IoT, NR, Wi-Fi |
|
|
2372105-1LTE ANTENNA COTS PCB ASSEMBLY 15 |
455 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 3 | - | 2.5dB, 2.5dB, 2.5dB | - | Cable - 150mm | - | - | - | - | Adhesive | 0.039" (1.00mm) | LTE, UMTS, WCDMA |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
