RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZA-C-0G011.559GHZ-1.606GHZ SMD ACTIVE |
2,000 |
|
Datasheet |
CENTAURI | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.9 | -7dB | 0.1dBi | - | LNA | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MAF94353RF ANT 2.4/5.5GHZ PCB TRACE IPEX |
495 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 2.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | - |
|
1001435M0-AA10L0070NANTENNA ASSY, WLAN M0 70 |
1,397 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 70mm | Solder | - | - | - | Surface Mount | 0.374" (9.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ATIGG2540RF ANT GNSS/GPS CER PATCH IPEX |
284 |
|
Datasheet |
ATIGG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz | Ceramic Patch | 2 | 2 | - | 2dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
IWX-282BSAXBANT 2.4 WHIP SMA PLUG MALE |
979 |
|
Datasheet |
282 | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.6 | -12.7dB | 2.4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, ISM, WiFi, ZigBee |
|
|
IWX-282BRSXBANT 2.4 WHIP RP-SMA PLUG FEMALE |
957 |
|
Datasheet |
282 | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.6 | -12.7dB | 2.4dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, ISM, WiFi, ZigBee |
|
APAKM3513-SGL2RF ANT GPS L1+L2 STACK PATCH |
0 |
|
Datasheet |
APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | 1.227GHz, 1.575GHz | Ceramic Patch | 2 | 2 | - | 1.2dBi, 3.1dBi | - | - | Solder | - | - | - | Through Hole | 0.531" (13.50mm) | GPS |
|
|
2108790-2PCB ANTENNA SINGLE BAND TAPE AND |
3,500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | SHF (f > 4GHz) | 2.441GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-868-JJB-HT-TRF ANT 868 MHZ DOME SLD TH |
0 |
|
Datasheet |
JJB-HT | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 890MHz | Whip, Straight | 1 | 2 | - | -10.5dBi | - | - | Solder | - | - | - | Through Hole | 0.480" (12.20mm) | ISM, LoRaWAN, Sigfox |
|
RCA-W1A0-1204-Z-001RF ANT 433MHZ CHIP SOLDER SMD |
2,987 |
|
Datasheet |
RCA | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | - | 6.5dB | 0.79dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|
|
IHF-2120MPXW-W015ANT 2.4 WHIP 150MM CABLE MHF1 |
991 |
|
Datasheet |
2120 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.2 | -20.8dB | 2.7dBi | 1 W | Cable - 150mm | MHF1, U.FL | - | - | - | Panel Mount | 0.551" (14.00mm) | Bluetooth, ISM, WiFi, ZigBee |
|
1513381-1RF ANT 4.6GHZ MODULE U.FL PAN MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.6GHz | 3.1GHz ~ 6GHz | Module | 1 | 3 | - | 4dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | - |
|
ATIGG1540-1RF ANT GNSS/GPS CER PATCH IPEX |
186 |
|
Datasheet |
ATIGG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.609GHz | 1.574GHz ~ 1.576GHz, 1.608GHz ~ 1.61GHz | Ceramic Patch | 2 | 2 | - | 1dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ATIGGB2540RF ANT GPS/GLONASS/BEIDOU PATCH |
175 |
|
Datasheet |
ATIGGB | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz, 1.6GHz, 1.66GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.659GHz ~ 1.663GHz | Ceramic Patch | 3 | 2 | - | -2.5dBi, -1.5dBi, -1dBi | - | Cable - 60mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|

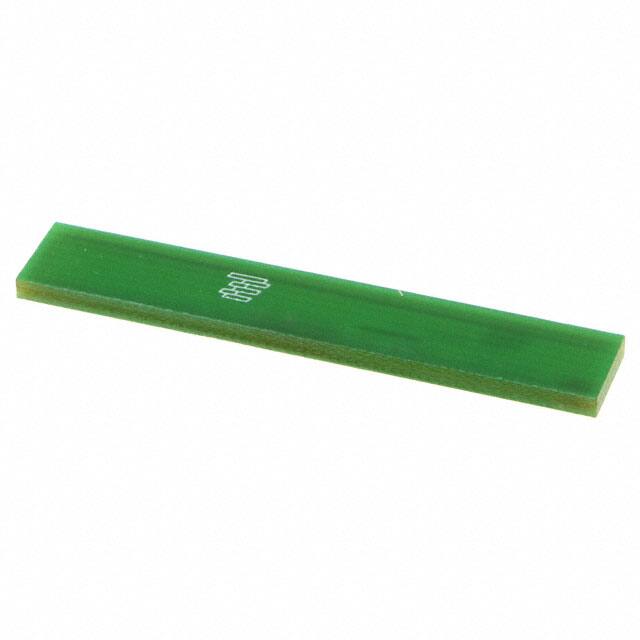

1513156-1RF ANT 915MHZ PCB TRACE SLDR SMD |
2,344 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2.5 | - | 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | ZigBee™ |
|
SZK-C-2L18NB-IoT LTE ANT FLAT PATCH IPEX |
390 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 875.5MHz, 1.955GHz, 2.35GHz, 5.595GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 4 | - | - | 2.88dBi, 4.31dBi, 1.95dBi, 2.01dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, LTE, NB-IOT |
|
|
ATIGGB1840RF ANT GPS/GLONASS/BEIDOU PATCH |
285 |
|
Datasheet |
ATPGGB | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.571GHz ~ 1.576GHz, 1.574GHz ~ 1.579GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | 2 | - | 28dBi, 28dBi, 28dBi, 28dBi | - | Cable - 70mm, LNA | I-PEX | - | - | - | Surface Mount | 0.295" (7.50mm) | Beidou, Galileo, GLONASS, GPS |
|
APAMS-103RF ANT 900MHZ/1.8GHZ FLAT BAR |
0 |
|
Datasheet |
APAMS | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 870MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Flat Bar | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.150" (3.80mm) | GSM |
|
ANT1085-4R1-01ARF ANT 4.2GHZ CHIP SOLDER SMD |
1,675 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.2GHz | 3.1GHz ~ 5.2GHz | Chip | 1 | 3 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
SZA-C-0G031.559GHZ-1.606GHZ SMD ACTIVE |
985 |
|
Datasheet |
PROXIMA | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.9 | -7dB | 0.1dBi | - | LNA | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
