RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-8/9-PW-LPNANT 868/915MHZ HELIC SCRW MNT |
1,586 |
|
Datasheet |
ANT-8/9-PW-LPN | Tray | Obsolete | 802.15.4, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Helical | 2 | 1.7, 2.5 | - | 5.8dBi, 6.8dBi | 15 W | - | Solder | - | - | - | Screw Mount | 1.846" (46.90mm) | 802.11ah, ISM, LoRaWAN, SigFox, Wi-Fi, Zigbee™ |
|
1513259-9RF ANT 892MHZ/1.85GHZ PCB TRACE |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE |
|
|
NGRM2050US0R433G3TRFRF ANT FR4 CHIP 2050 433Mhz SOL |
2,470 |
|
Datasheet |
NGRM | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 433MHz | 433.05MHz ~ 434.79MHz , 450MHz ~ 470MHz | Chip | 3 | 2.5 | - | -0.2dBi | - | - | Solder | - | - | - | Surface Mount | - | ISM, LoRa, LPWAN |
|
AN_W_CA_5020_M01WIFI/BLUETOOTH CHIP ANTENNA |
987 |
|
Datasheet |
- | Cut Tape (CT) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi |
|
1513259-1RF ANT 850/900MHZ PCB TRACE SLD |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 4 | 3 | - | 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE, ZigBee™ |
|
|
NGCM7020US0R915G1TRFRF ANT CER CHIP 7020 915Mhz SOL |
2,975 |
|
Datasheet |
NGCM | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | - | ISM, LoRa, LPWAN |
|
|
ATIFGGBL5-4020RF ANT GPS L1+L5/GLONASS/BEIDOU |
180 |
|
Datasheet |
ATIF | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.6GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | PCB Trace | 4 | 2 | - | 2dBi, 2dBi, 2dBi, 2dBi | 50 W | Cable - 60mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
AN110204-01SRF ANT UMTS/LTE PCB SOLDER MOUNT |
239 |
|
Datasheet |
AN110204 | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 1.93, 2.32 | -8dB, -10dB | 1.7dBi, 3.6dBi | 10 W | - | Solder | - | - | - | Solder | 0.063" (1.60mm) | 3G, 4G, 5G, Iot, ISM, LP-WAN, RFID, Smart Meters |
|
ANT-418-USP-TRF ANT 418MHZ CHIP SOLDER SMD |
2,000 |
|
Datasheet |
microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Chip | 1 | 2 | - | -8.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
RAC00024-BBULK 2.4GHZ ANTENNA |
200 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
NN01-110MICRO REACH XTEND - 110 |
7,500 |
|
Datasheet |
Micro Reach Xtend™ | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | - | Bluetooth, Wi-Fi |
|
|
RAC00915-RT&R 900MHZ ANTENNA |
1,700 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Stamped Metal | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

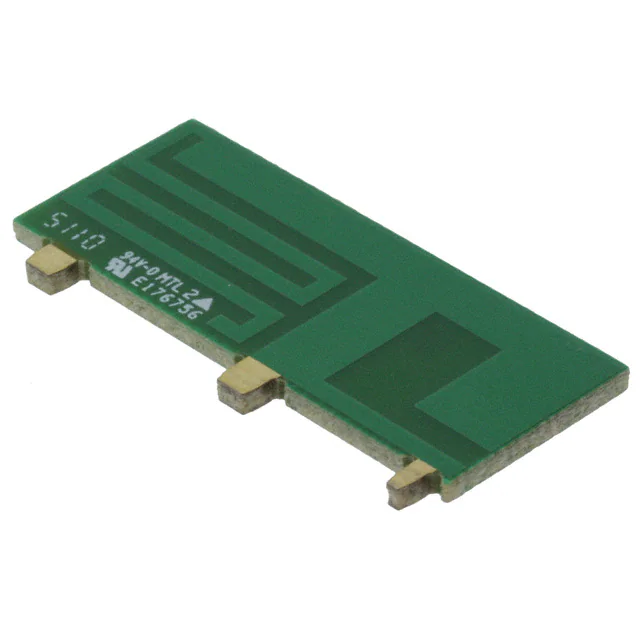

1513434-1RF ANT 920MHZ/1.8GHZ PCB TRACE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | 2.5 | - | 0dBi, 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | - |
|
|
AN110205-01SRF ANT UMTS/LTE/5G PCB SOLDER |
240 |
|
Datasheet |
AN110205 | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | 1.93, 1.93 | -10dB, -10dB | 1.6dBi, 3.4dBi | 10 W | - | Solder | - | - | - | Solder | 0.063" (1.60mm) | 3G, 4G, 5G, Iot, ISM, LP-WAN, RFID, Smart Meters |
|
|
SR43W078BILLI SURFACE MOUNT WI-FI6E ANTE |
1,777 |
|
Datasheet |
lamiiANT® | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.4GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | 2.1, 2.45 | -10dB, -7.5dB | 2.9dBi, 4.7dBi, 4.9dBi | - | - | - | - | - | - | Surface Mount | 0.039" (1.00mm) | 802.11a/b/g/j/-c/ax, Wi-Fi |
|
|
RAC00245-BBULK 2.4GHZ/5GHZ DUAL BAND ANTEN |
200 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Stamped Metal | 2 | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AN100201-01HRF ANT 868MHZ/915MHZ PCB U.FL. |
294 |
|
Datasheet |
AN100201 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 875MHz | 800MHz ~ 950MHz | PCB Trace | 1 | 1.79 | -11dB | 1.1dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters |
|
|
AN100202-01HRF ANT SRD860 ISM915 PCB U.FL. |
249 |
|
Datasheet |
AN100202 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 875MHz | 800MHz ~ 950MHz | PCB Trace | 1 | 1.79 | -11dB | 1.5dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters |
|
|
AN110206-01SRF ANT 3G/4G/5G WLAN PCB SOLDER |
231 |
|
Datasheet |
AN110206 | Bulk | Active | Cellular/LTE | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 829MHz, 2.205GHz, 4.65GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 6GHz | PCB Trace | 3 | 1.93, 1.93, 2.62 | -10dB, -10dB, -7dB | -0.3dBi, 0.8dBi, 2.2dBi | 10 W | - | Solder | - | - | - | Solder | 0.063" (1.60mm) | 3G, 4G, 5G, Iot, ISM, LP-WAN, RFID, Smart Meters |
|
2195764-1GPS+ GLONASS / ACM4-5036-A1-CC-S |
589 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.5925GHz | 1.57GHz ~ 1.615GHz | Chip | 1 | 2 | - | 3.2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.028" (0.70mm) | GNSS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
