RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT016008LCD1575MA1RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,198 |
|
Datasheet |
ANT | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.574GHz ~ 1.576GHz, 2.4GHz ~ 2.484GHz | Chip | 2 | 4 | - | -2.9dBic, 2.97dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | GPS |
|
5500AT07A0900001TRF ANT 5.5GHZ CHIP SOLDER SMD |
9,944 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | - | -6dB | 1dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | - |
|
1513797-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2.5 | - | 1dB | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
NGCL5030US0R433G1TRFRF ANT CER CHIP 5030 433Mhz SOL |
5,970 |
|
Datasheet |
NGCL | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 433MHz | 4.3305GHz ~ 4.3479GHz | Chip | 1 | 2 | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | - | ISM, LoRa, LPWAN |
|
1513150-1RF ANT 2.4GHZ STAMPED MET SLD |
0 |
|
Datasheet |
- | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Stamped Metal | 1 | 2.5 | - | 4.5dB | - | - | Solder | - | - | - | Surface Mount | 0.118" (2.99mm) | Bluetooth, WiMedia™, WLAN, Zigbee™ |
|
1513454-1RF ANT 1.9GHZ PUCK SOLDER SMD |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.88GHz ~ 1.9GHz | Puck | 1 | 3 | - | 0dB | - | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | - |
|

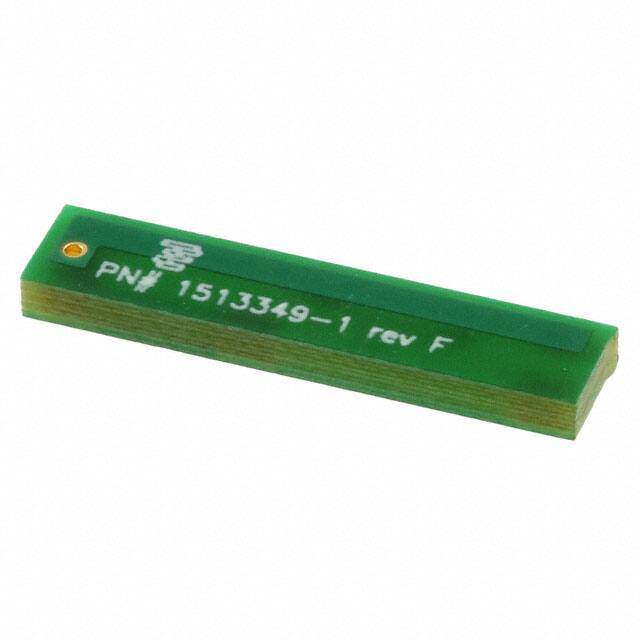

1513349-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | Bluetooth, WLAN, Zigbee™ |
|
SATCA-3C1GF-GPB1RF ANT 1560-1606MHZ PATCH SMD |
4,446 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.56GHz ~ 1.606GHz | Chip | 1 | 2 | - | 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
CUSTOM_ANTENNACUSTOM ANTENNA |
99,999,840 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AMCA52-2R540G-S1F-TRF ANT 2.5GHZ CHIP SOLDER SMD |
958 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.44GHz ~ 2.64GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
|
AMCA52-2R710G-S1F-TRF ANT 2.7GHZ CHIP SOLDER SMD |
928 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.7GHz | 2.61GHz ~ 2.81GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
|
AMCA52-2R510G-S1F-TRF ANT 2.5GHZ CHIP SOLDER SMD |
453 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.41GHz ~ 2.61GHz | Chip | 1 | 2 | - | 2.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
|
AMCA62-2R640G-01F-TRF ANT 2.6GHZ CHIP SOLDER SMD |
983 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.6GHz | 2.54GHz ~ 2.74GHz | Chip | 1 | 2 | - | 2.6dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | BRS, WiMax™, WLAN |
|
|
NGCL1206UV1R575G2TRFRF ANT CER CHIP 1206 1575Mhz SO |
4,996 |
|
Datasheet |
NGCL | Tape & Reel (TR) | Active | GPS, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 1.57542GHz ~ 2.5GHz | Chip | 2 | 2 | - | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | - | Bluetooth, GLONASS, GPS, Wi-Fi, WLAN |
|
1513245-1RF ANT 1.9GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4 | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.71GHz ~ 1.99GHz | PCB Trace | 1 | 2 | - | 2dB | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | ZigBee™ |
|
2195760-1WIFI DUAL BAND + GNSS, SINGLE FE |
10,181 |
|
Datasheet |
- | Bag | Obsolete | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.5825GHz, 2.45GHz, 5.5125GHz | 1.559GHz ~ 1.606GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 3 | 2.5 | - | 1dBi, 3dBi | 10 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, GNSS, Wi-Fi, Zigbee™ |
|
H2U38D1E1B0100UNICTRON CW324S - WIFI / BLUETOO |
346 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
AMCA72-2R860G-02F-TRF ANT 2.9GHZ CHIP SOLDER SMD |
790 |
|
Datasheet |
AMCA | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.9GHz | 2.76GHz ~ 2.96GHz | Chip | 1 | 2 | - | 2.7dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WiMax™, WLAN |
|
1513169-1RF ANT 850MHZ PCB TRACE SLDR TH |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 894MHz | PCB Trace | 1 | 2.5 | - | 2dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.600" (15.24mm) | GSM, ZigBee™ |
|
APAKN1304-S5517-TRF ANT 5GHZ CER PATCH SOLDER SMD |
0 |
|
Datasheet |
APAK | Bulk | Active | General ISM, WiFi | SHF (f > 4GHz) | 5GHz | 5.15GHz ~ 5.885GHz | Ceramic Patch | 1 | - | -10dB | 6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | ISM, Wi-Fi |
