RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG2409RD-RTPANTRUBBER DUCK 2.4GHZ 9DBI |
203 |
|
Datasheet |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | RP-TNC | - | - | - | Connector Mount | 15.200" (386.08mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
GVLB356.AGPS/GLONASS/BEIDOU SINGLE FEED S |
69 |
|
Datasheet |
- | Tray | Active | Navigation | Wide Band | 1.227GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Ceramic Patch | 4 | 2, 3, 4 | - | 4.03dBi, 2.73dBi, 2.73dBi, 3.08dBi | - | - | Pin | - | - | - | Adhesive | 0.241" (6.12mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
OD617-6000M243ANT DAS OMNI 4G LTE 5G CBRS MIMO |
40 |
|
Datasheet |
Omni Antenna | Box | Active | Cellular | Wide Band | 711.5MHz, 883MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 6 | 1.8 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female (2) | IP50 | - | - | Through Hole | 0.709" (18.00mm) | 4G, 5G |
|
|
RO2406NMRF ANT 2.4GHZ WHIP STR N MALE |
159 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 20 W | - | N Type Male | IP67 | - | - | Connector Mount | 11.830" (300.48mm) | - |
|
|
L000322-012-PORT - 2X 4G/5G ANTENNA |
44 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 729MHz, 860MHz, 2.19GHz, 3.55GHz | 698MHz ~ 760MHz, 760MHz ~ 960MHz, 1.69GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 4 | 1.75, 2 | - | 2dBi, 2.8dBi, 3dBi, 3dBi | 20 W | Cable - 1m | SMA Female (2) | IP67, IP69K | - | - | Stud | 1.969" (50.00mm) | 4G, 5G, Wi-Fi |
|
|
LPTNG24-71DMG0457ANT WIFI 6E/7 TRI BAND SMA MALE |
48 |
|
Datasheet |
Monopole Antenna | Bag | Active | General ISM, WiFi | Wide Band | 2.45GHz, 6.012GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.125GHz | Module | 2 | 2, 2.5 | - | 2.6dBi, 2.9dBi | 3 W | Cable - 457.2mm | SMA Male | IP67 | - | - | Direct Mount | 1.420" (36.07mm) | DSRC, ISM, Wi-Fi |
|
|
AHP5354A.07.0100CGNSS L1/L5 ACTIVE PATCH 2 STAGE |
60 |
|
Datasheet |
Inception | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Flat Patch | 4 | 1, 2 | - | 2.07dBi, 2.61dBi, 2.61dBi, 2.06dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | PCB | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AA.178.B.301111MAGMAX2 ACTIVE GPS L1/L5 MAG MOU |
50 |
|
Datasheet |
Magma X | Bag | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 4 | 3, 4 | - | 0.26dBi, 0.04dBi, 0.04dBi, -0.5dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AA.175.B.301111MAGMAX2 GPS L1/L2 MAG MOUNT ANTE |
44 |
|
Datasheet |
Magma X | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.562GHz, 1.575GHz, 1.603GHz | 1.217GHz ~ 1.238GHz, 1.559GHz ~ 1.586GHz, 1.596GHz ~ 1.61GHz | Module | 4 | 2, 3, 4 | - | 1.27dBi, 0.04dBi, 0.04dBi, 0.06dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
L000321-013-PORT - WIFI,4G/5G,GNSS ANTENNA |
33 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 724MHz, 800MHz, 905MHz, 1.5825GHz, 2.19GHz, 2.45GHz, 3.55GHz, 5.525GHz | 698MHz ~ 750MHz, 750MHz ~ 850MHz, 850MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.9GHz | Dome | 8 | 1.5, 2, 3.5, 3.9, 4 | - | 1.83dBi, 1.83dBi, 1.83dBi, 3dBi, 6dBi, 3dBi, 6dBi, 4dBi | 20 W | Cable - 1m, LNA | RP-SMA, SMA | IP67 | - | - | Stud | 1.024" (26.00mm) | 4G, 5G, GNSS, Wi-Fi |
|
AECS1806D07ZS-3000SRF ANT 4IN1 LTE MIMO/GNSS/AMFM S |
95 |
|
Datasheet |
AECS | Bulk | Active | Cellular, Navigation | Wide Band | 1.079MHz, 92MHz, 829MHz, 1.5815GHz, 2.2GHz | 529kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz | Module | 5 | 1.5, 2, 2.5, 3 | - | 19dB, 8dB, 3dBi, 3.5dBi, 2dBic | - | Cable - 3m, LNA | FME Female (1), SMA Male (3) | IP67 | - | - | Panel | 2.713" (68.90mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE |
|
MA2330.A.ACT.0023IN1 ADHESIVE MOUNT 300MM RG-174 |
48 |
|
Datasheet |
- | Bag | Active | Navigation, WiFi | Wide Band | 98MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 5.415GHz | 88MHz ~ 108MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz | Module | 6 | - | -10dB, -27.8dB, -10dB | 3.3dBi, 4dBi, 3.7dBi | - | Cable - 300mm | SMB, Fakra | IP21 | - | - | Surface Mount | 0.585" (14.86mm) | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
GPSLPMB403RF ANT 829MHZ/2.2GHZ MODULE ADH |
30 |
|
Datasheet |
Jaguar | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 4.9GHz ~ 5.9GHz | Module | 3 | 2.2 | - | 5.4dBi | - | Cable - 600mm | RP-SMA Male (1), RP-TNC Male (1), SMA Male (1), TNC Male (1) | IP67 | - | - | Adhesive | 0.949" (24.10mm) | Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi |
|
|
TS.15.0111GPS/GLONASS/GALILEO/BEIDOU PASSI |
85 |
|
Datasheet |
Accura | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | - | 1.561GHz ~ 1.603GHz | Module | 8 | 2.1 | - | 1.19dBi, 2.29dBi, 1.4dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.362" (60.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
PD617-4200S143ANT DAS DIR 4G LTE 5G CBRS SISO |
30 |
|
Datasheet |
Directional DAS | Box | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.45GHz, 2.755GHz, 4GHz | 617MHz ~ 824MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 3.8GHz, 3.8GHz ~ 4.2GHz | Module | 5 | 1.7, 1.8, 2 | - | 6dBi, 6dBi, 8dBi, 9dBi, 9dBi | 50 W | Cable - 300mm | 4.3/10 - Female | IP50 | - | - | Wall Mount | 2.402" (61.00mm) | 4G, 5G |
|
|
L000322-023-PORT - 2X 4G/5G,1X GNSS ANTENN |
45 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 729MHz, 860MHz, 1.5825GHz, 2.19GHz, 3.55GHz | 698MHz ~ 760MHz, 760MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 5 | 1.75, 2 | - | 2dBi, 2.8dBi, 3dBi, 3dBi, 3dBi | 20 W | Cable - 1m, LNA | SMA Female (3) | IP67, IP69K | - | - | Stud | 1.969" (50.00mm) | 4G, 5G, GNSS, Wi-Fi |
|

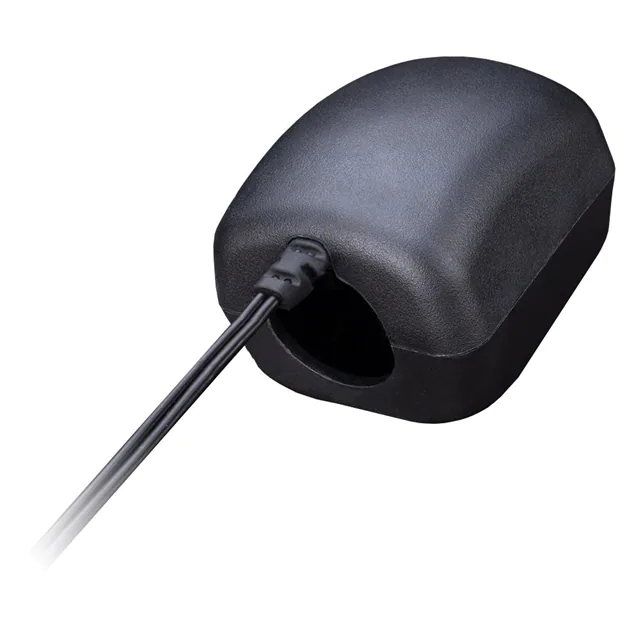

MA5022.A.AX.002MIRROR RAIL MOUNT 300MM RG-174 : |
50 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 2.3325GHz | 1.559GHz ~ 1.563GHz , 1.574GHz ~ 1.576GHz , 2.32GHz ~ 2.345GHz | Dome | 3 | - | -10dB, -10dB | 3dBi, 5.4dBi | - | Cable - 300mm | SMB, Fakra | IP67 | - | - | Panel Mount | 0.512" (13.00mm) | GPS |
|
|
YEMM517J1AANTENNA |
99 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MHO5GFR1NM5G FR1 600MHZ-6GHZ OMNI ANTENNA |
165 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 628.5MHz, 768MHz, 928MHz, 1.855GHz, 2.2GHz, 2.55GHz, 3.75GHz, 5.412GHz | 617MHz ~ 640MHz, 640MHz ~ 896MHz, 896MHz ~ 960MHz, 1.71GHz ~ 2GHz, 2GHz ~ 2.4GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz | Whip, Straight | 8 | 2.5, 2.7, 3, 3.1, 3.5, 4.5 | - | 1.81dBi, 2.38dBi, 1.81dBi, 3.43dBi, 3.68dBi, 3.17dBi, 5.87dBi, 4.33dBi | 25 W | - | N Type Male | IP67 | - | - | Bracket Mount | 9.382" (238.30mm) | 5G |
|
|
A.85.A.101111BOLT - LOW PROFILE HIGH PRECISIO |
44 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.587GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.581GHz, 1.569GHz ~ 1.587GHz, 1.569GHz ~ 1.605GHz | Module | 5 | - | - | 3.7dBi, 0.52dBi, 2.72dBi, 2.72dBi, 2.83dBi | 5 W | Cable - 1m, LNA, Filter | SMA Male | IP65 | - | - | Screw Mount | 1.000" (25.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
