Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4151TRDIODE GEN PURP 75V 150MA DO35 |
69,323 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 50 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
BAV21-TAPDIODE GEN PURP 200V 250MA DO35 |
68,822 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | Standard | 200 V | 250mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 150 V | 1.5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
LL4148-GS18DIODE GEN PURP 75V 300MA SOD80 |
62,397 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | Standard | 75 V | 300mA | 1 V @ 50 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOD-80 MiniMELF | -65°C ~ 175°C |
|
|
1N914TRDIODE GEN PURP 100V 200MA DO35 |
60,090 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-35 | -55°C ~ 175°C |
|

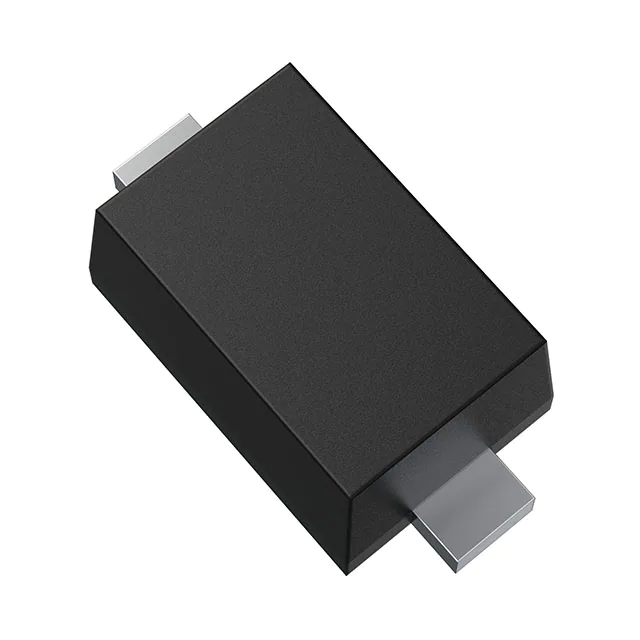

BAS516,L3FDIODE GEN PURP 100V 250MA ESC |
59,746 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | Standard | 100 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 3 ns | 200 nA @ 80 V | 0.35pF @ 0V, 1MHz | - | - | Surface Mount | ESC | 150°C (Max) |
|
1N914BTRDIODE GEN PURP 100V 200MA DO35 |
58,069 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-35 | -55°C ~ 175°C |
|
BAS20LT1GDIODE GP 200V 200MA SOT23-3 |
58,002 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 200 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 150 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 (TO-236) | -55°C ~ 150°C |
|
FDLL914DIODE GEN PURP 100V 200MA SOD80 |
57,897 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOD-80 | -55°C ~ 175°C |
|
BAS16HT3GDIODE GEN PURP 100V 200MA SOD323 |
55,748 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | -55°C ~ 150°C |
|
1N4448W-7-FDIODE GEN PURP 75V 250MA SOD123 |
55,566 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | Standard | 75 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 2.5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | -65°C ~ 150°C |
|
1N4448WSDIODE GEN PURP 75V 150MA SOD323F |
55,098 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323F | -55°C ~ 150°C |
|
1N4148W RHGDIODE GP 100V 150MA SOD123F |
54,615 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | Standard | 100 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123F | -65°C ~ 150°C |
|
1N4454DIODE GEN PURP 50V 200MA DO35 |
53,473 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-35 | 175°C (Max) |
|
BAT54W,135DIODE SCHOTTKY 30V 200MA SOT323 |
53,187 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOT-323 | 150°C (Max) |
|
|
1N4148-TAPDIODE GEN PURP 75V 300MA DO35 |
52,878 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | Standard | 75 V | 300mA | 1 V @ 10 mA | Fast Recovery =< 500ns, > 200mA (Io) | 8 ns | 25 nA @ 20 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
BAS16WT1GDIODE GP 100V 200MA SC70-3 |
50,685 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SC-70-3 (SOT323) | -55°C ~ 150°C |
|
MCL4148-TR3DIODE GP 75V 150MA MICROMELF |
50,428 |
|
Datasheet |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 8 ns | 25 nA @ 20 V | 4pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | MicroMELF | 175°C (Max) |
|
BAS316ZDIODE GEN PURP 100V 250MA SOD323 |
48,620 |
|
Datasheet |
BAS16 | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 100 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 500 nA @ 80 V | 1.5pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323 | 150°C (Max) |
|
1N4936-TDIODE GEN PURP 400V 1A DO41 |
47,585 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.2 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 5 µA @ 400 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|
1N4148W_R1_00001SOD-123, SWITCHING |
46,195 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | 1.5pF @ 0V, 1MHz | - | - | Surface Mount | SOD-123 | -55°C ~ 150°C |
Single Diodes Electronic Components
Explore Single Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
