Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCDD08120G1_L2_000011200V SIC SCHOTTKY BARRIER DIODE |
2,137 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 8A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 1200 V | 418pF @ 1V, 1MHz | - | - | Surface Mount | TO-252AA | -55°C ~ 175°C |
|

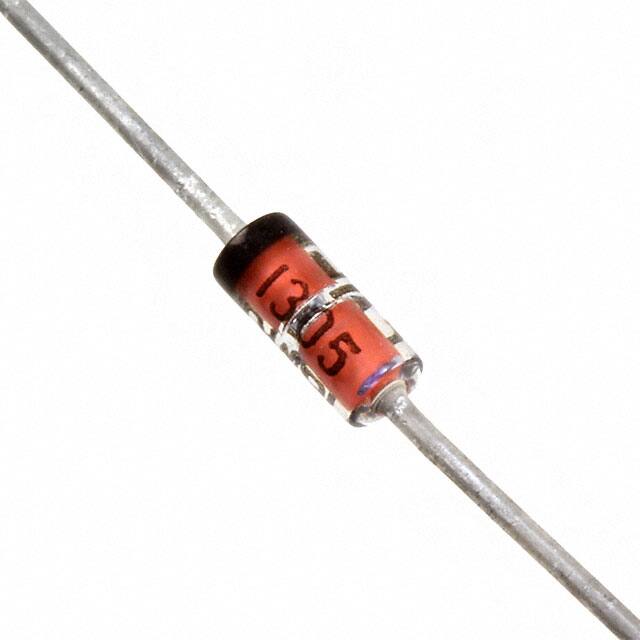

JANTX1N5712-1DIODE SCHOTTKY 20V 750MA DO35 |
154 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 20 V | 750mA | 1 V @ 35 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
C3D16065D1DIODE SIL CARBIDE 650V TO247-3 |
651 |
|
Datasheet |
Z-Rec® | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 43A | 1.8 V @ 16 A | No Recovery Time > 500mA (Io) | 0 ns | 95 µA @ 650 V | 740pF @ 0V, 1MHz | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
VS-40HF60DIODE GEN PURP 600V 40A DO203AB |
139 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
FFSH10120A-F085DIODE SIL CARB 1.2KV 17A TO247-2 |
895 |
|
Datasheet |
- | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 17A | - | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 612pF @ 1V, 100kHz | Automotive | AEC-Q101 | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
FFSB3065B-F085DIODE SIL CARBIDE 650V 73A D2PAK |
4,032 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 650 V | 73A | 1.7 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 650 V | 1280pF @ 1V, 100kHz | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) | -55°C ~ 175°C |
|
|
FFSB10120A-F085DIODE SIL CARB 1.2KV 21A D2PAK |
197 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 21A | 1.75 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 612pF @ 1V, 100kHz | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) | -55°C ~ 175°C |
|
FFSB20120ADIODE SCHOTTKY 1.2KV 32A D2PAK-3 |
503 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 32A | 1.75 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 1200 V | 1220pF @ 1V, 100KHz | - | - | Surface Mount | TO-263 (D2PAK) | -55°C ~ 175°C |
|
|
NDSH10170ADIODE SIL CARB 1.7KV 16A TO247-2 |
374 |
|
Datasheet |
- | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 16A | 1.75 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1700 V | 856pF @ 1V, 100kHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GP3D010A170BDIODE SIL CARB 1.7KV 39A TO247-2 |
360 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 39A | 1.65 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1700 V | 699pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
1N5804USDIODE GEN PURP 100V 1A D-5A |
1,182 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
VS-60APF12-M3DIODE GEN PURP 1.2KV 60A TO247AC |
627 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Standard | 1200 V | 60A | 1.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC | -40°C ~ 150°C |
|
|
DSEP60-06ADIODE GEN PURP 600V 60A TO247AD |
300 |
|
Datasheet |
HiPerFRED™ | TO-247-2 | Tube | Active | Standard | 600 V | 60A | 2.04 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 650 µA @ 600 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
JANTX1N5551USDIODE GEN PURP 400V 5A B SQ-MELF |
155 |
|
Datasheet |
- | SQ-MELF, B | Bulk | Active | Standard | 400 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/420 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
STPSC20H12DDIODE SIL CARB 1.2KV 20A TO220AC |
806 |
|
Datasheet |
- | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 20A | 1.5 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 120 µA @ 1200 V | 1650pF @ 0V, 1MHz | - | - | Through Hole | TO-220AC | -40°C ~ 175°C |
|
GD30MPS12HDIODE SIL CARB 1.2KV 55A TO247-2 |
503 |
|
Datasheet |
SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 55A | 1.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 1200 V | 1101pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
1N1190ARDIODE GEN PURP REV 600V 40A DO5 |
869 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 40A | 1.1 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 190°C |
|
|
SCS220AJTLLDIODE SIL CARB 650V 20A TO263AB |
1,713 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.55 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 600 V | 730pF @ 1V, 1MHz | - | - | Surface Mount | TO-263AB | 175°C (Max) |
|
|
GD30MPS12J-TRDIODE SIL CARB 1.2KV 59A TO263-7 |
2,036 |
|
Datasheet |
SiC Schottky MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 59A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1200 V | 1101pF @ 1V, 1MHz | - | - | Surface Mount | TO-263-7 | -55°C ~ 175°C |
|
|
VS-1N2128ADIODE GEN PURP 50V 60A DO203AB |
102 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 60A | 1.3 V @ 188 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
