Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5822/TRDIODE SCHOTTKY 40V 3A |
5,608 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | - | - | - | Through Hole | B, Axial | -65°C ~ 125°C |
|
JANTX1N6620USDIODE GEN PURP 220V 2A D-5A |
6,531 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | Standard | 220 V | 2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N6629DIODE GEN PURP 880V 1.4A |
5,833 |
|
Datasheet |
- | E, Axial | Bulk | Active | Standard | 880 V | 1.4A | 1.4 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 880 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | - | -65°C ~ 150°C |
|
|
JANTX1N6620UDIODE GEN PURP 200V 1.2A D-5A |
7,571 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N6630DIODE GEN PURP 900V 3A E AXIAL |
2,358 |
|
- |
- | E, Axial | Bulk | Active | Standard | 900 V | 3A | 1.7 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 990 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | E, Axial | -65°C ~ 175°C |
|
|
JANTX1N6623DIODE GEN PURP 880V 1A AXIAL |
3,076 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 880 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 880 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Through Hole | A, Axial | -65°C ~ 150°C |
|
1N6075DIODE GEN PURP 150V 850MA AXIAL |
6,305 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 150 V | 850mA | 2.04 V @ 9.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 150 V | - | - | - | Through Hole | A, Axial | -65°C ~ 155°C |
|
|
JANTX1N6631DIODE GEN PURP 2A E AXIAL |
4,300 |
|
- |
- | E, Axial | Bulk | Active | Standard | - | 2A | 1.95 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1000 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | E, Axial | -65°C ~ 175°C |
|
1N6625USDIODE GEN PURP 1.1KV 1A A-MELF |
8,584 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 1 µA @ 1100 V | 10pF @ 10V, 1MHz | - | - | Surface Mount | A-MELF | -65°C ~ 150°C |
|
|
JANTX1N6623/TRDIODE GEN PURP 880V 1A |
4,020 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 880 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 880 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Through Hole | A, Axial | -65°C ~ 150°C |
|
JANTX1N6623US/TRDIODE GEN PURP 880V 1A D-5A |
8,350 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 880 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 880 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTX1N6631/TRDIODE GEN PURP 2A E AXIAL |
3,690 |
|
- |
- | E, Axial | Tape & Reel (TR) | Active | Standard | - | 2A | 1.95 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1000 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | E, Axial | -65°C ~ 175°C |
|
|
JANTX1N6623U/TRDIODE GP 800V 1.5A A SQ-MELF |
7,402 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 800 V | 1.5A | 1.8 V @ 1.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 800 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
1N6625US/TRDIODE GEN PURP 1.1KV 1A A-MELF |
7,939 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 1 µA @ 1100 V | 10pF @ 10V, 1MHz | - | - | Surface Mount | A-MELF | -65°C ~ 150°C |
|
|
1N6624US/TRDIODE GEN PURP 990V 1A D-5A |
7,488 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 900 V | - | - | - | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
1N6624U/TRDIODE GP 990V 1A A SQ-MELF |
3,623 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 990 V | - | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
LSIC2SD120E30CCDIODE SIL CARB 1.2KV 44A TO247AD |
9,654 |
|
Datasheet |
Gen2 | TO-247-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 44A | 1.8 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 920pF @ 1V, 1MHz | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|

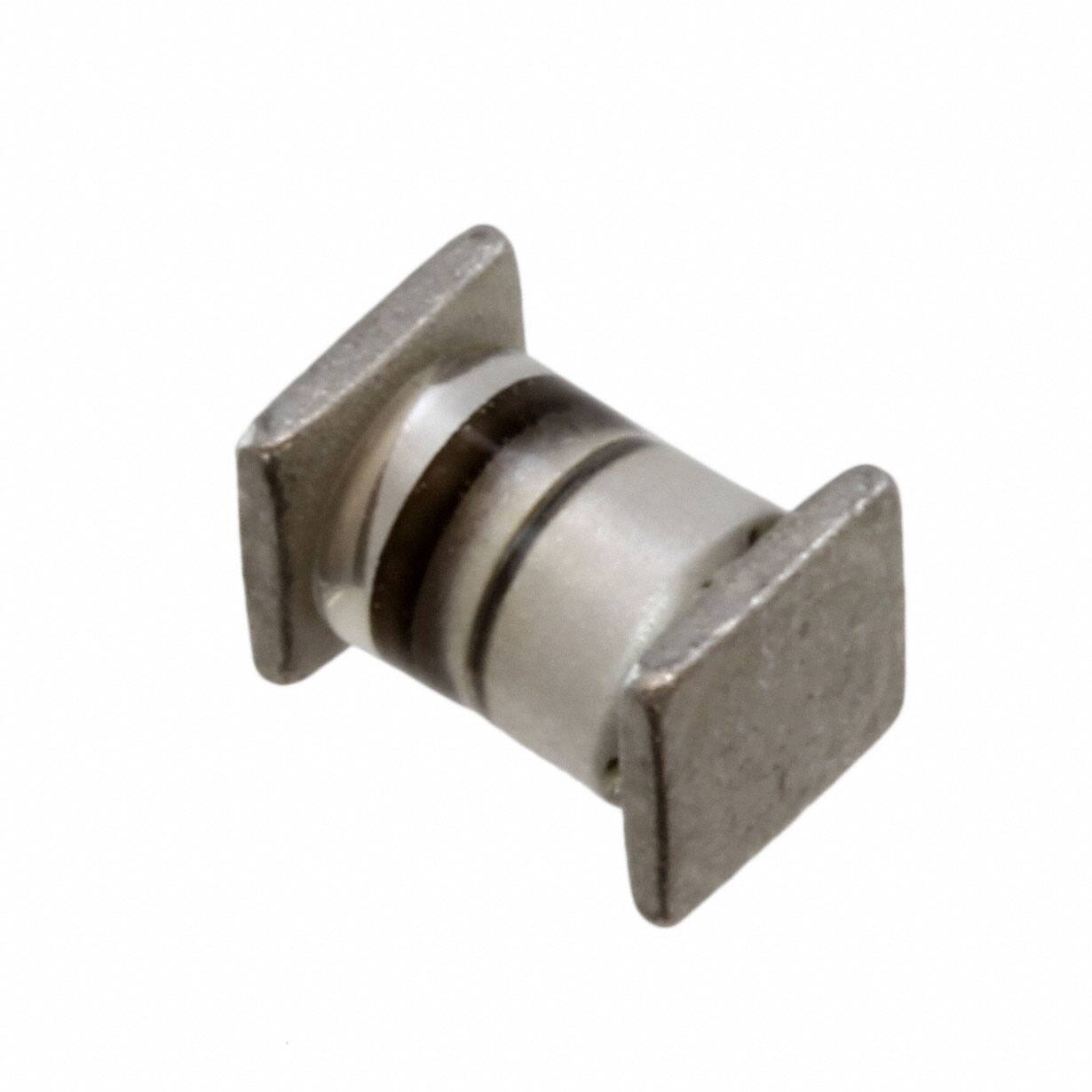

JAN1N6627USDIODE GEN PURP 440V 1.75A D-5B |
3,400 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Discontinued at Digi-Key | Standard | 440 V | 1.75A | 1.35 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JANTX1N6620US/TRDIODE GEN PURP 220V 2A D-5A |
2,039 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 220 V | 2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTX1N6630/TRDIODE GEN PURP 900V 3A E AXIAL |
5,997 |
|
- |
- | E, Axial | Tape & Reel (TR) | Active | Standard | 900 V | 3A | 1.7 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 990 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Through Hole | E, Axial | -65°C ~ 175°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
